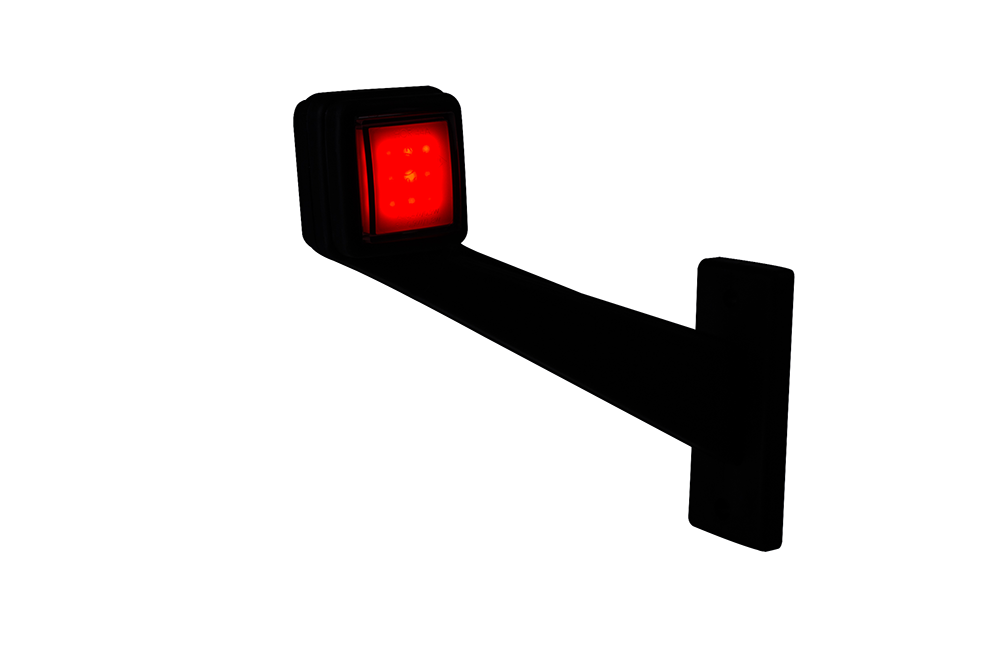

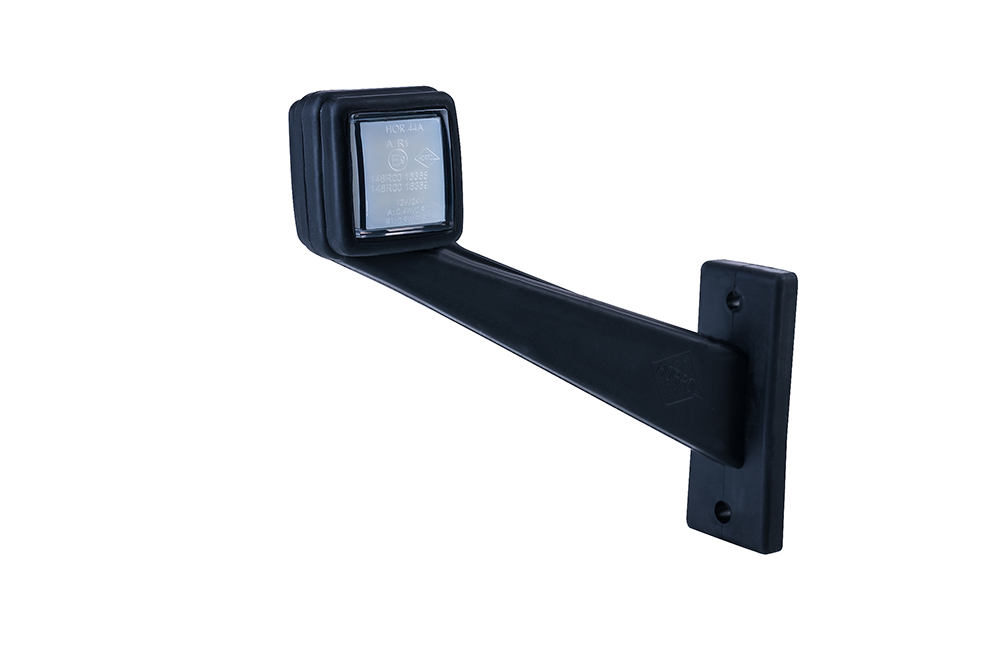

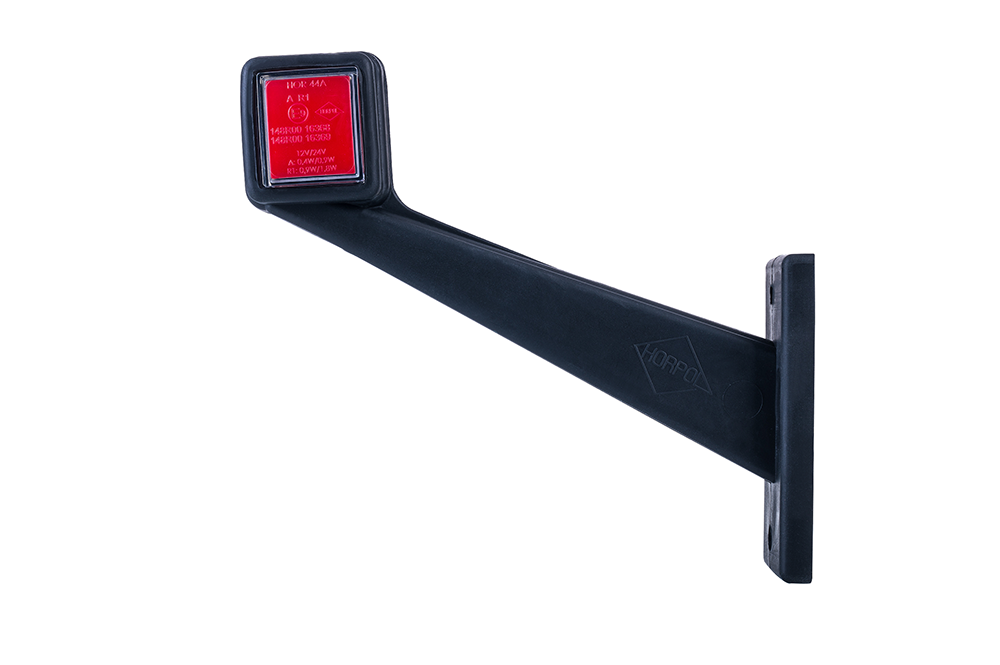

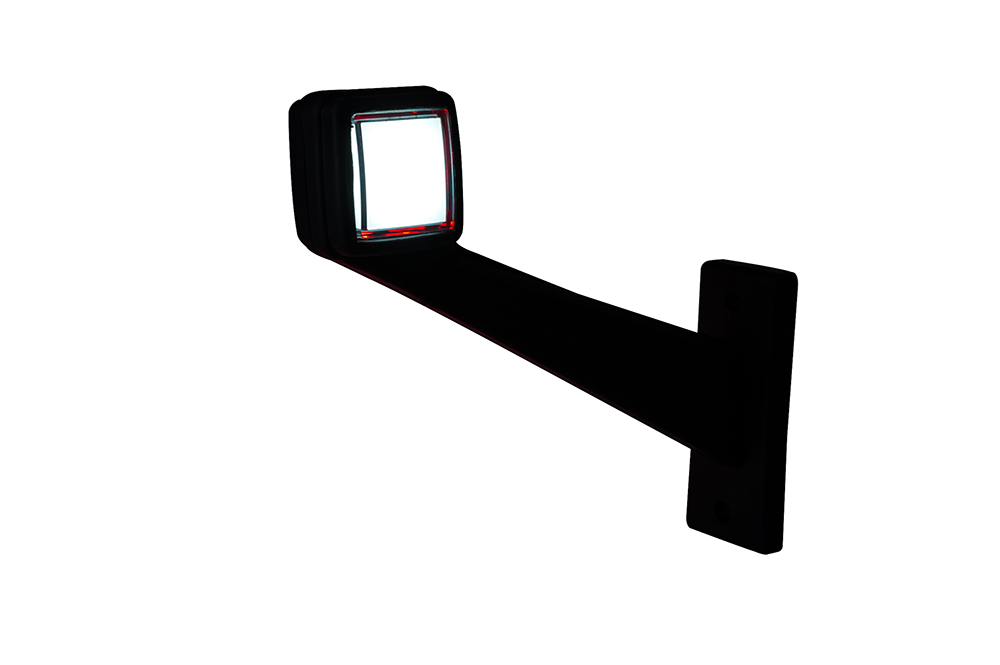

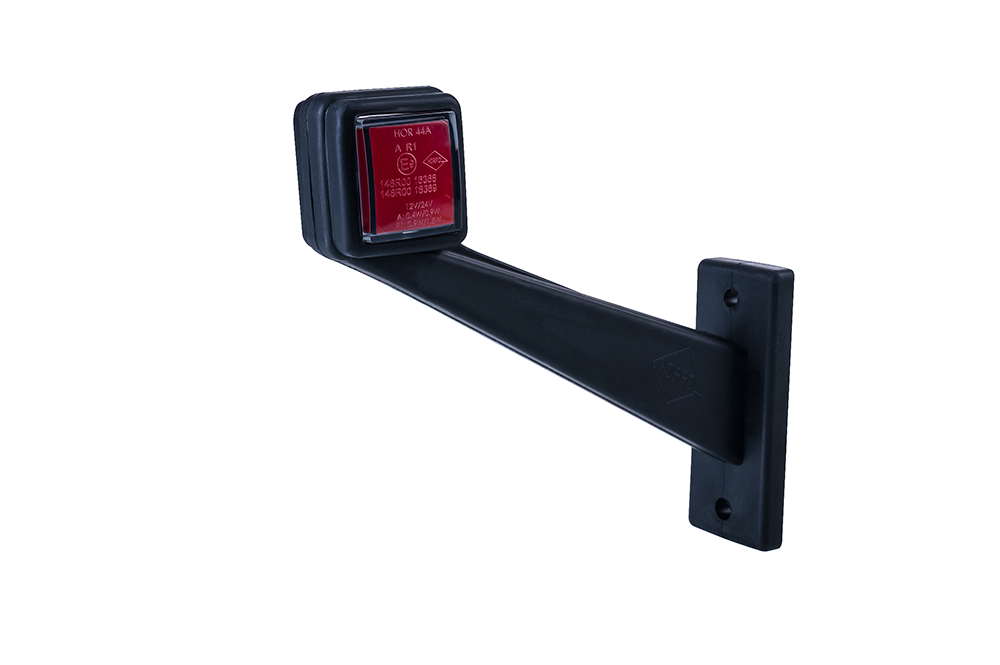

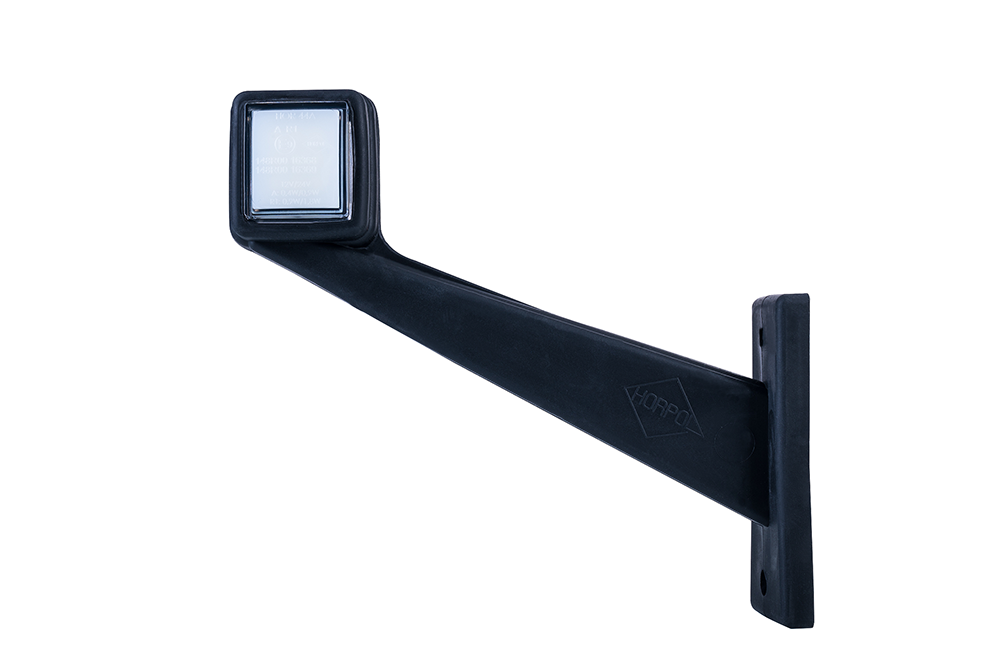

LD 3118/P is a marker light on a long diagonal arm that comes with a flexible hanger. It is specifically designed for mounting on the right side of the vehicles, ranging from small trailers to trucks and semi-trailers.

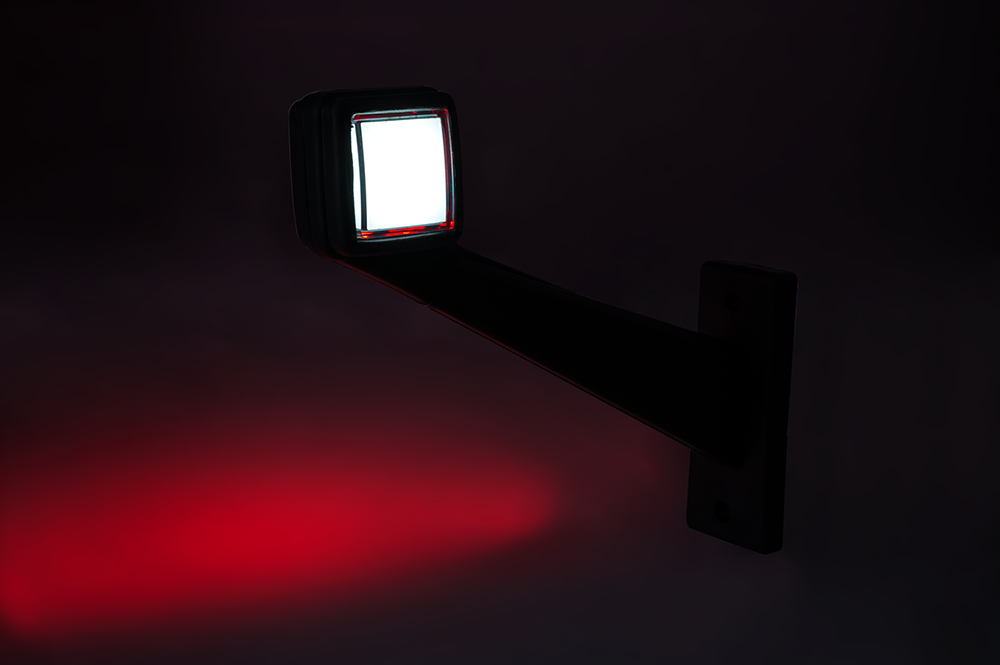

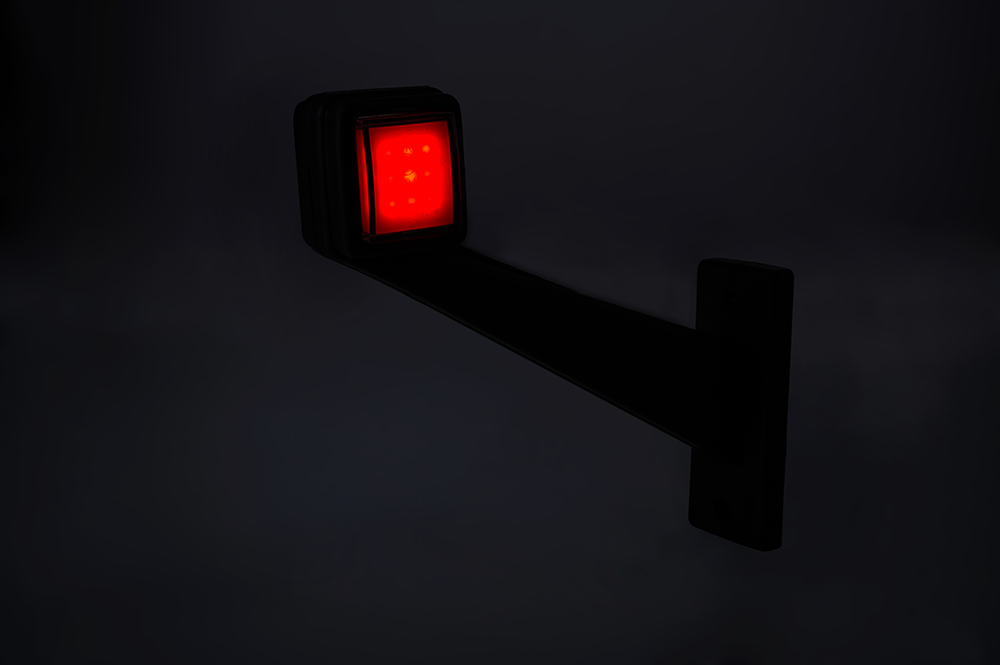

The lamp emits a bright neon light and fulfills the most important functions.

Lamp functions:
– front marker light, white light color (0,4/0,9 W)
– rear marker light, red light color (0,9/1,8 W)

The lamp operates on a universal voltage of 12/24 V and is characterized by low power consumption. Only branded diodes are used for production, which definitely distinguish the quality of lighting and attractively emphasize the outline of a moving vehicle. Product is fully hermetic (ingress protection rating IP 68), and the operating temperature range is from -30 degrees C to +50 degrees C.

Ensure your safety on the road! Identify your vehicle with LED new arrivals by Horpol!

Dane techniczne

Light category

marker

Side

right

Supply voltage

12/24 V

Front clearance light

yes

Rear clearance light

yes

Operating temperature range

from -30°C to +50°C

Arm

yes

Light group

HOR 44A

Cable

2×0,75 mm2; cable length 0,6 m

LED light

yes

LED quantity

Ingress protection rating

IP 68

LD 3118/P

Stalk marker light

Pliki do pobrania

Cała zawartość strony (LD 3118/P.zip) Marker-light-LD-3118-technical-drawings (Marker-light-LD-3118-technical-drawings.pdf) Marker-light-HOR-44A_R1-drawings (Marker-light-HOR-44A_R1-drawings.pdf) Marker-light-HOR-44A_R1-approval (Marker-light-HOR-44A_R1-approval.pdf) Marker-light-HOR-44A_A-drawings (Marker-light-HOR-44A_A-drawings.pdf) Marker-light-HOR-44A_A-approval (Marker-light-HOR-44A_A-approval.pdf) Marker-light-HOR-44A-approval-R10 (Marker-light-HOR-44A-approval-R10.pdf)
