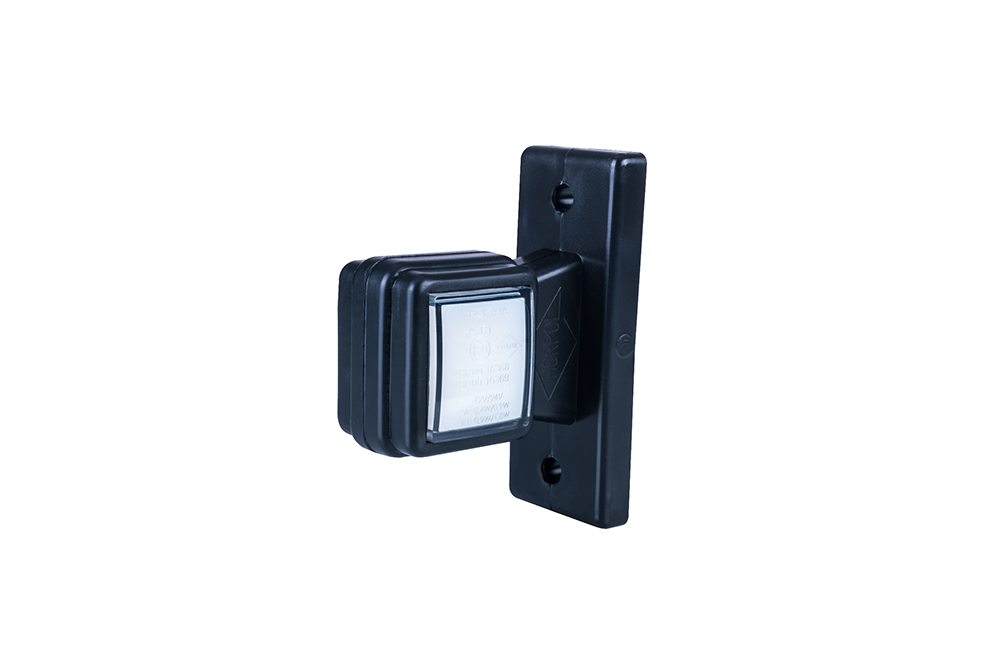

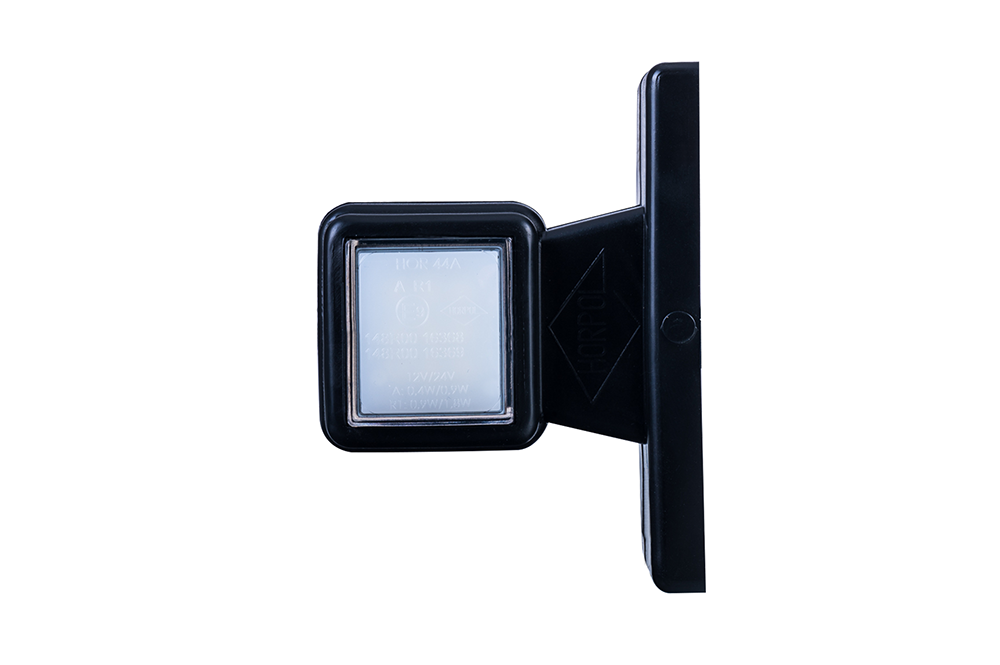

LD 3116 is a marker light on a short straight arm, with compact dimensions and wide range of applications (from small trailers to trucks and semi-trailers).

The lamp is universal in assembly, it can be installed both on the left and right side of the vehicle. The lamp emits a bright neon light and fulfills the most important functions.

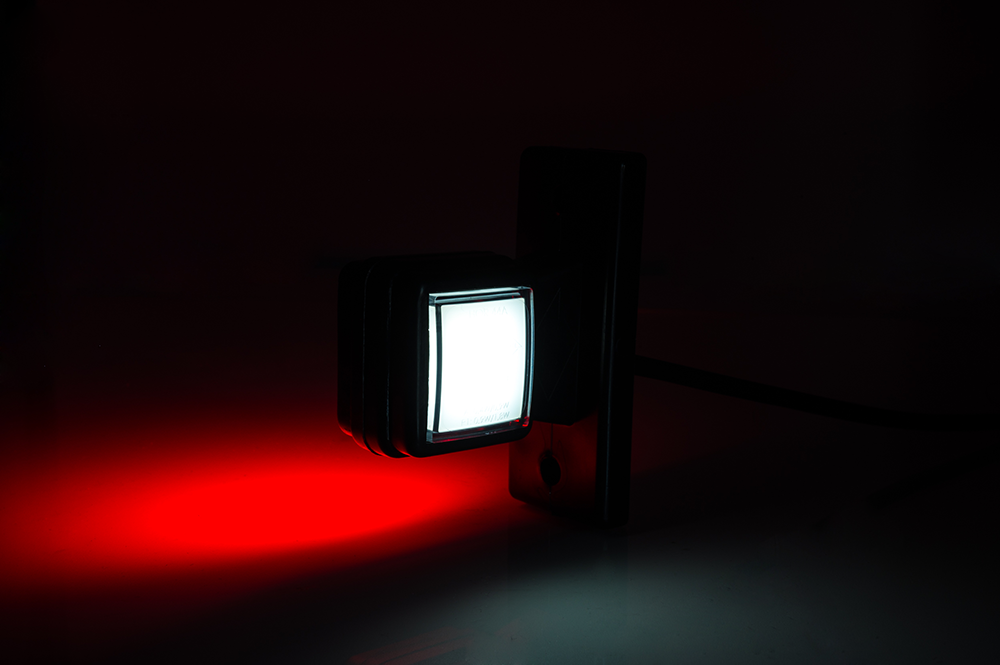

Lamp functions:

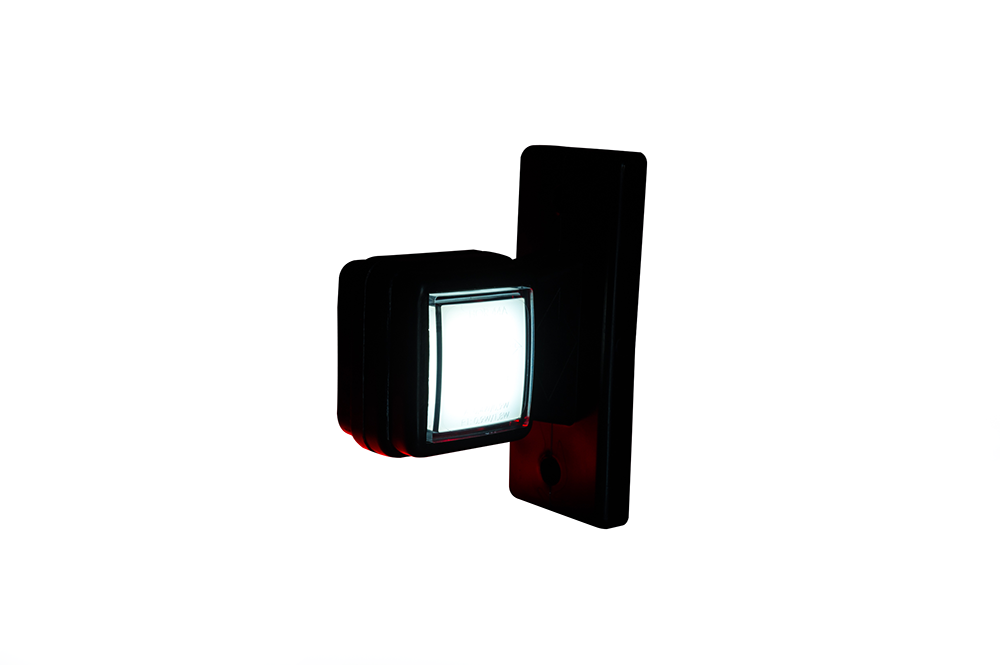

– front marker light, white light color (0,4/0,9 W)

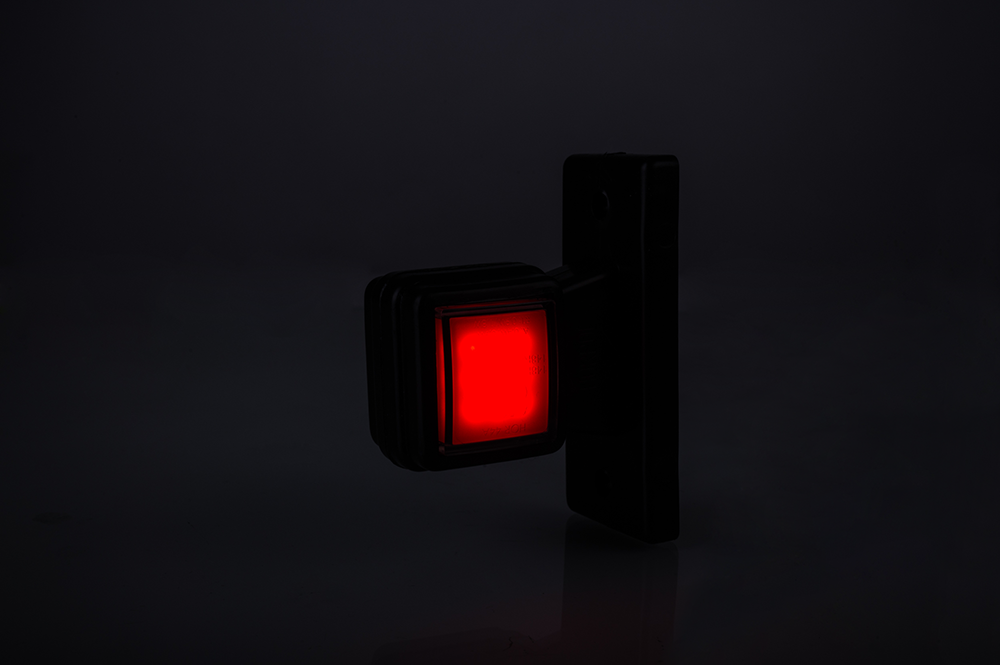

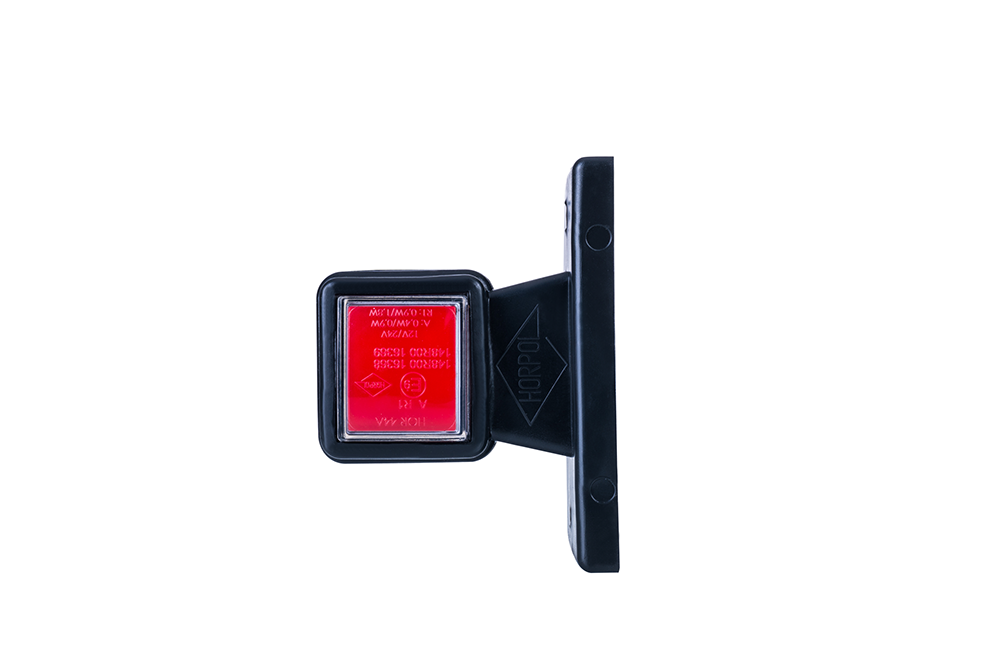

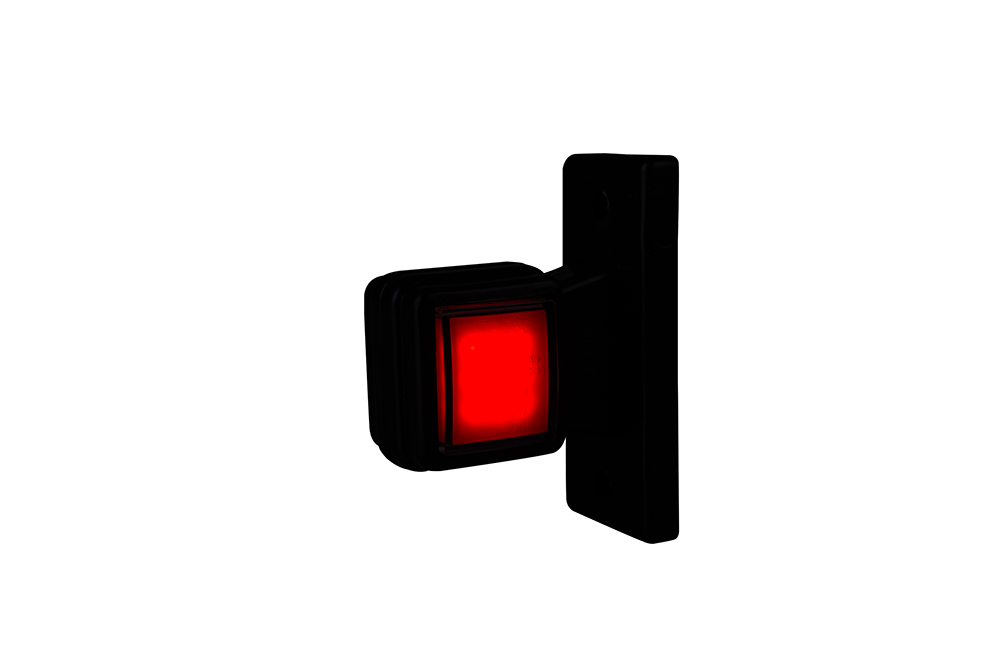

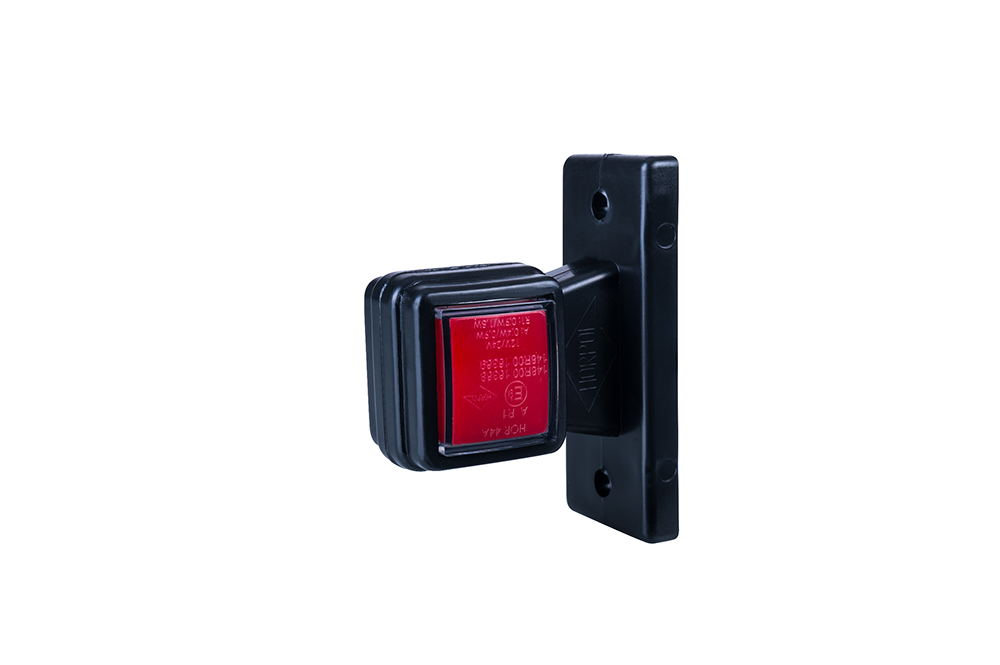

– rear marker light, red light color (0,9/1,8 W)

The lamp operates on a universal voltage of 12/24 V and is characterized by low power consumption. Only branded diodes are used for production, which definitely distinguish the quality of lighting and attractively emphasize the outline of a moving vehicle. Product is fully hermetic (ingress protection rating IP 68), and the operating temperature range is from -30 degrees C to +50 degrees C.

Ensure your safety on the road! Identify your vehicle with LED new arrivals by Horpol!

Dane techniczne

Light group

HOR 44A

Light category

marker

Ingress protection rating

IP 68

LED light

yes

LED quantity

Supply voltage

12/24 V

Cable

2×0,75 mm2; cable length 0,5 m

Side

universal

Front clearance light

yes

Rear clearance light

yes

Arm

yes

Operating temperature range

from -30°C to +50°C

LD 3116

Stalk marker light

Pliki do pobrania

Cała zawartość strony (LD 3116.zip) Marker-light-HOR-44A_R1-drawings (Marker-light-HOR-44A_R1-drawings.pdf) Marker-light-HOR-44A_R1-approval (Marker-light-HOR-44A_R1-approval.pdf) Marker-light-HOR-44A_A-drawings (Marker-light-HOR-44A_A-drawings.pdf) Marker-light-HOR-44A_A-approval (Marker-light-HOR-44A_A-approval.pdf) Marker-light-HOR-44A-approval-R10 (Marker-light-HOR-44A-approval-R10.pdf) Marker-light-LD-3116-technical-drawings (Marker-light-LD-3116-technical-drawings.pdf)
