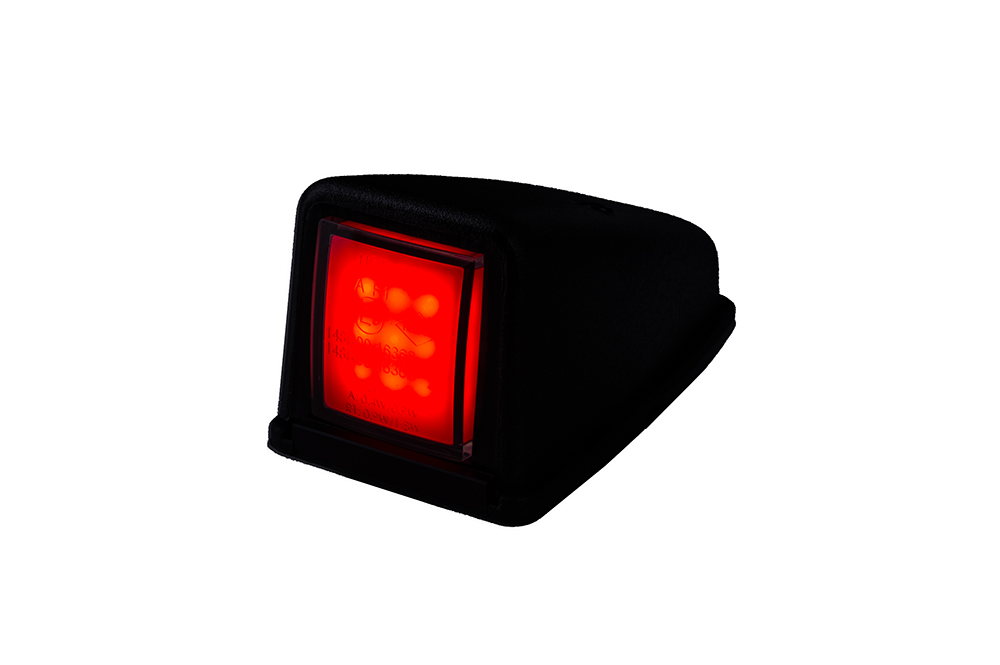

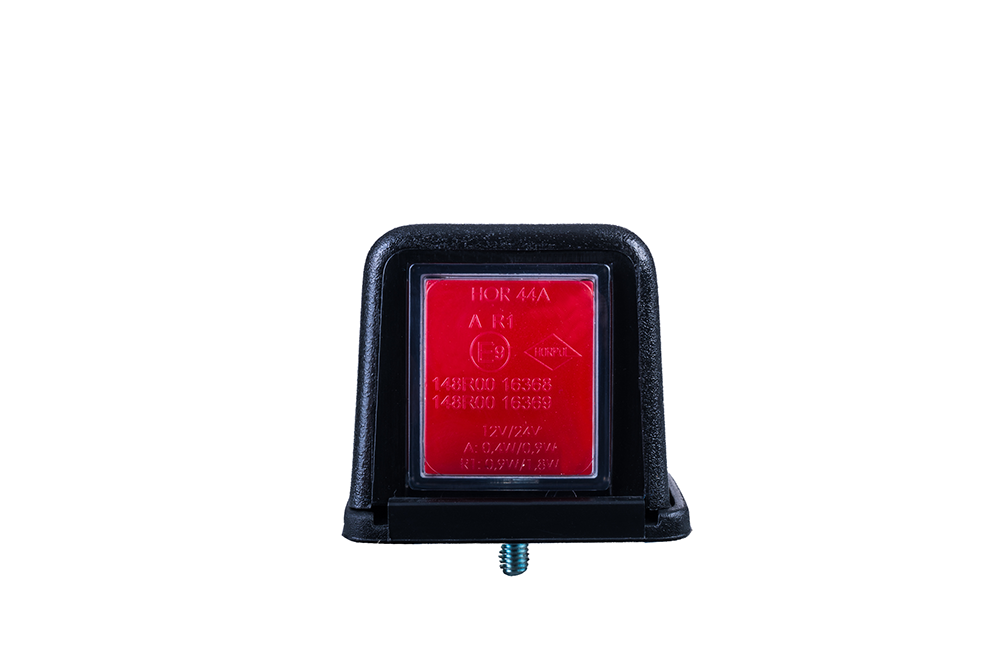

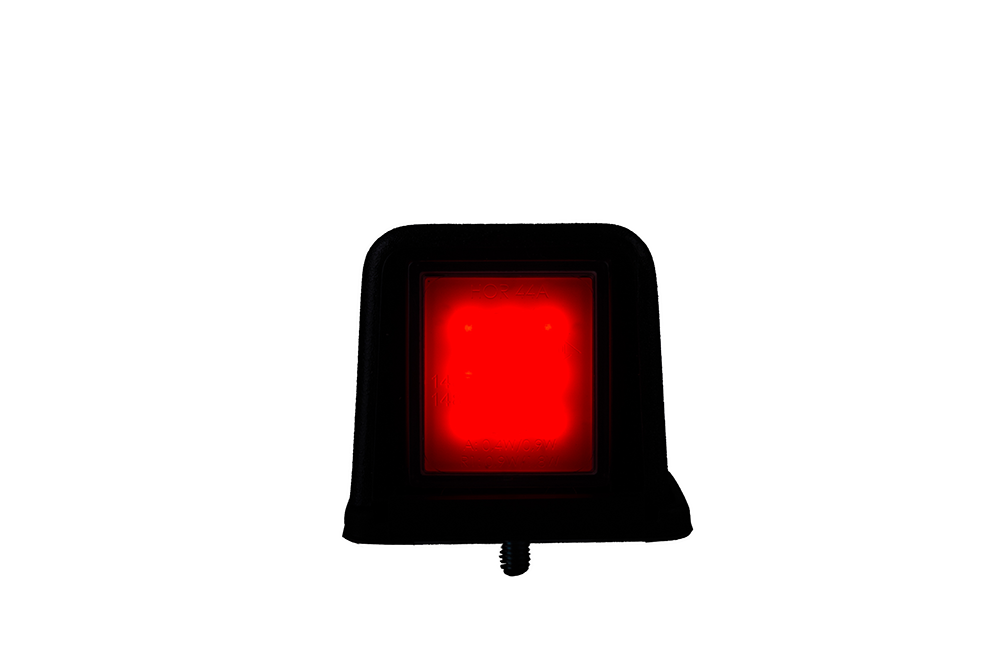

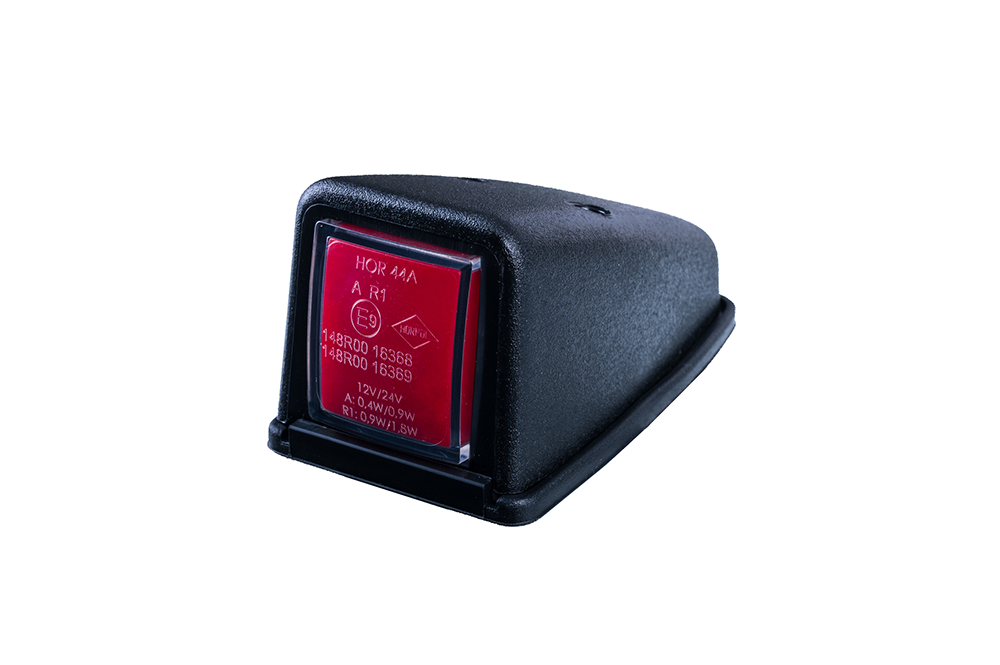

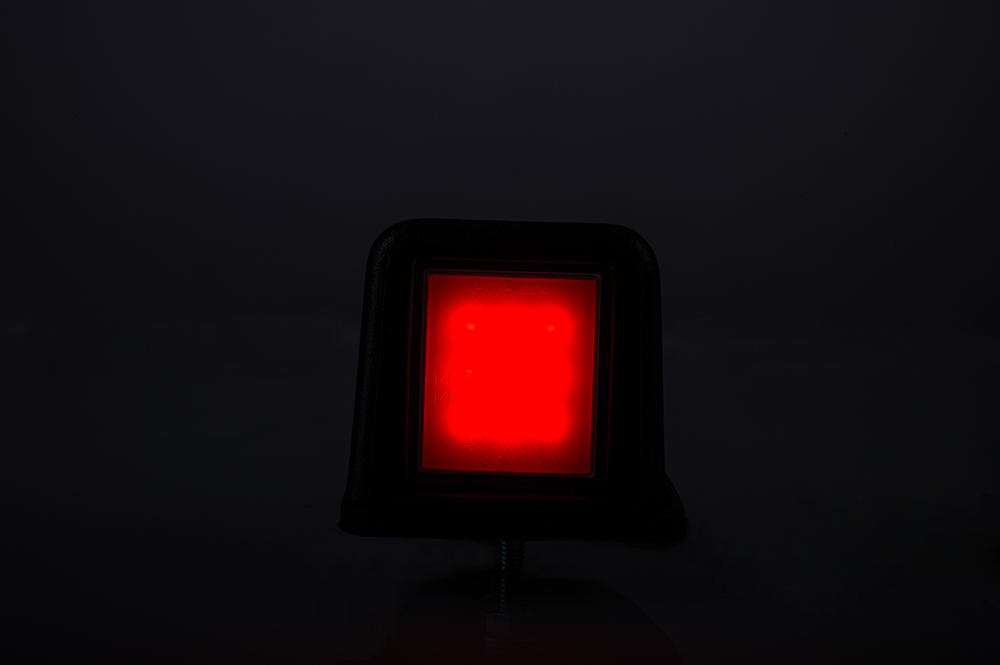

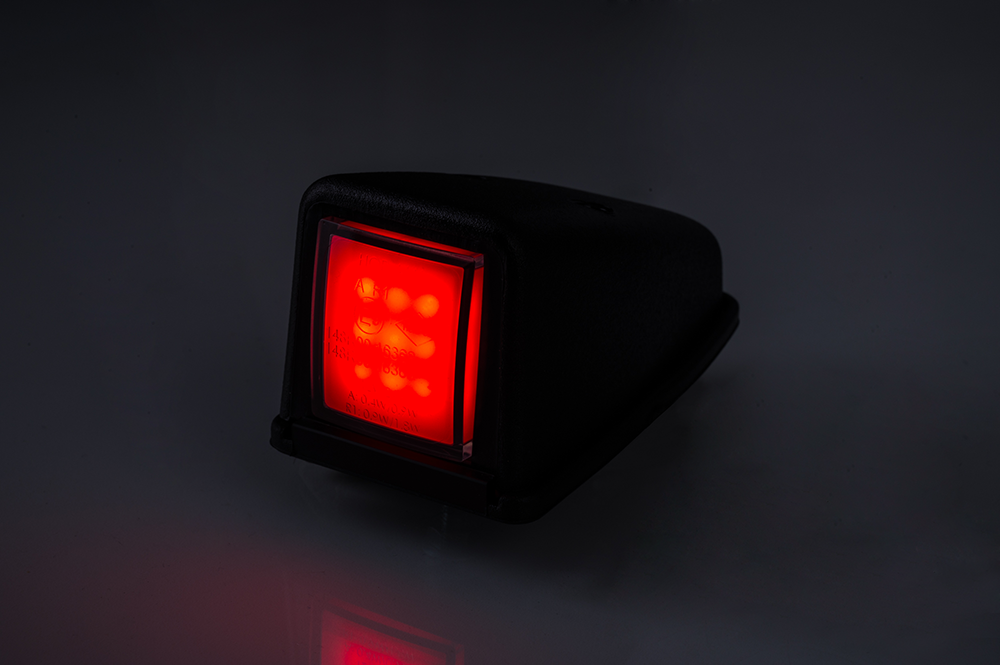

LD 3113 is a corner marker lamp, designed to be mounted on the cab roof. It is intented for use in buses, coaches, vans and special vehicles.

Roof lamp LD 3113 is universal in assembly, it can be installed both on the left and right side of the vehicle, vertically and horizontally.

The lamp emits a bright red neon light (0,9/1,8 W). The lamp operates on a universal voltage of 12/24 V and is characterized by low power consumption. Only branded diodes are used for production, which definitely distinguish the quality of lighting and attractively emphasize the outline of a moving vehicle. Product is fully hermetic (ingress protection rating IP 68), and the operating temperature range is from -30 degrees C to +50 degrees C.

Ensure your safety on the road! Identify your vehicle with LED new arrivals by Horpol!

Dane techniczne

Light colour

red

Light group

HOR 44A

Light category

marker

Ingress protection rating

IP 68

LED light

yes

LED quantity

Power rating

0,9/1,8 W

Supply voltage

12/24 V

Cable

2×0,75 mm2; cable length 0,25 m

Side

universal

Rear clearance light

yes

Operating temperature range

from -30°C to +50°C

LD 3113

Roof marker light
