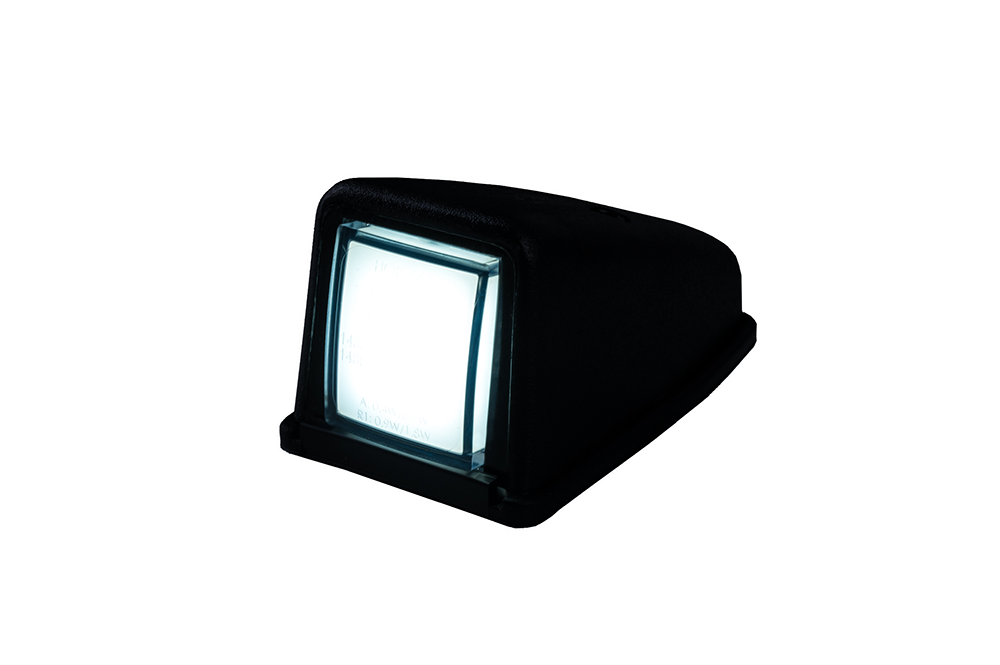

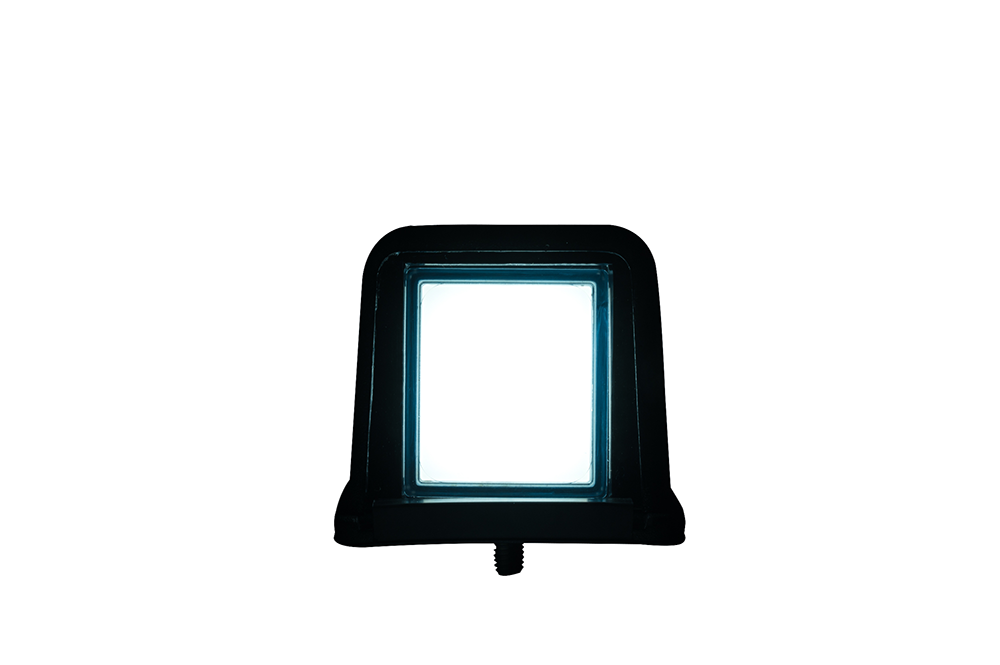

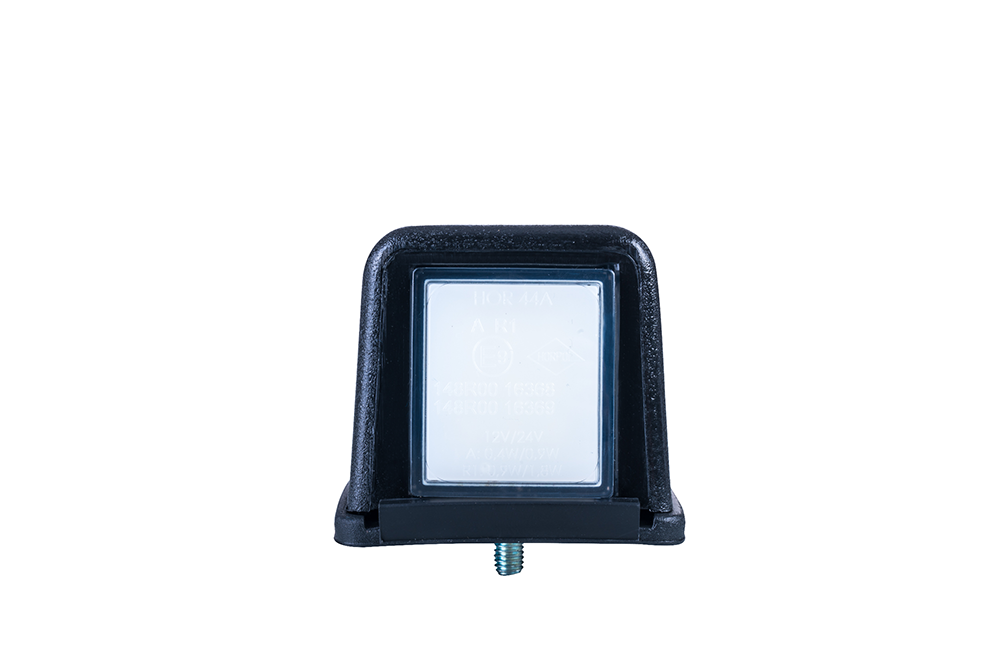

LD 3111 is a corner marker lamp, designed to be mounted on the cab roof. It is intented for use in buses, coaches, vans and special vehicles.

Roof marker lamp LD 3111 is universal in assembly, it can be installed both on the left and right side of the vehicle, vertically and horizontally.

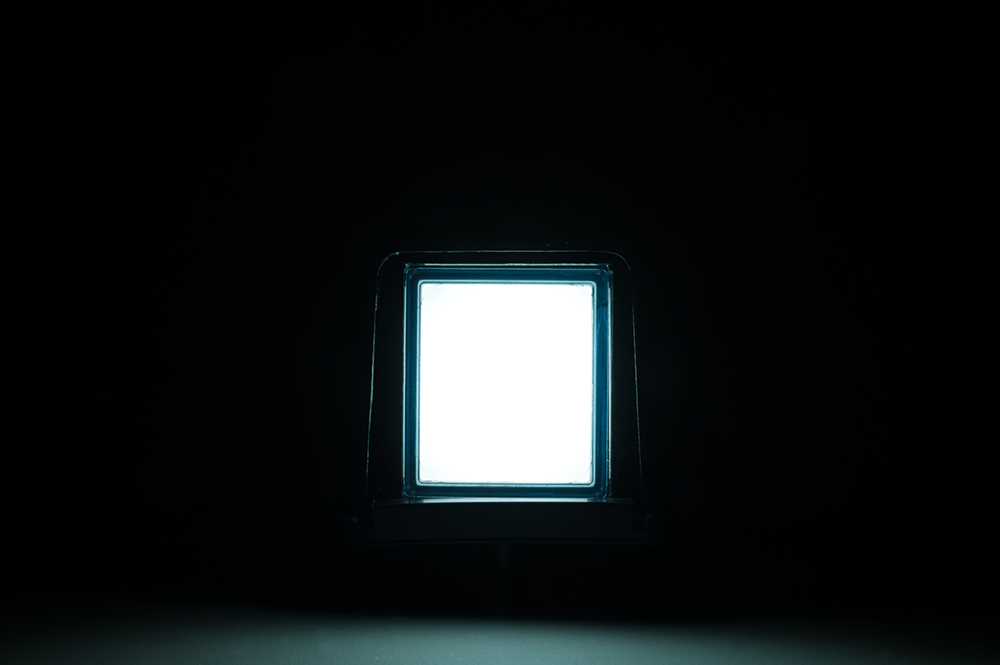

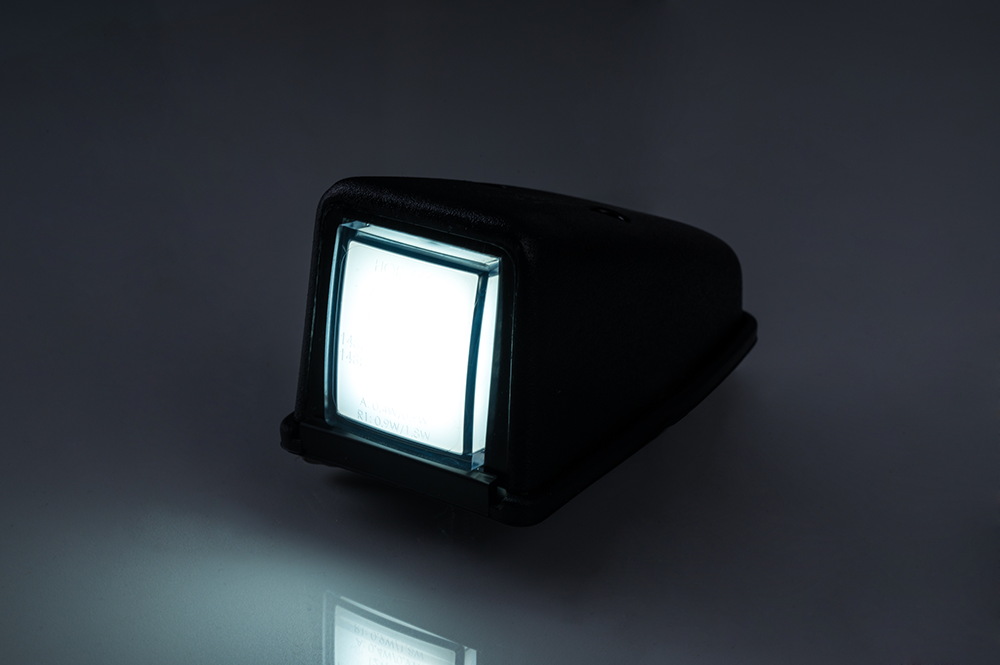

The lamp emits a bright white neon light (0,4/0,9 W). The lamp operates on a universal voltage of 12/24 V and is characterized by low power consumption. Only branded diodes are used for production, which definitely distinguish the quality of lighting and attractively emphasize the outline of a moving vehicle. Product is fully hermetic (ingress protection rating IP 68), and the operating temperature range is from -30 degrees C to +50 degrees C.

Ensure your safety on the road! Identify your vehicle with LED new arrivals by Horpol!

Dane techniczne

Light category

marker

Side

universal

Supply voltage

12/24 V

Front clearance light

yes

Light colour

white

Power rating

0,4/0,9 W

Operating temperature range

from -30°C to +50°C

Light group

HOR 44A

Cable

2×0,75 mm2; cable length 0,25 m

LED light

yes

LED quantity

Ingress protection rating

IP 68

LD 3111

Roof marker light
