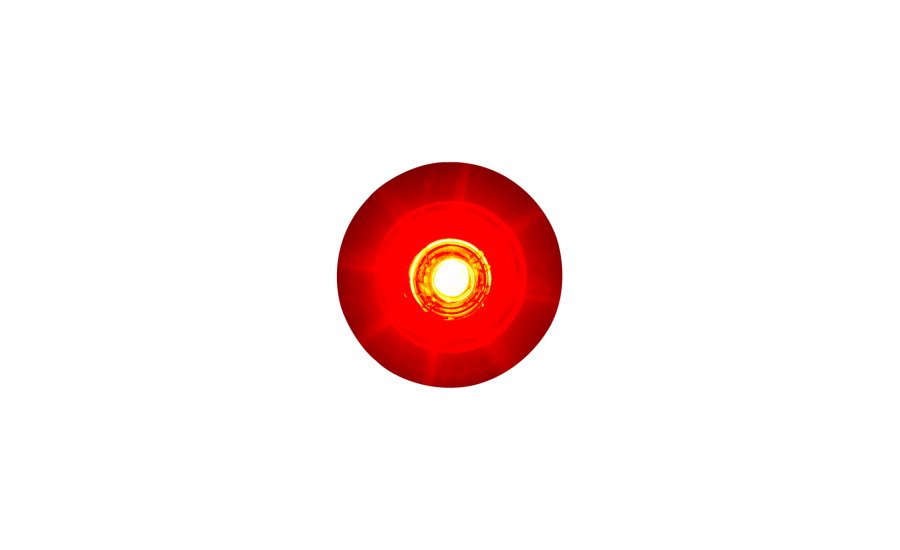

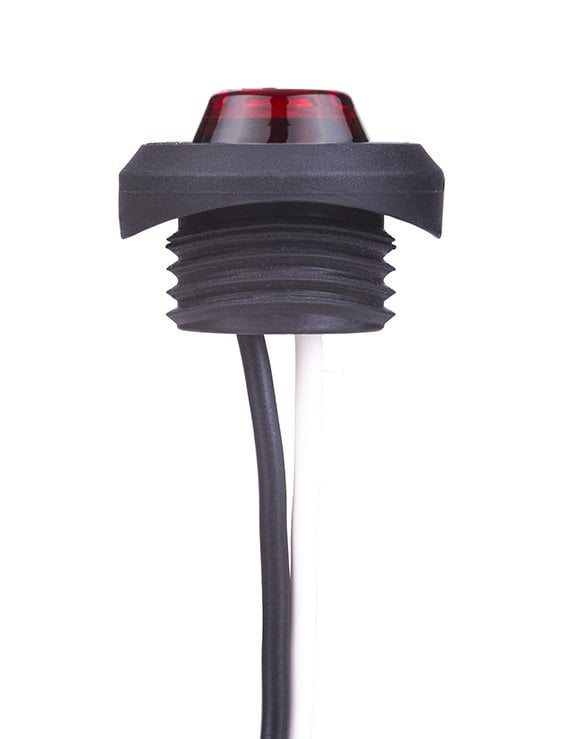

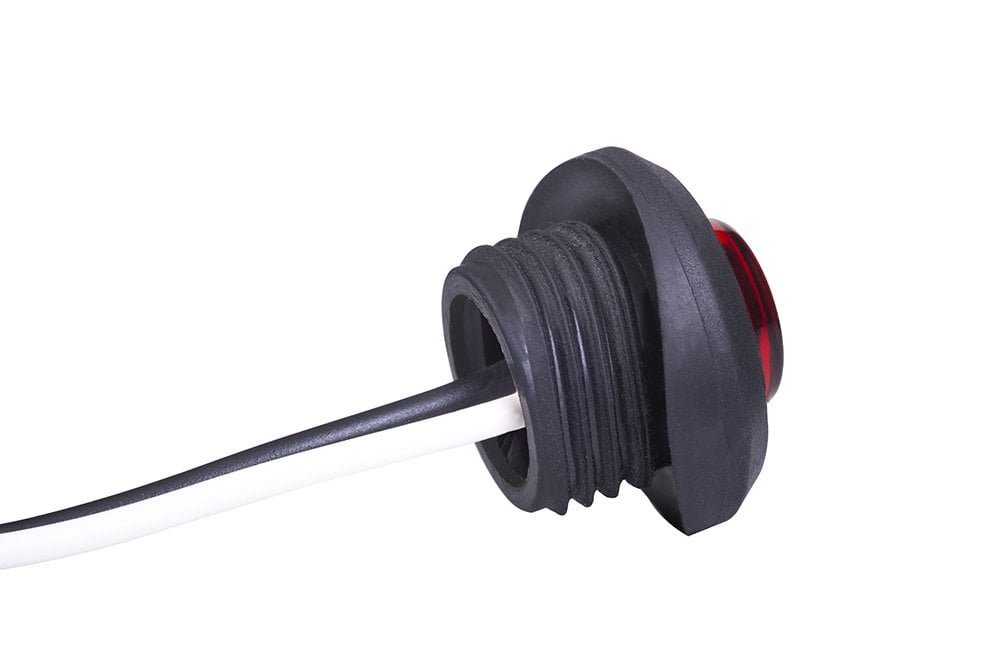

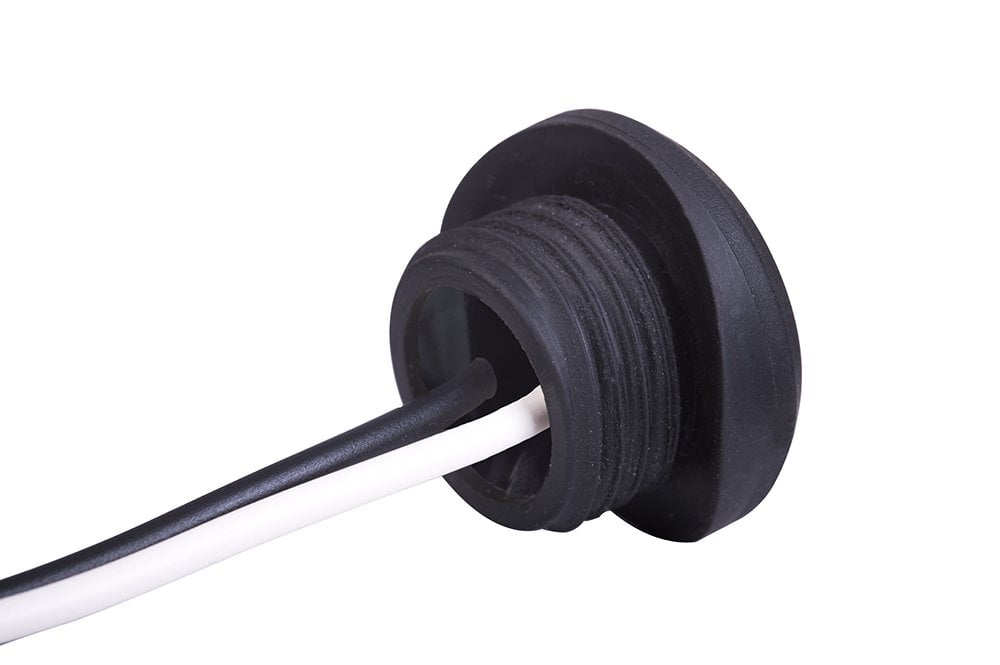

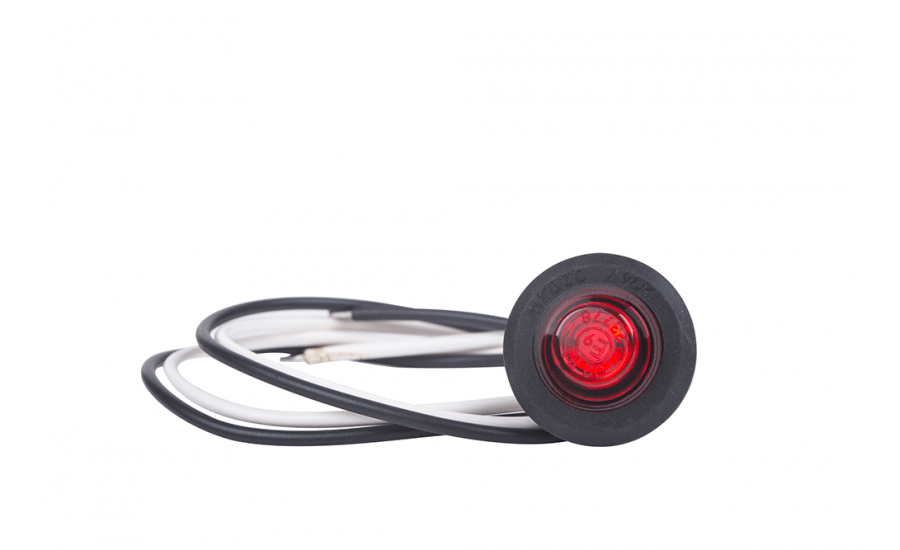

Rear position lamp.
Category: R1
Lamp type: LED
Important information. Specified polarization: black wire (+), white wire (-). Lamp assembly to the tube Φ60 by pressing into a hole with a diameter of Φ19.
Dane techniczne
Light group
HOR 109
Light category
marker
Ingress protection rating
IP 68
LED light
yes
LED quantity
1
Supply voltage
12/24 V
Cable
2x1x0,75 mm2
Connection method
two single electric wires
Side
universal
Rear position light
yes
Operating temperature range
from -30°C to +50°C
