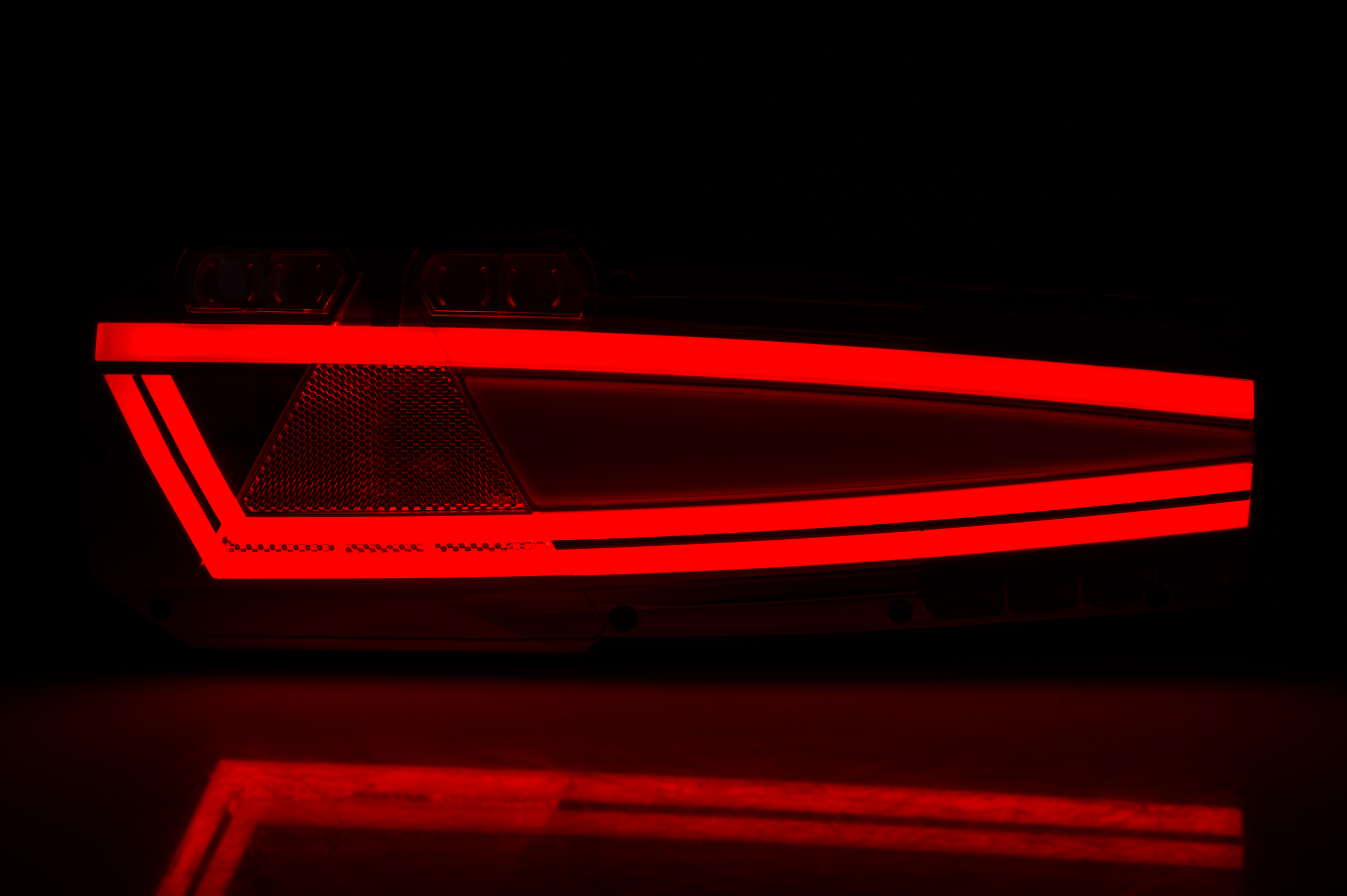

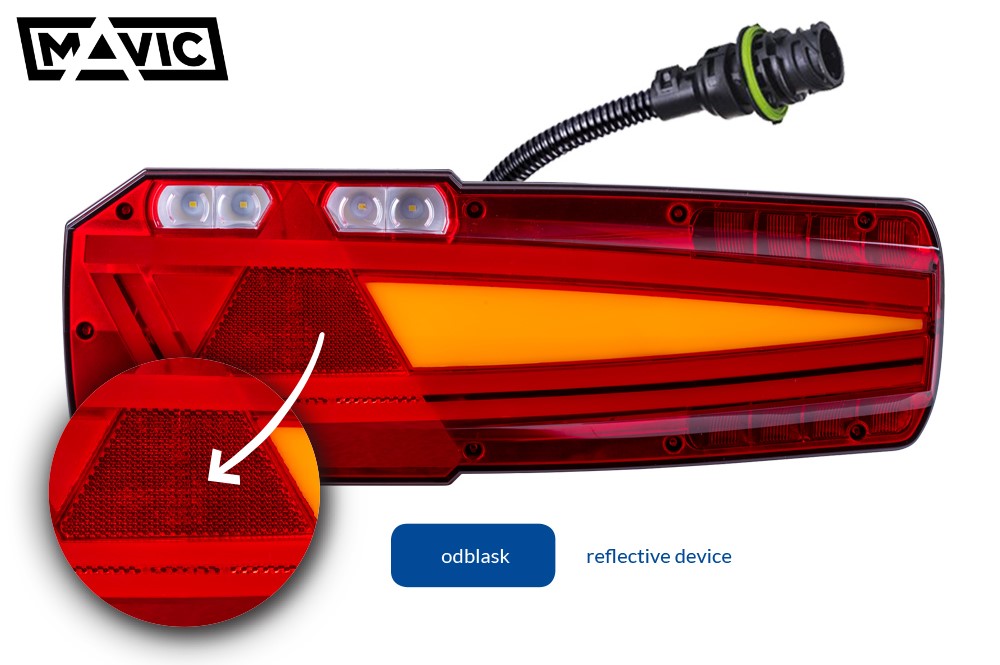

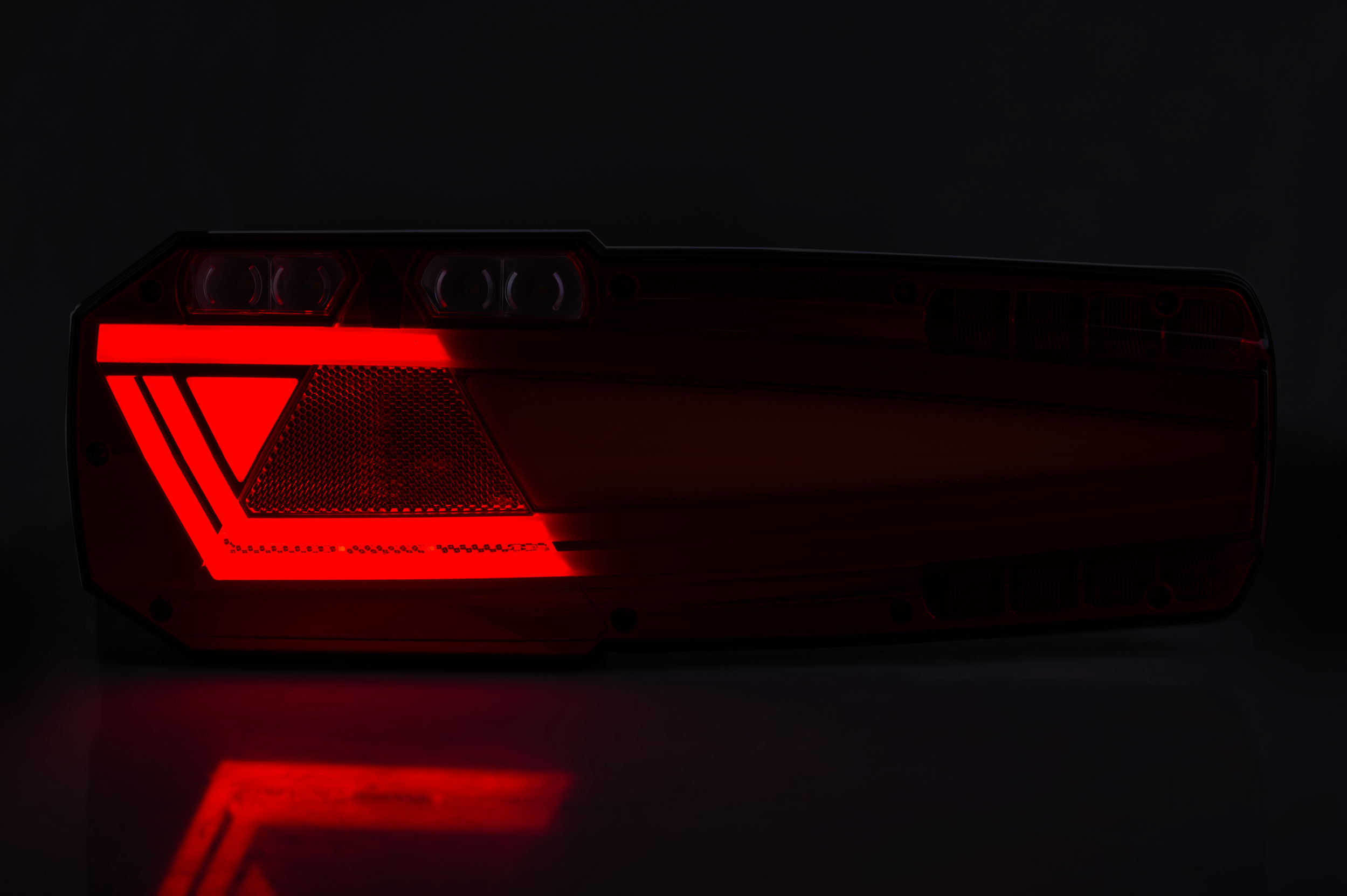

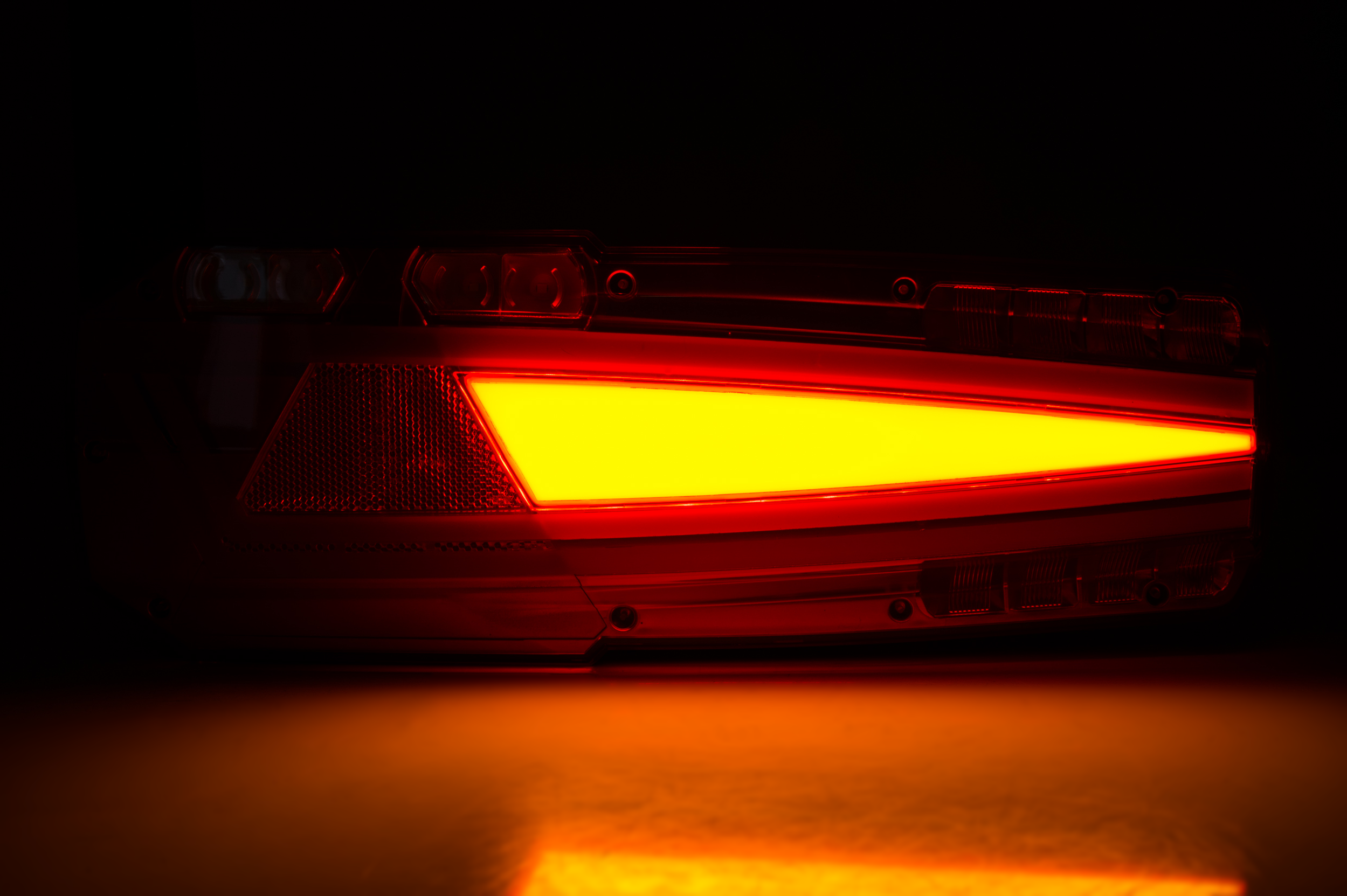

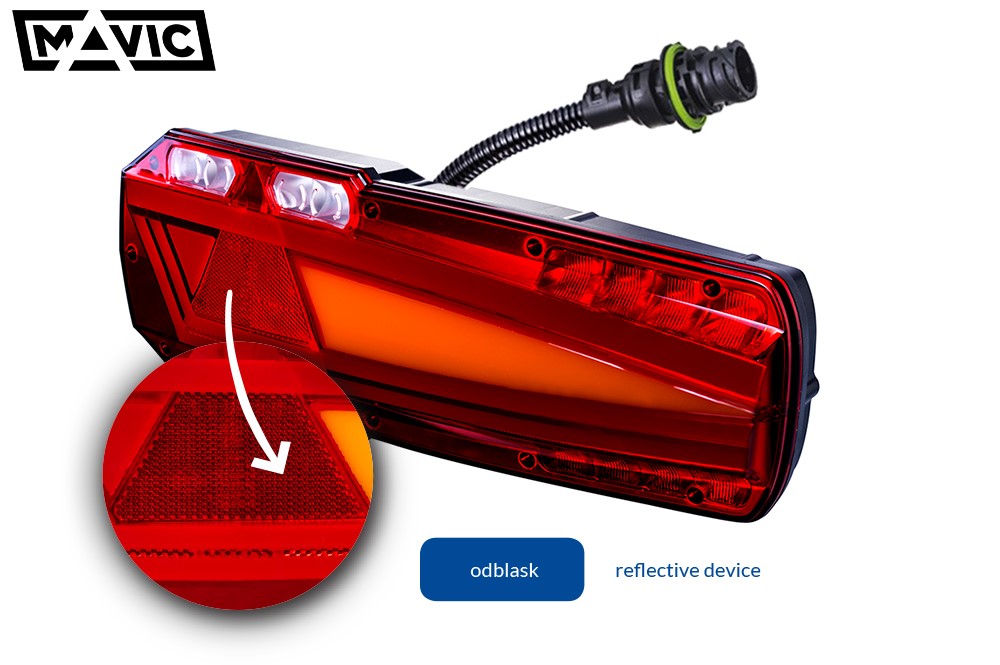

Home Oferta Lamp types LED lights Multifunction lights Rear multifunction light MAVIC LZD 3011 with electrical conduit and reflective device

The latest generation of impressive and modern LED multifunction lamps MAVIC has been extended with new models, equipped with reflectors, electrical conduits and AMP 7 PIN sockets.
Lamps LZD 3011 (left) and LZD 3012 (right) are designed for vans, truck tractors, tow trucks, larger specialized and agricultural vehicles. Lamps of the HOR 108A group have European approvals and electromagnetic compatibility certificate (EMC). MAVIC models are fully hermetic (ingress protection rating IP 68), and the operating temperature range is from -30 degrees C to +50 degrees C. A special protective lens coating has been provided to ensure resistance to scratches and mechanical damage. The advantage of these lamps is also their universal operating voltage of 12 V and 24 V.

Our offer includes also MAVIC lights with retroreflective triangle.
MAVIC by HORPOL. Discover new lighting solutions!

Lamp functions and power consumption at 12/24 V operating voltage:
– rear position light NEON (2/4 W);

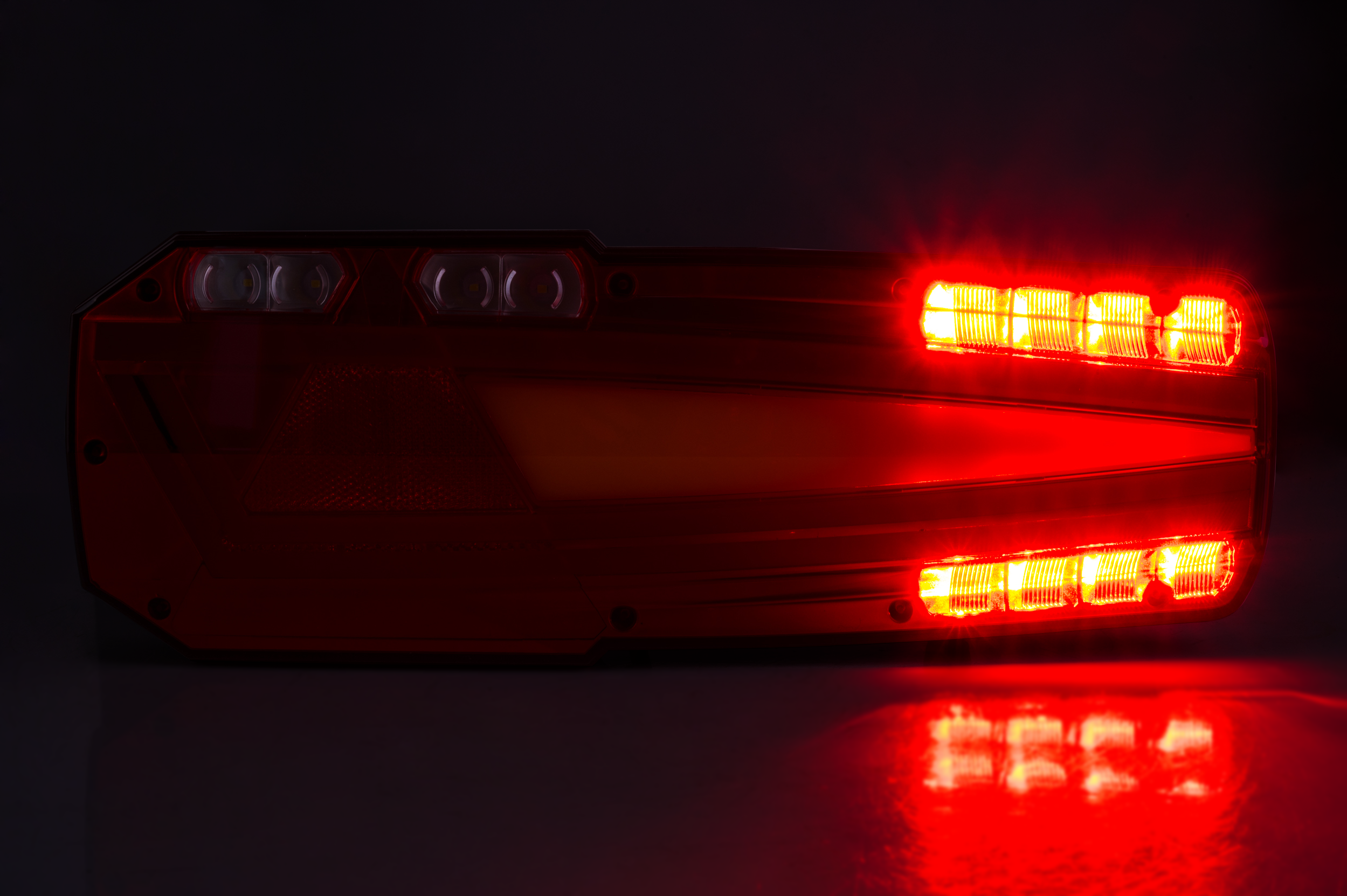

– brake light NEON (10/10 W);
– rear direction indicator NEON (4/13 W);

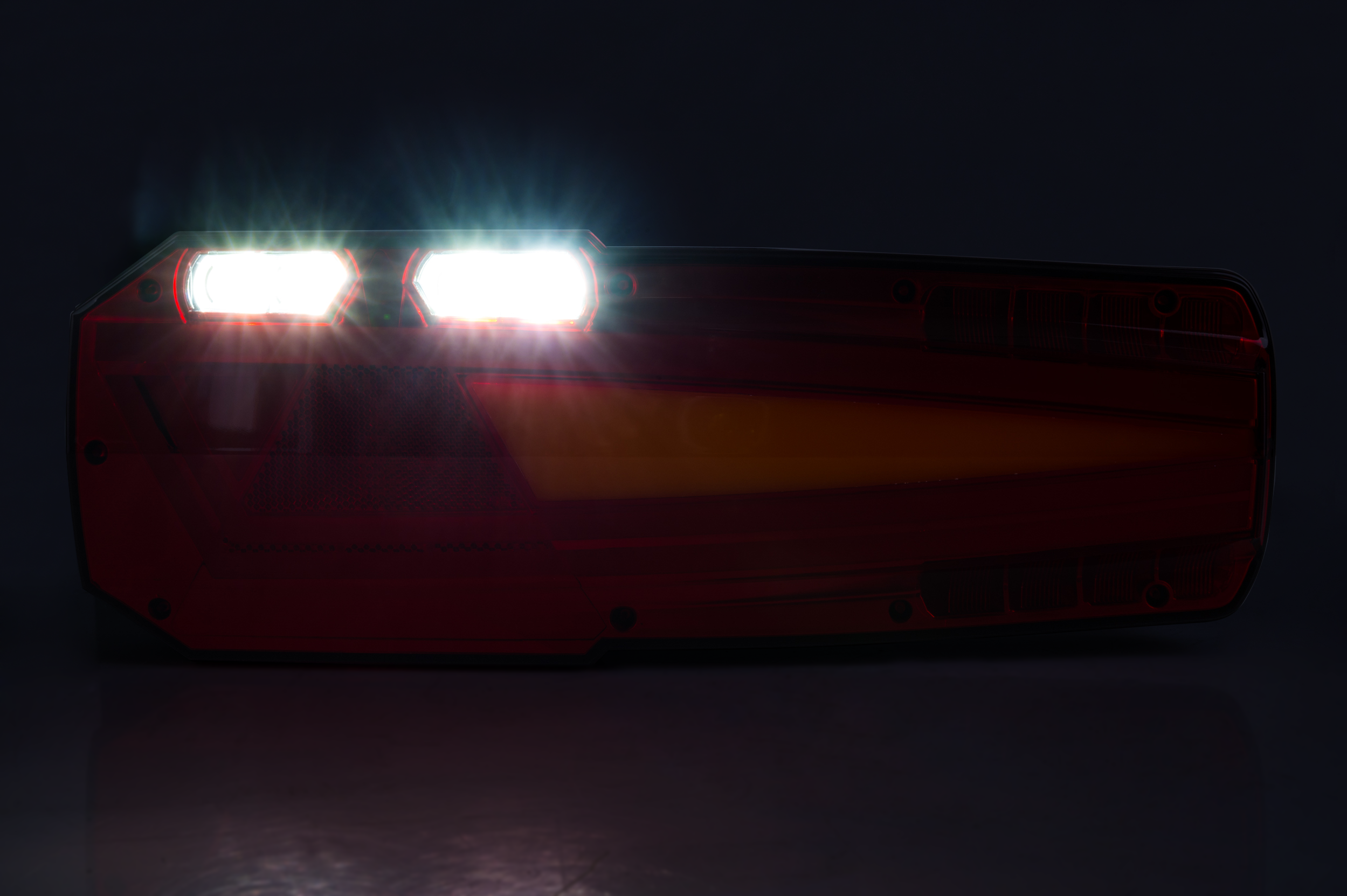

– reversing light (2/4,5 W);
– fog light (4/4 W);
– reflective device.

Dane techniczne

Light group
HOR 108A
Light category
multifunction rear
Rear direction indicator
yes
Ingress protection rating
IP 68
LED light
yes
LED quantity
91
Supply voltage
12/24 V
Reflecting device
yes
Cable
6x0,5 mm²; length 0,3 m, AMP 7 PIN, round
Side
left
Reversing light
yes
Brake light
yes
Rear position light
yes
Fog light
yes
Operating temperature range
from -30°C to +50°C
