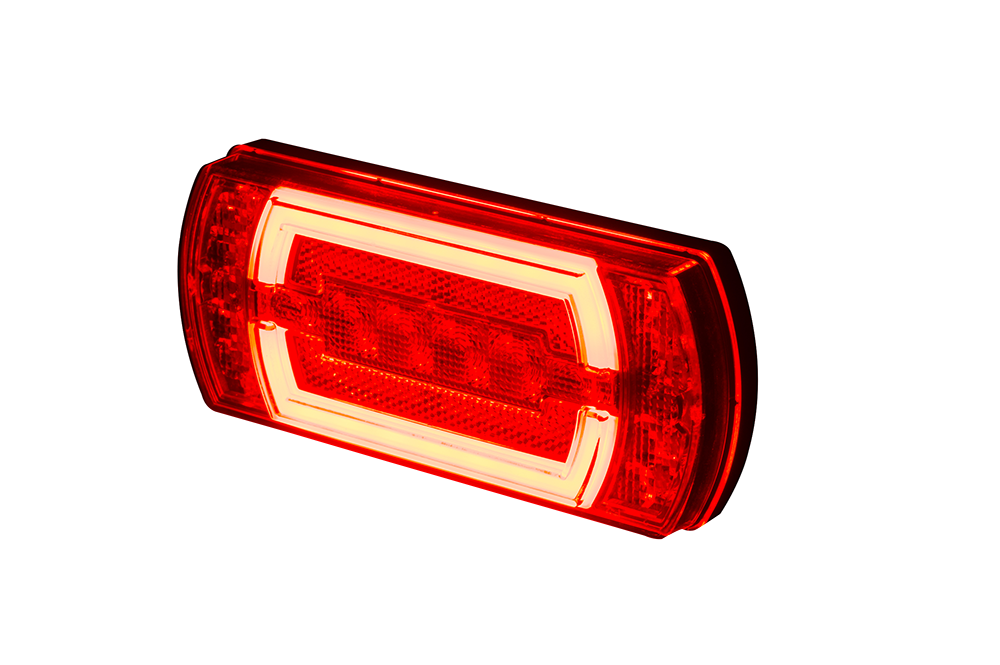

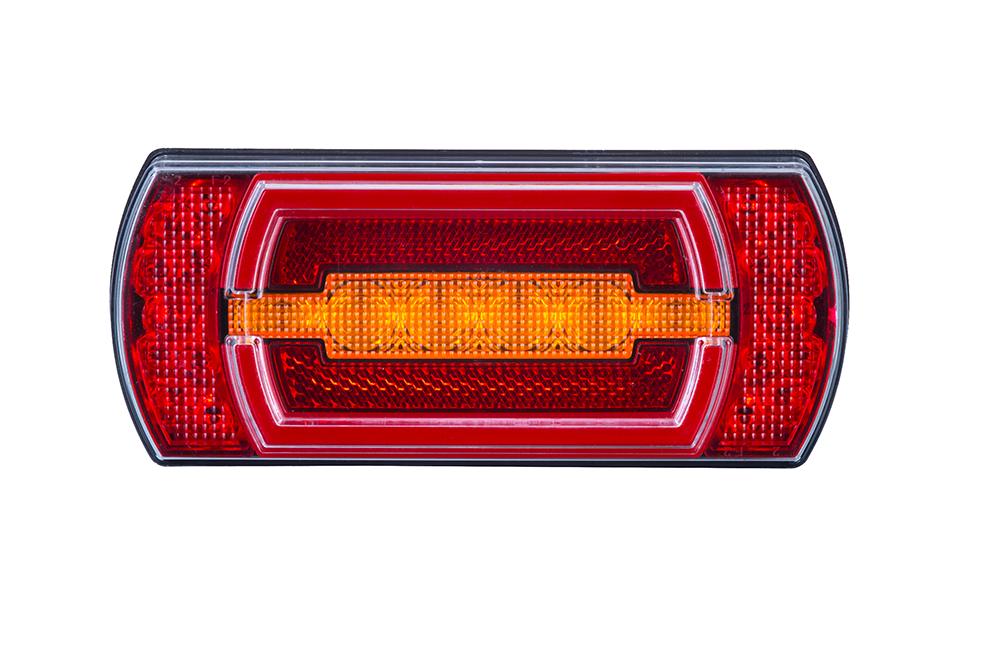

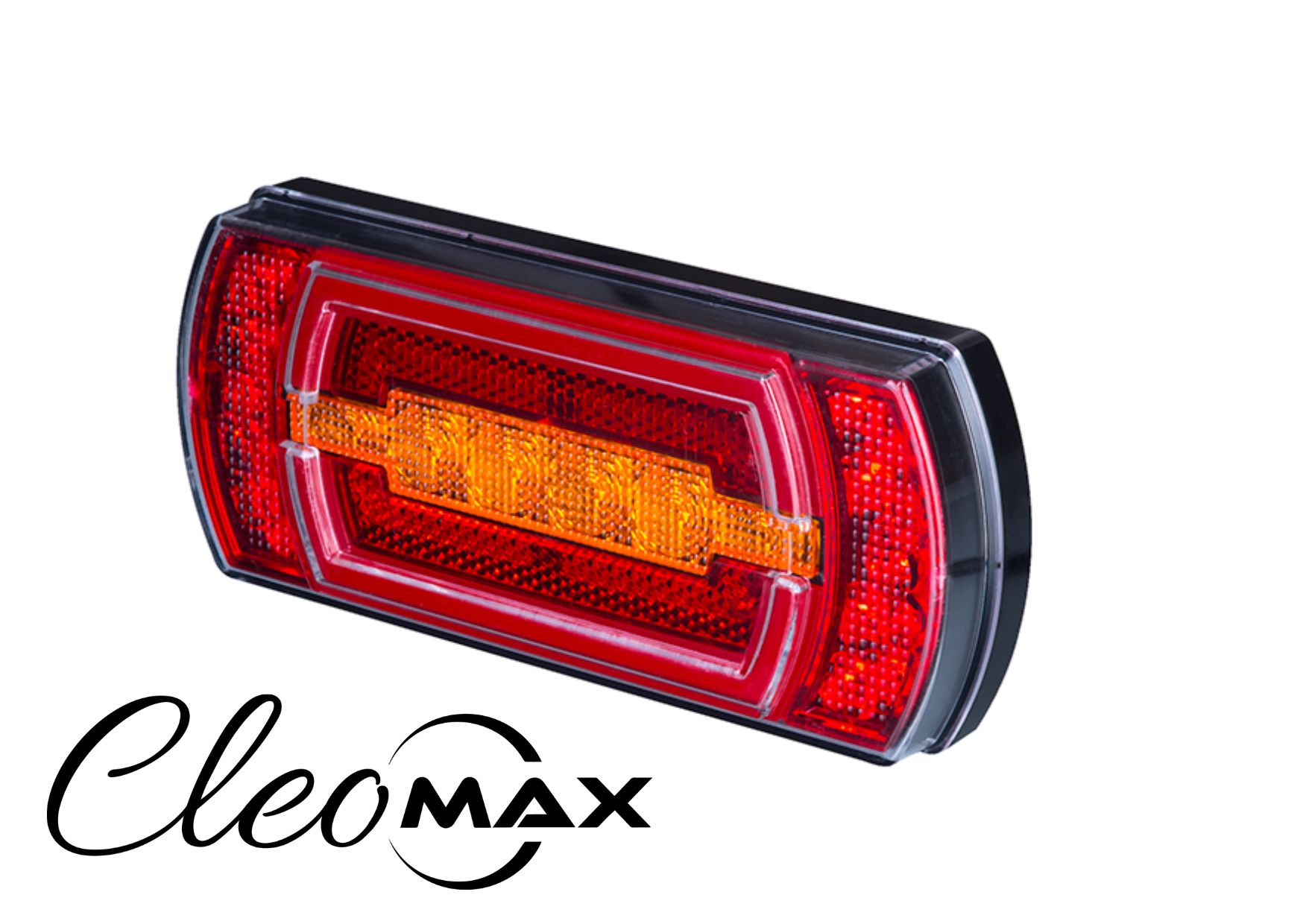

Attractive and modern design, high-quality materials and implemented energy-efficient LED technology, which ensures very good lighting parameters at very low power consumption, are the special hallmarks of multifunction lamp CLEOmax LZD 2840. The lamp is fully hermetic (ingress protection rating IP 68), and the operating temperature range is from -30 degrees C to + 50 degrees C. Only branded diodes are used for production, ensuring excellent quality of products. The operation of the lamp LZD 2840 is also guaranteed in a way that does not emit electromagnetic interference and is electromagnetic interference-resistant, which is confirmed by the EMC certificate.

CLEOmax is universal in assembly, it can be installed both on the left and right side of the vehicle, vertically and horizontally. The lamp fulfills the following functions: position light with NEON effect, direction indicator, brake light, fog light and reflective device.

This model is dedicated to various types of vehicles such as trailers, semi-trailes, tow trucks, agricultural machines and special vehicles.

Power consumption at 12/24 V operating voltage:

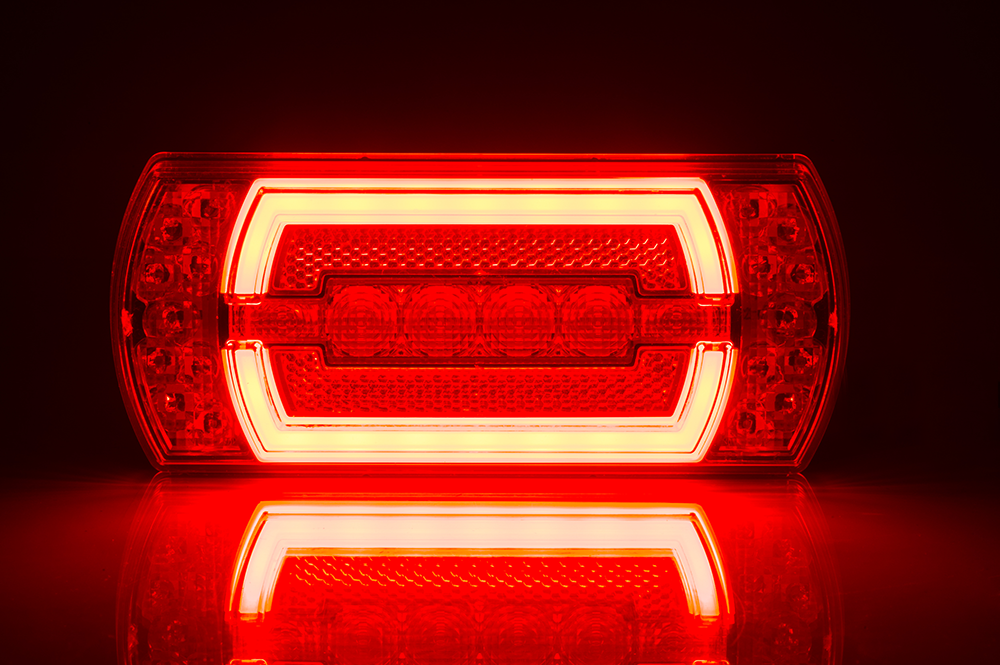

– NEON position light – 1,7 W/4;

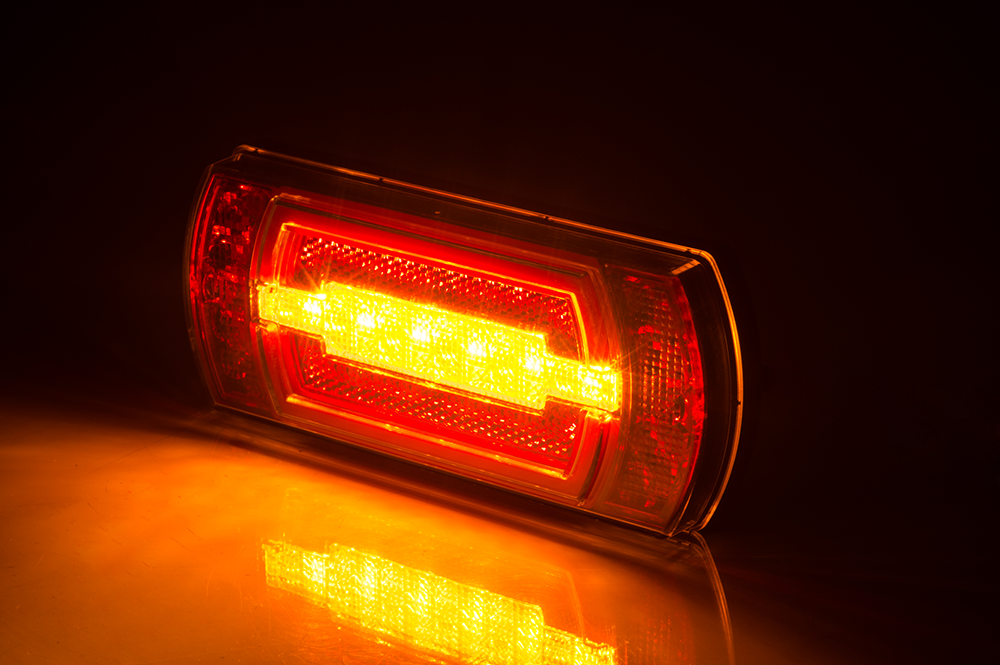

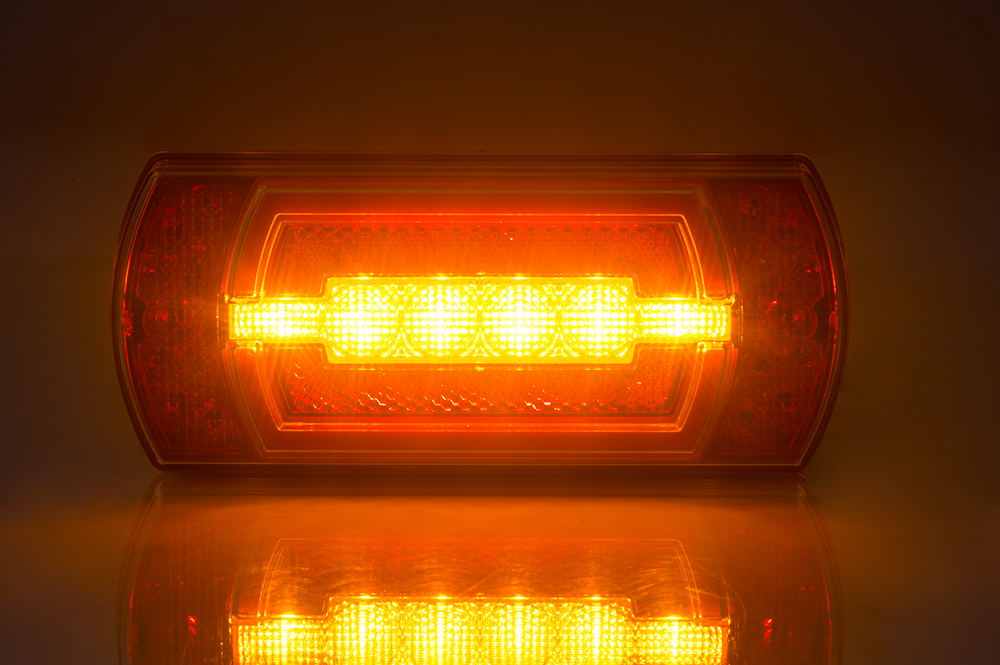

– direction indicator – 3,3/7,3 W;
– brake light – 3,5/4,2 W;
– fog light – 5,3/6 W.

Dane techniczne

Light category
multifunction rear
Side
universal
Rear position light
yes
Supply voltage
12/24 V
Fog light
yes
Brake light
yes
Reflecting device
yes
Rear direction indicator
yes
Operating temperature range
from -30°C to +50°C
Light group
HOR 114
Cable
5×0,5 mm2; cable length 1 m
LED light
yes
LED quantity
42
Ingress protection rating
IP 68
