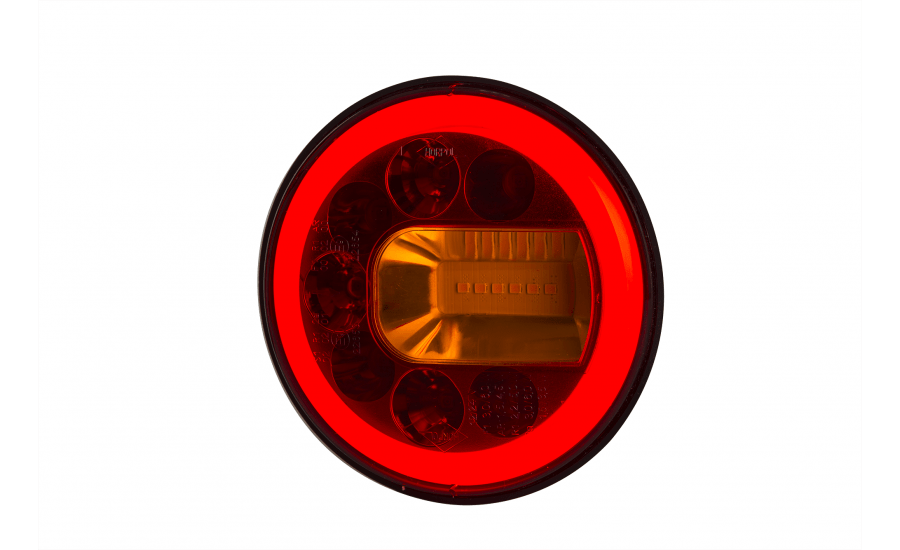

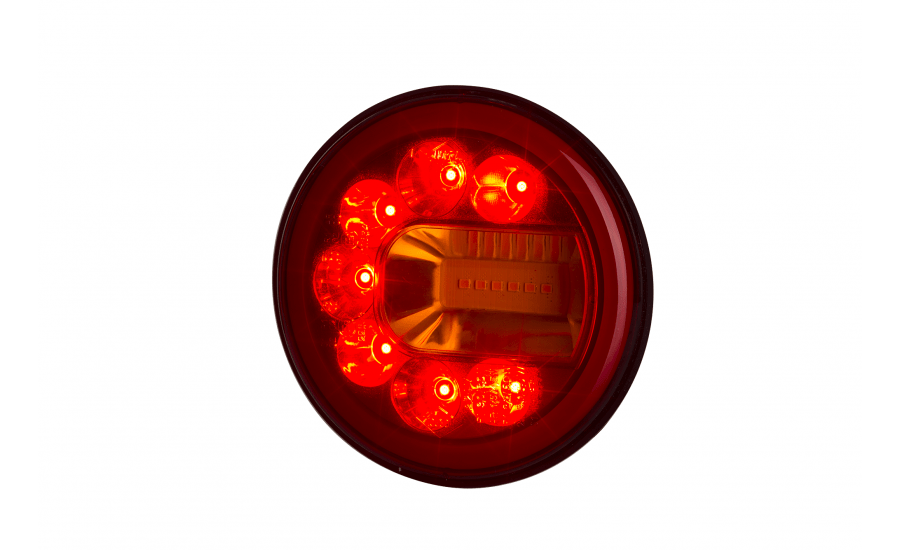

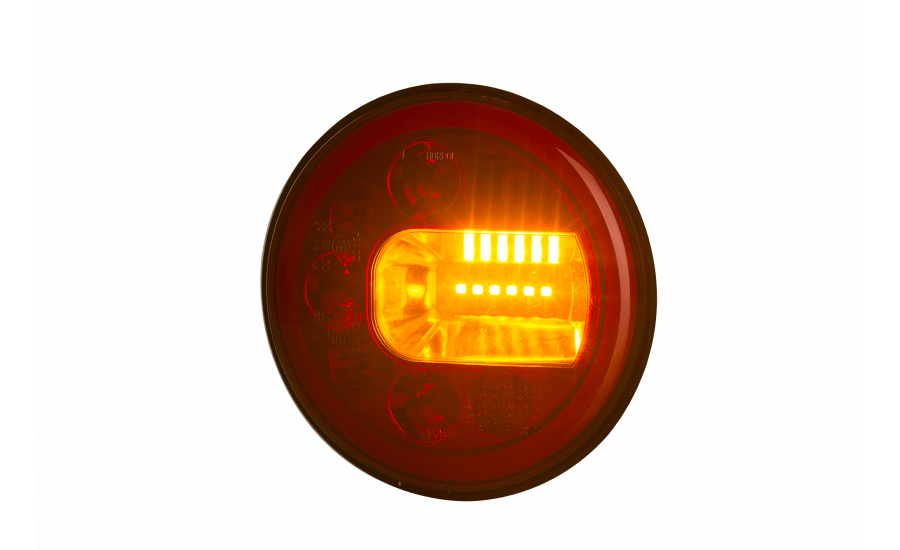

Multifunction rear lamp LUNA LZD 2447 – RIGHT
Function:
Indicator, brake light, position light
-cable 4×0,5 mm2, długość 1,5 m
6 white LEDs, 35 red LEDs
Specifications of cores:
-white-ground
-yellow (L), green (P) – direction indicator (3,0/6,0 W)
-red – brake light (1,5/3,5 W)
-black (L), brown (P) – position light (2,2/5,0 W)
homologation E9 ECE R06/R07
Dane techniczne
Light group
HOR 96A
Light category
multifunction rear
LED light
yes
LED quantity
41
Rear position light
yes
Rear direction indicator
yes
Brake light
yes
Side
right
Supply voltage
12/24 V
Power rating
position: 2,2/5 W direction indicator: 3/6 W brake: 1,5/3,5 W
Cable
4×0,5 mm2; cable length 1,5 m
Operating temperature range
from -30°C to +50°C
Ingress protection rating
IP 68
