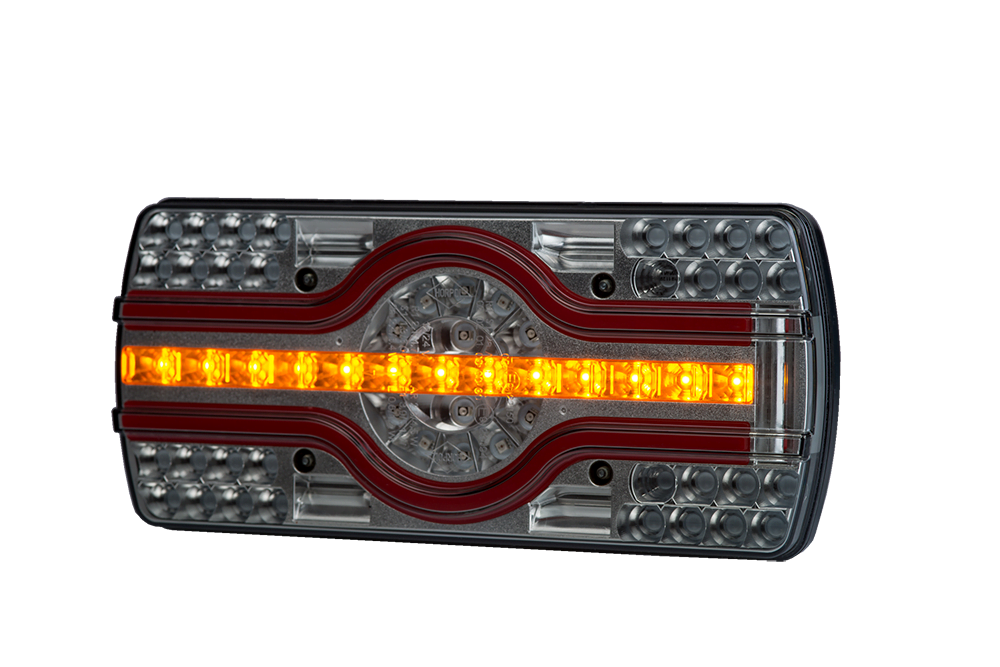

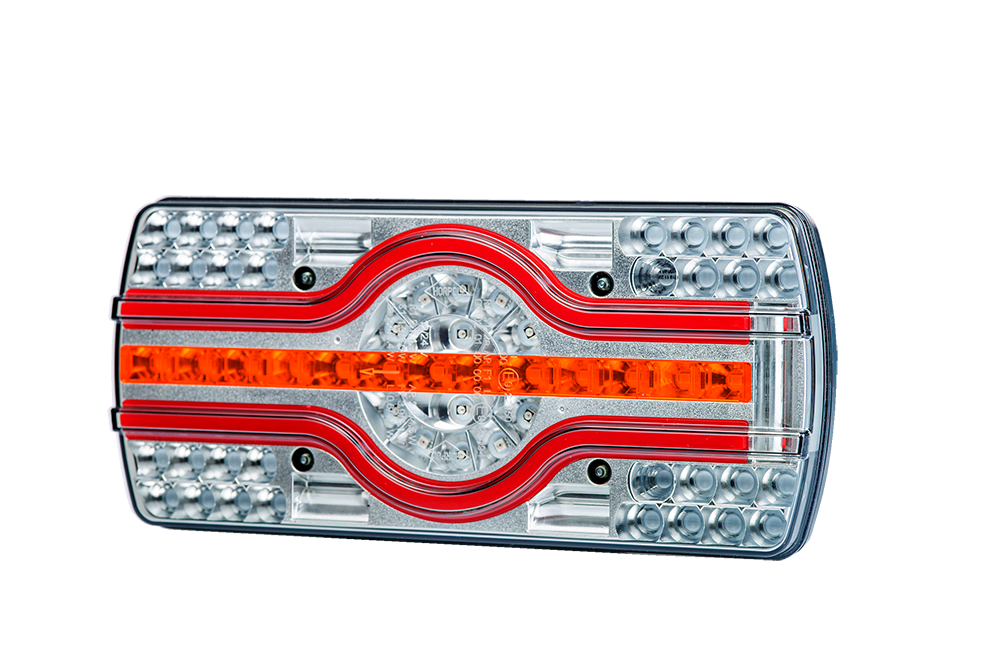

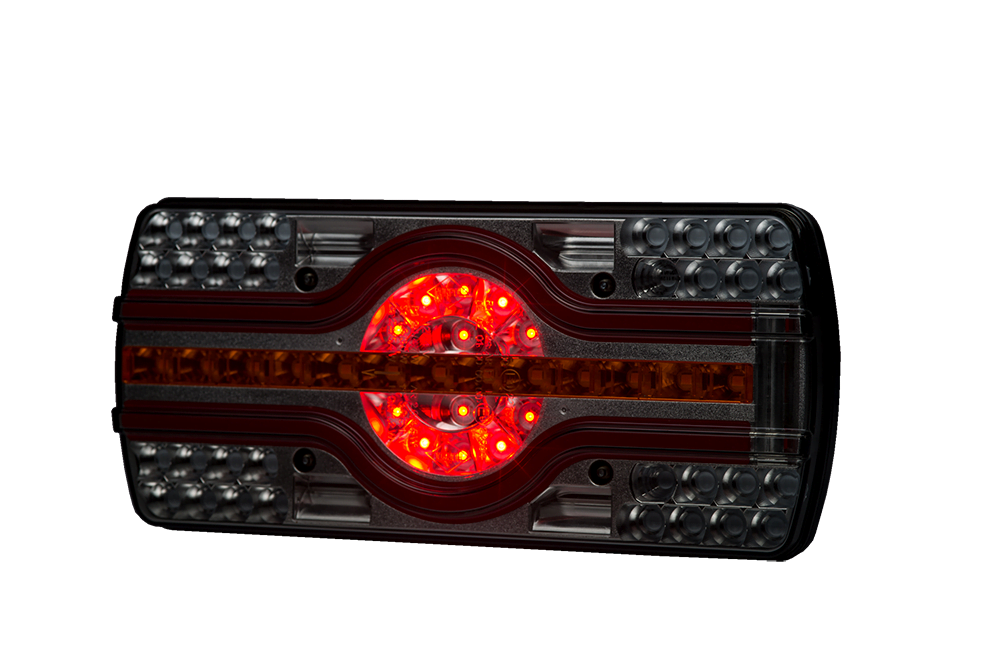

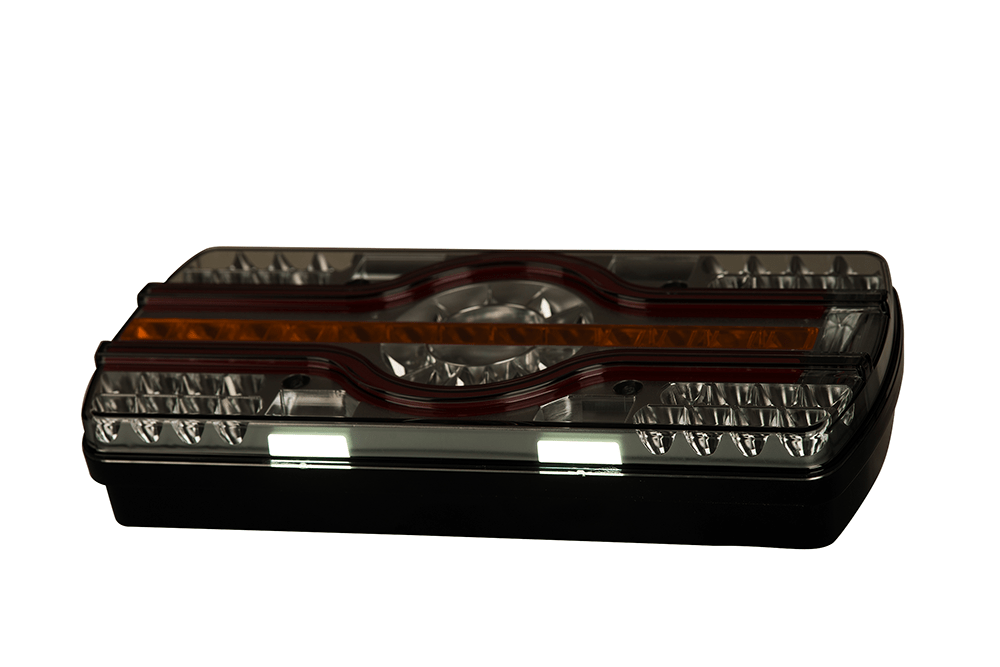

Multifunction rear lamp. Number plate light – underarm, left
Lamp functions/parameters
universal input voltage 12/24 V
power rating
– position light (neon) 2,1/4,7 W
– direction indicator 2,4/5,4 W
– brake light 2,7/6,0 W
– number plate light 0,6/1,2 W
cable 5×0,5 mm2, długość 2 m
Specifications of cores:
– white – ground
– black – position light
– yellow – direction indicator
– red – brake light
– blue – number plate light
Hermetic lamps IP 68
Dane techniczne
Light group
HOR 89
Light category
multifunction rear
Rear direction indicator
yes
Ingress protection rating
IP 68
LED light
yes
Supply voltage
12/24 V
Number plate light
yes
Cable
5×0,5 mm2; cable length 2 m
Side
left
Brake light
yes
Rear position light
yes
Operating temperature range
from -30°C to +50°C
