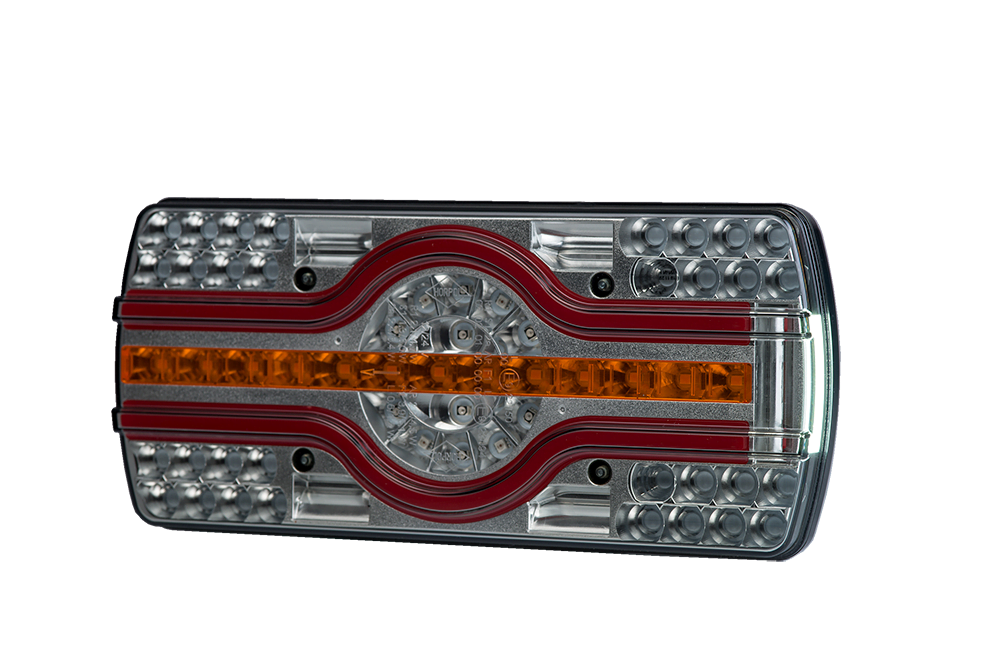

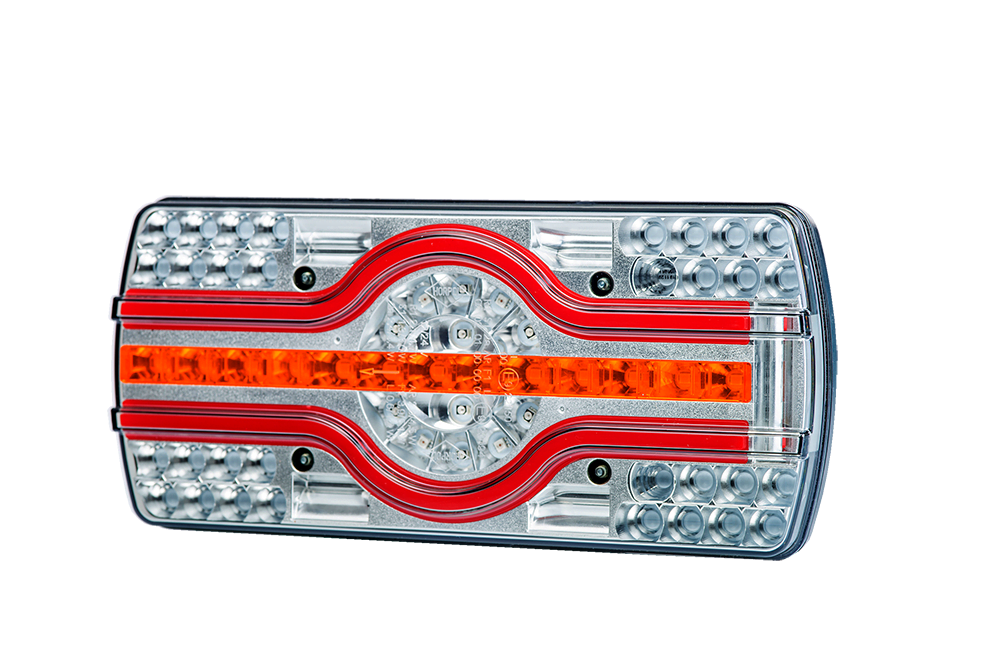

Multifunction rear lamp. Number plate light – side
Lamp functions/parameters
universal input voltage 12/24 V
power rating

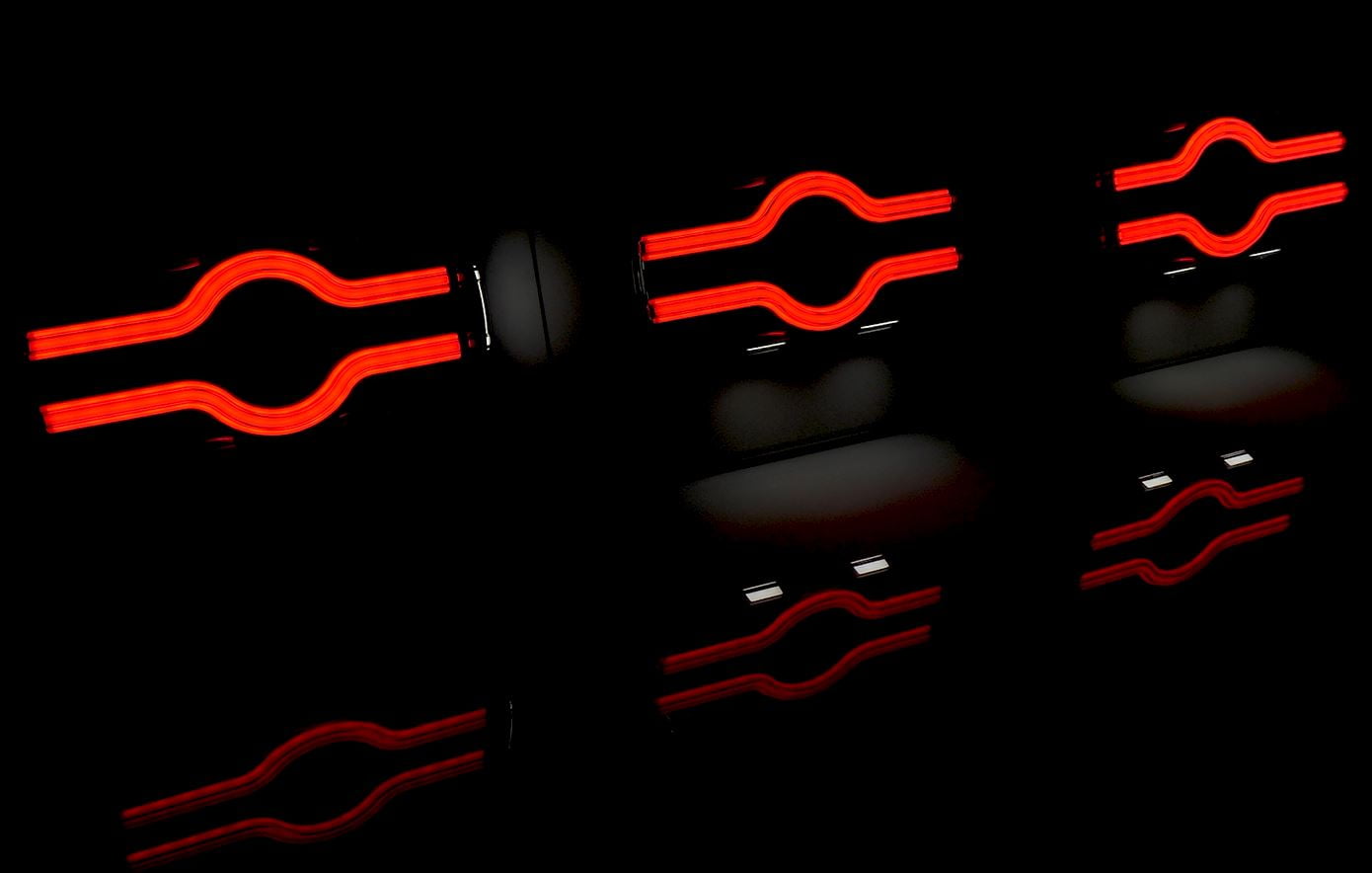

– position light (neon) 2,1/4,7 W

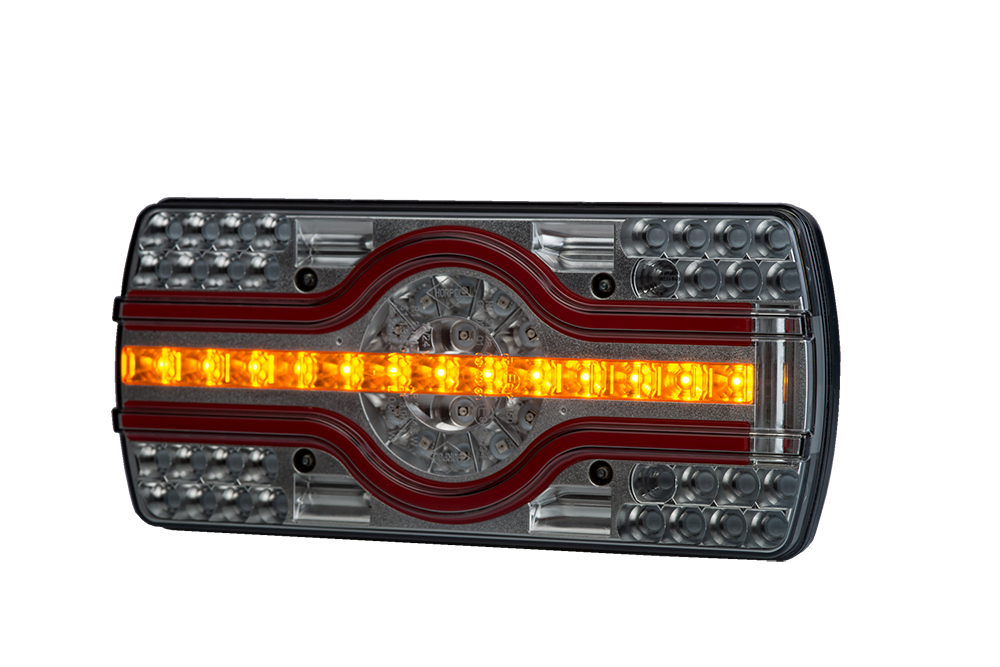

– direction indicator 2,4/5,4 W

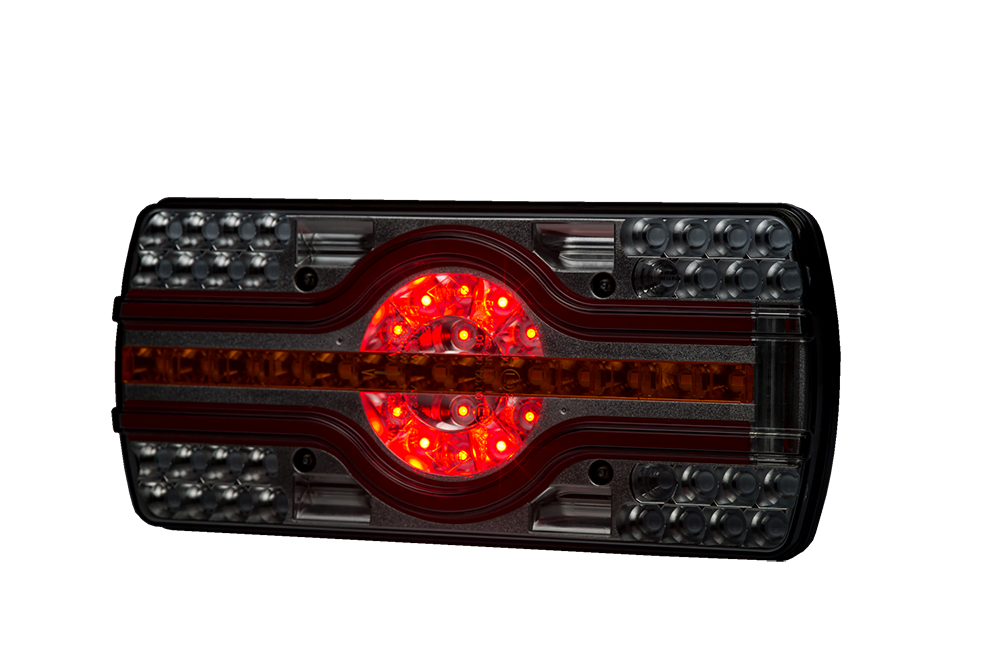

– brake light 2,7/6,0 W
– number plate light 0,6/1,2 W
cable 5×0,5 mm2, długość 2 m
Specifications of cores:
– white – ground
– black – position light
– yellow – direction indicator
– red – brake light
– blue – number plate light
Hermetic lamps IP 68
Dane techniczne
Light group
HOR 89
Light category
multifunction rear
LED light
yes
Rear position light
yes
Rear direction indicator
yes
Number plate light
yes
Brake light
yes
Side
universal
Supply voltage
12/24 V
Cable
5×0,5 mm2; cable length 2 m
Operating temperature range
from -30°C to +50°C
Ingress protection rating
IP 68
