Dane techniczne

Light group

HOR 89

Light category

multifunction rear

LED light

yes

Rear position light

yes

Rear direction indicator

yes

Number plate light

yes

Brake light

yes

Fog light

yes

Reversing light

yes

Side

right

Supply voltage

12/24 V

Cable

7×0,5 mm²; cable length 2 m

Operating temperature range

from -30°C to +50°C

Ingress protection rating

IP 68

LZD 2542

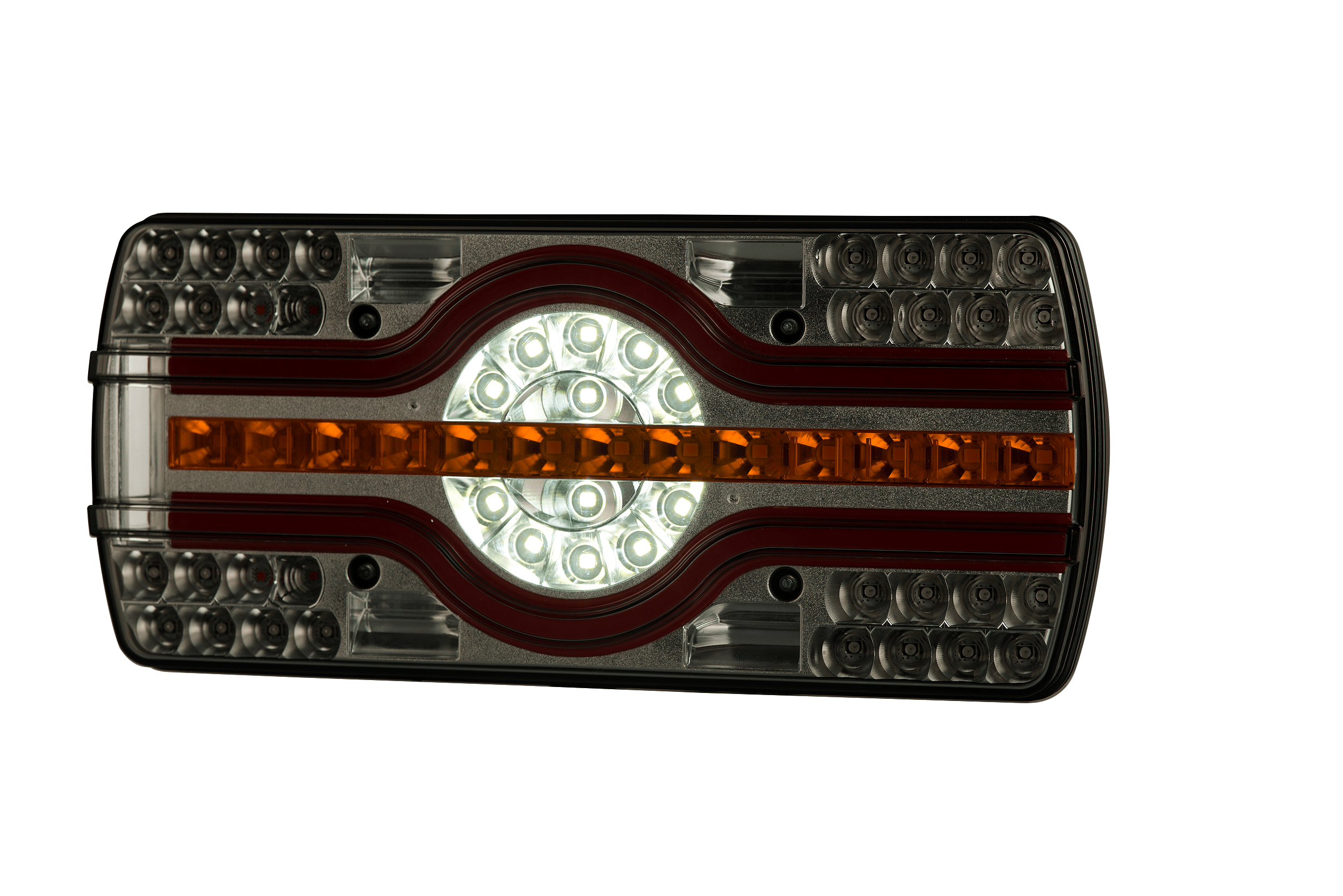

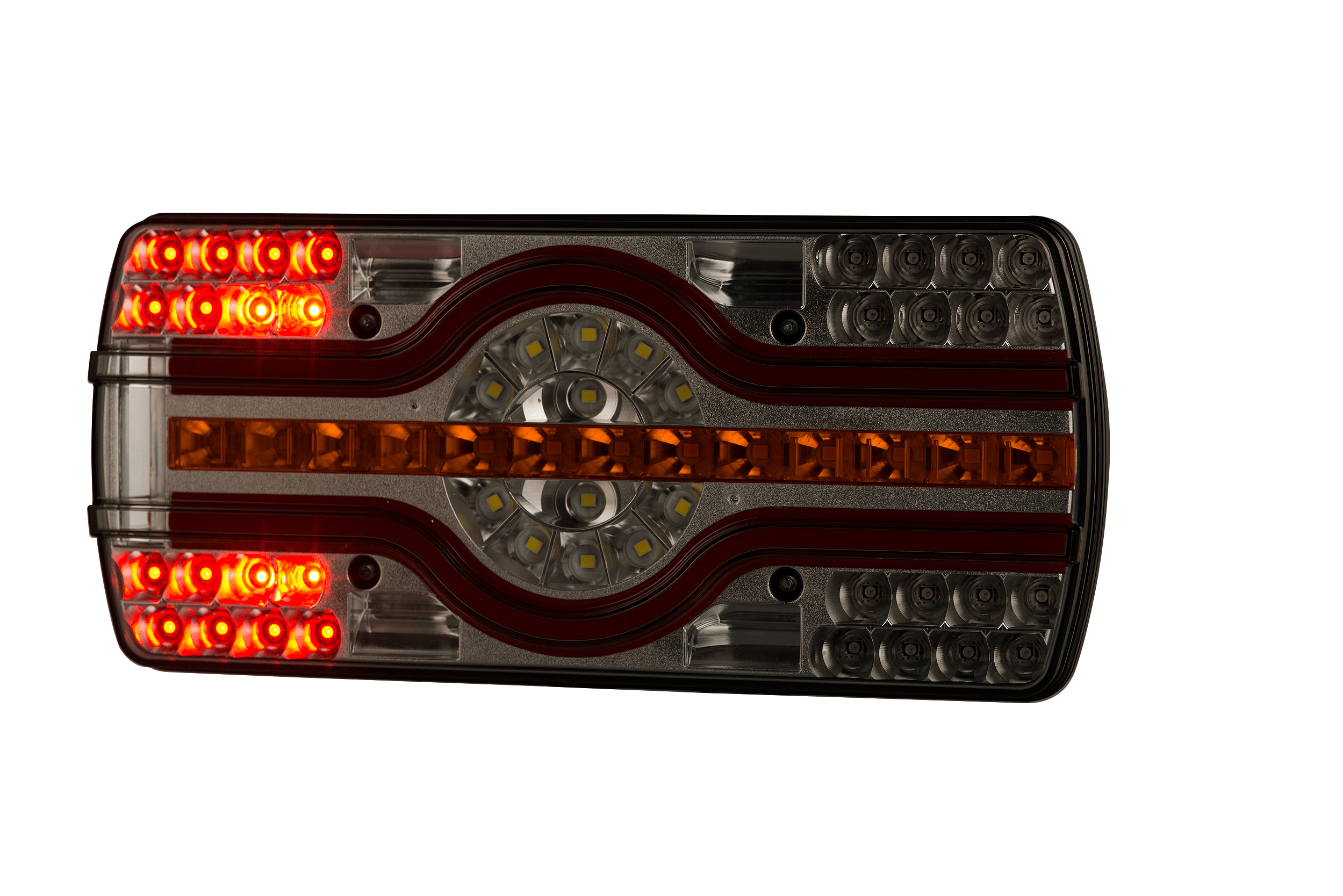

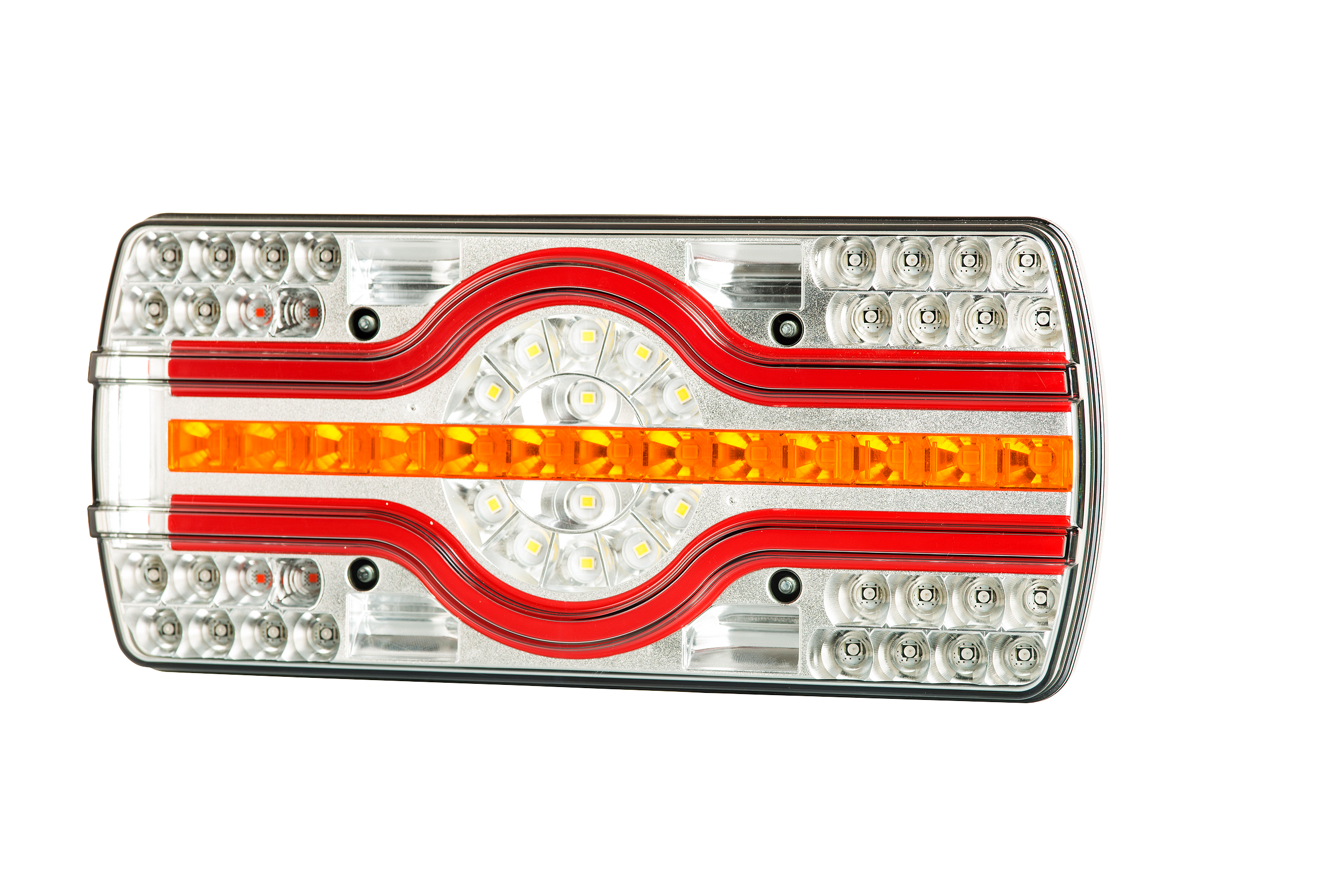

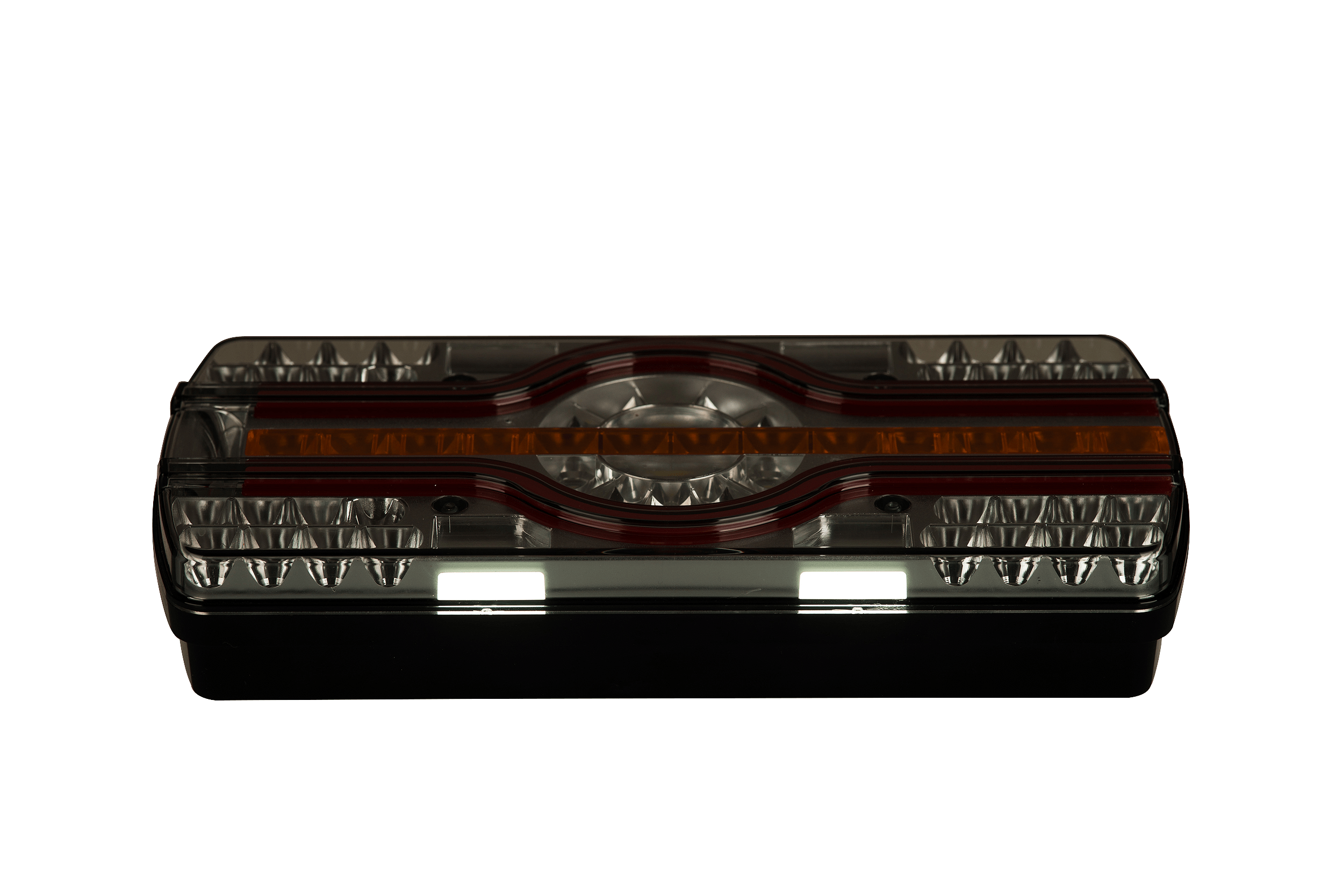

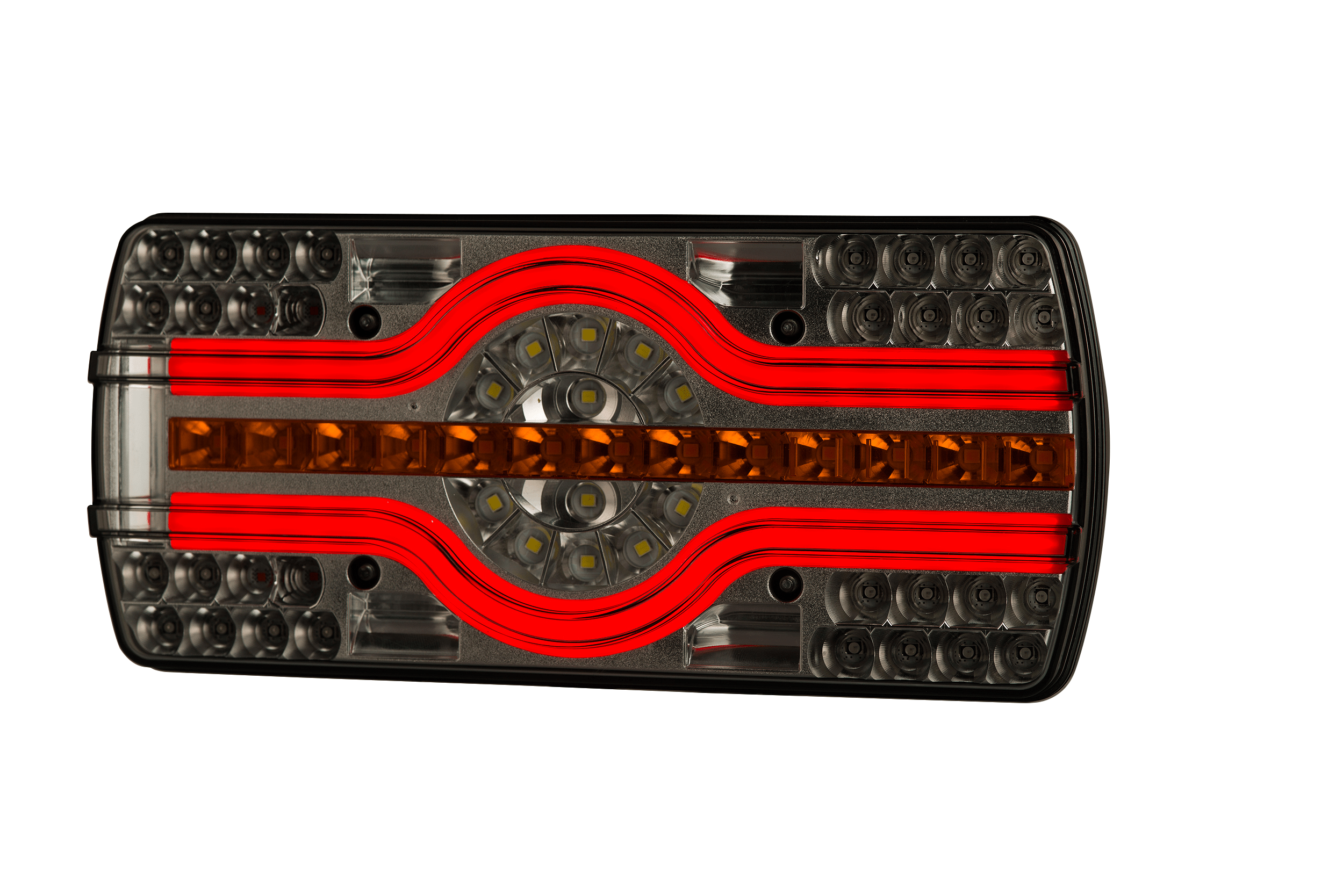

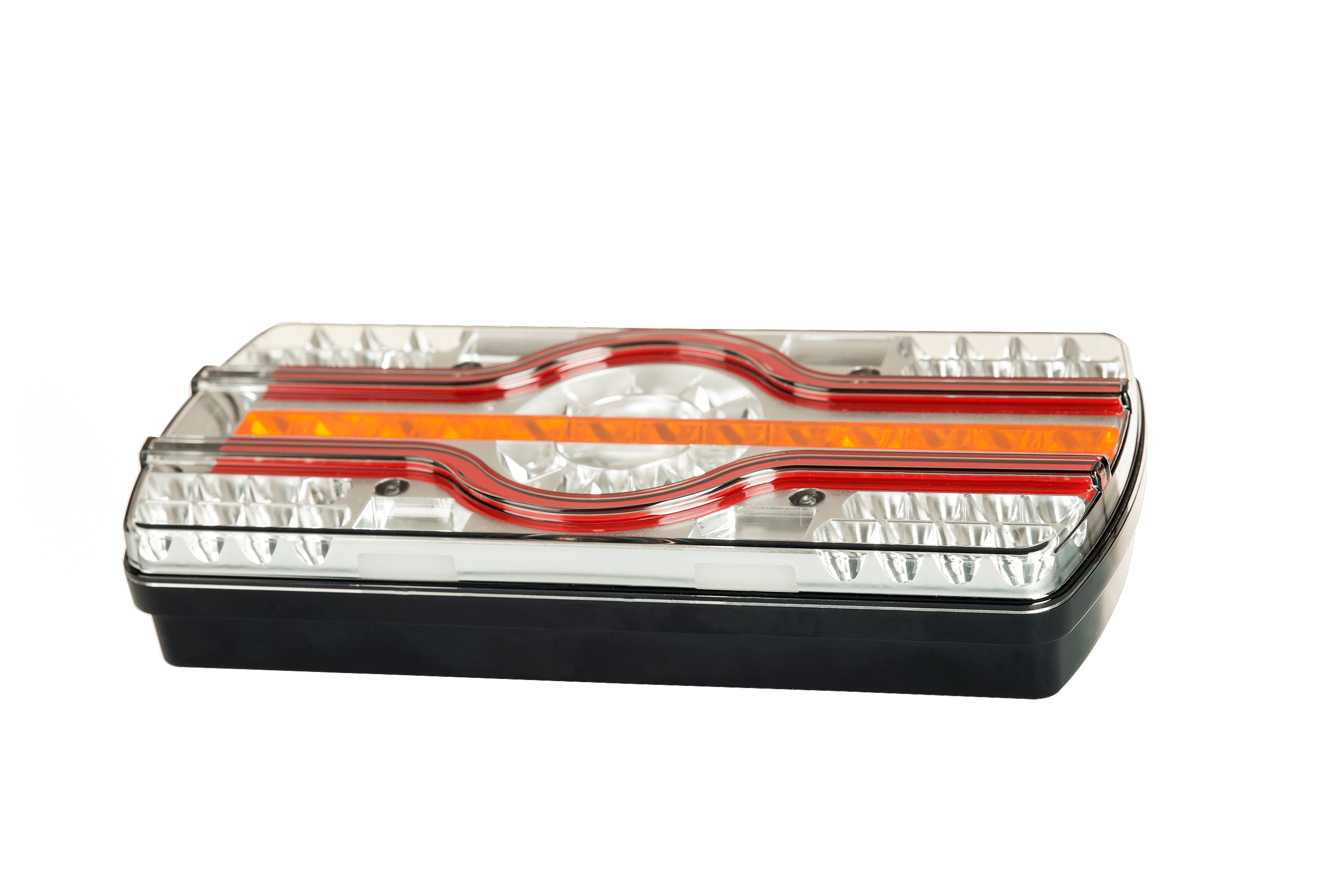

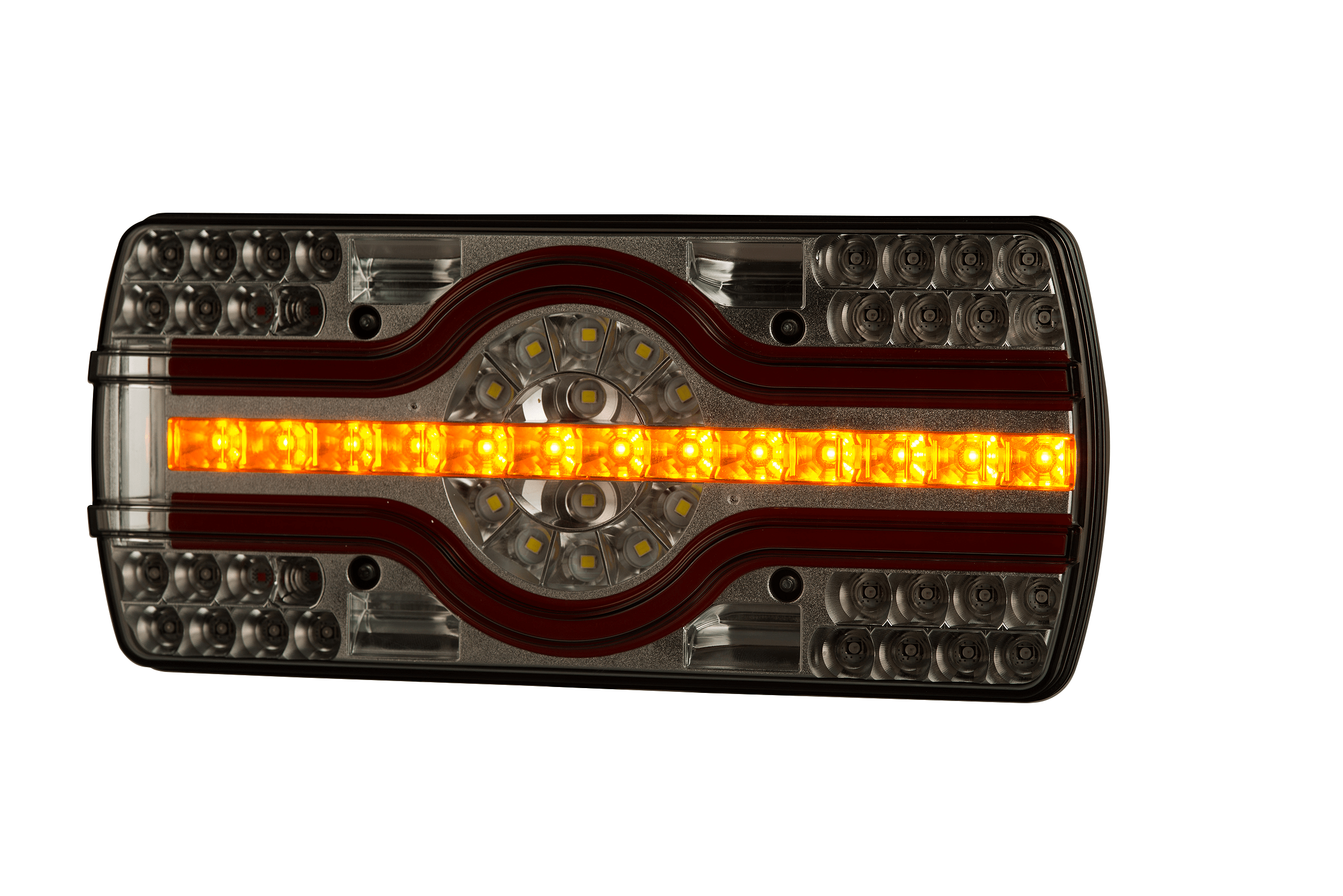

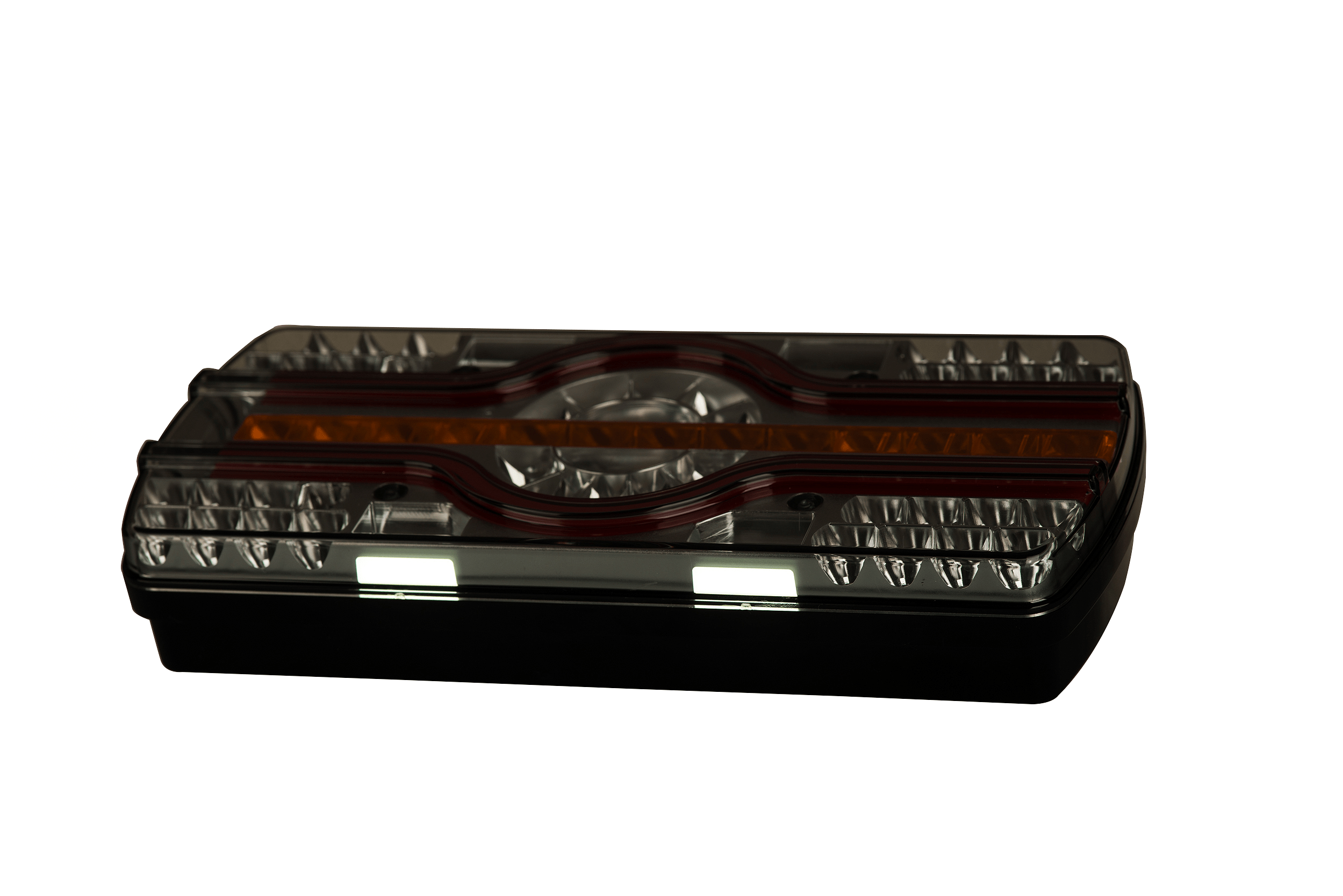

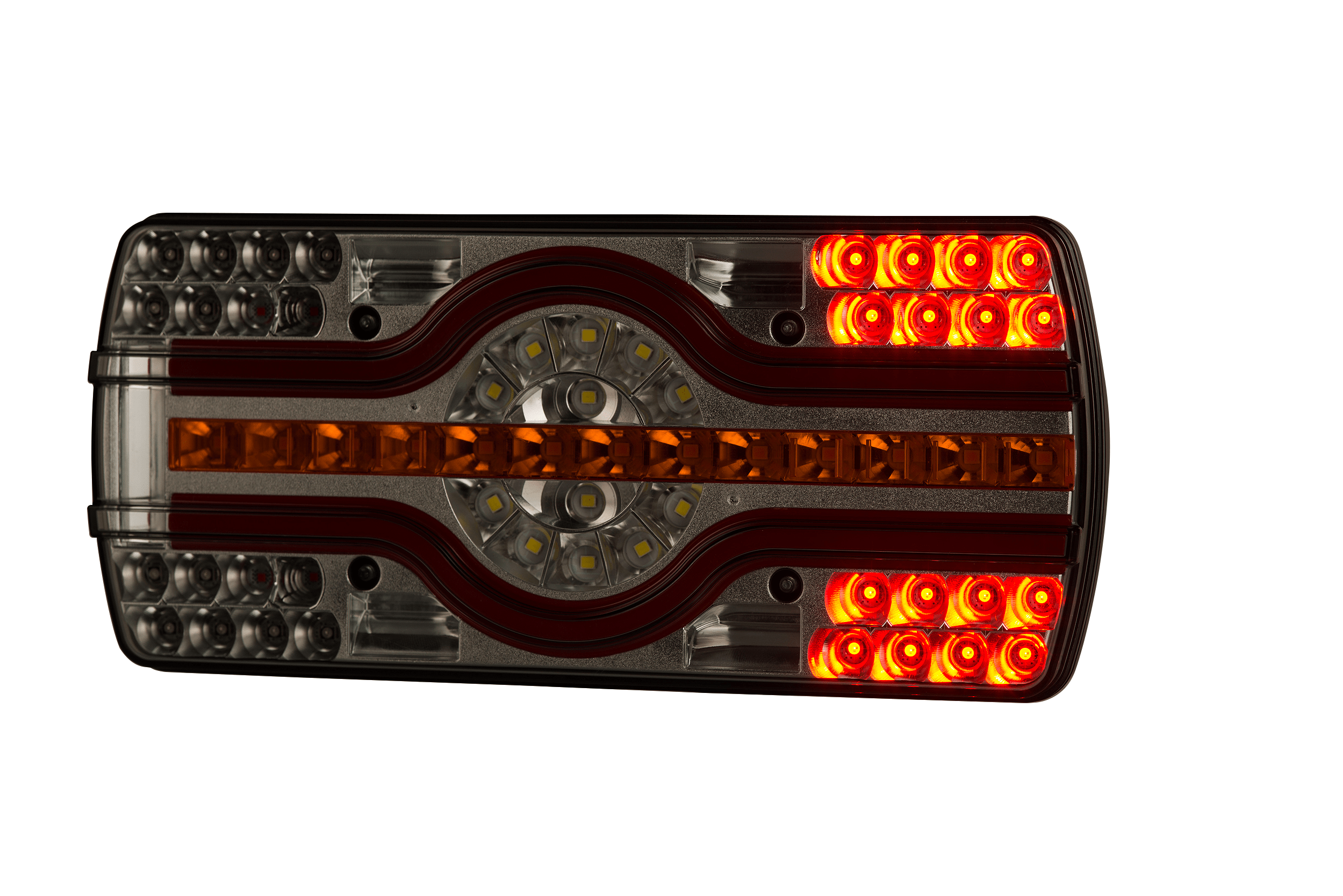

Multifunction rear lamp EMA
