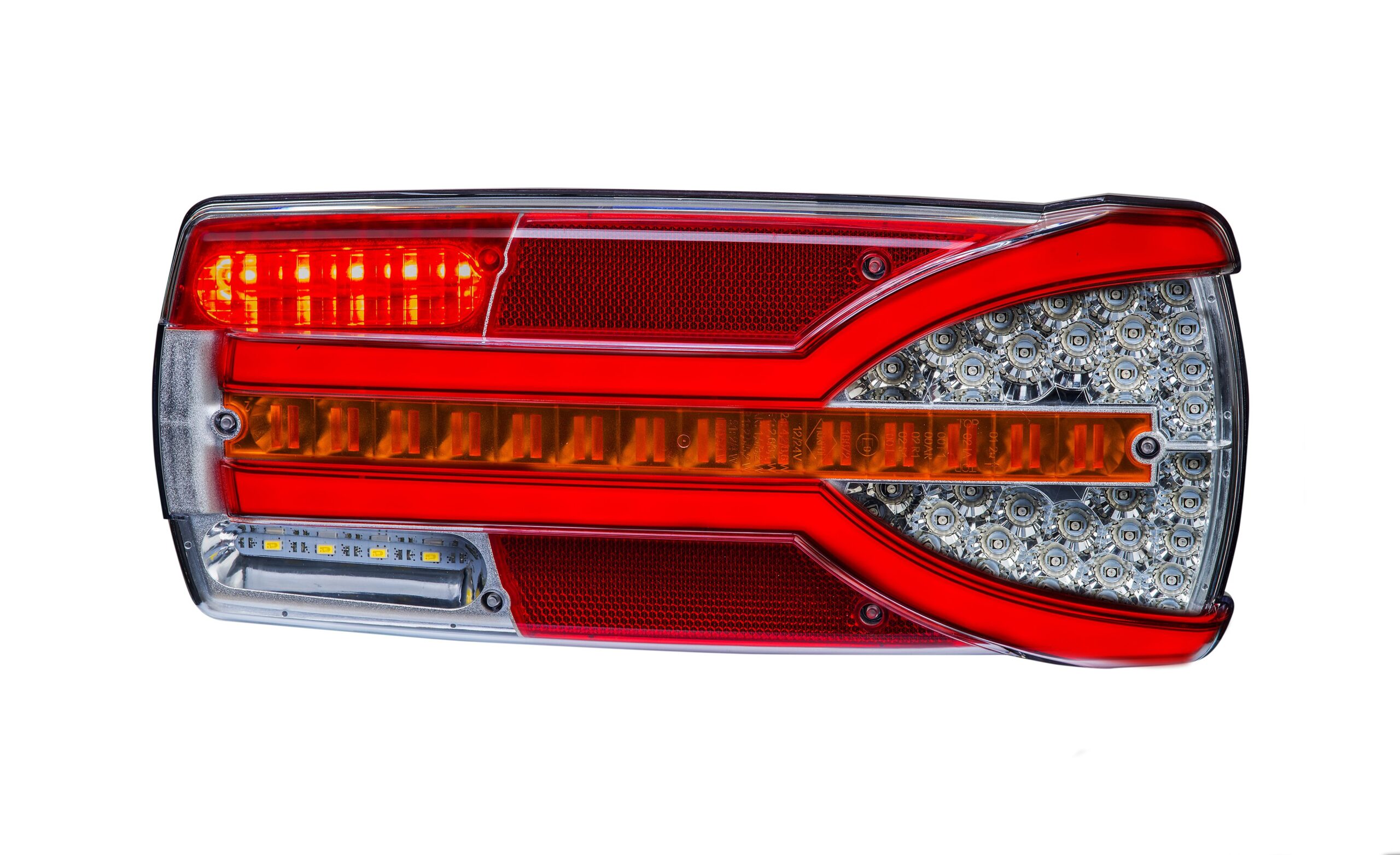

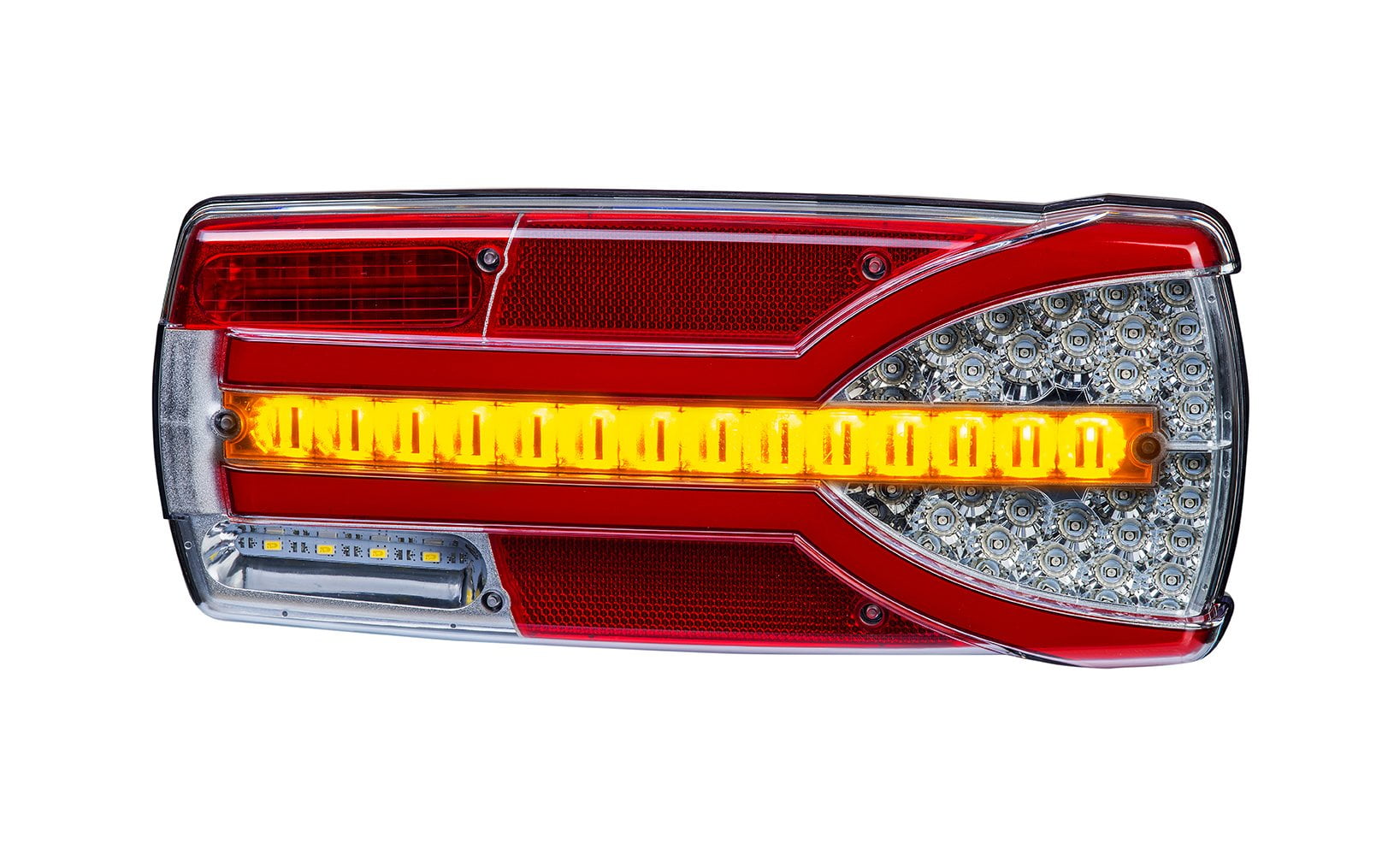

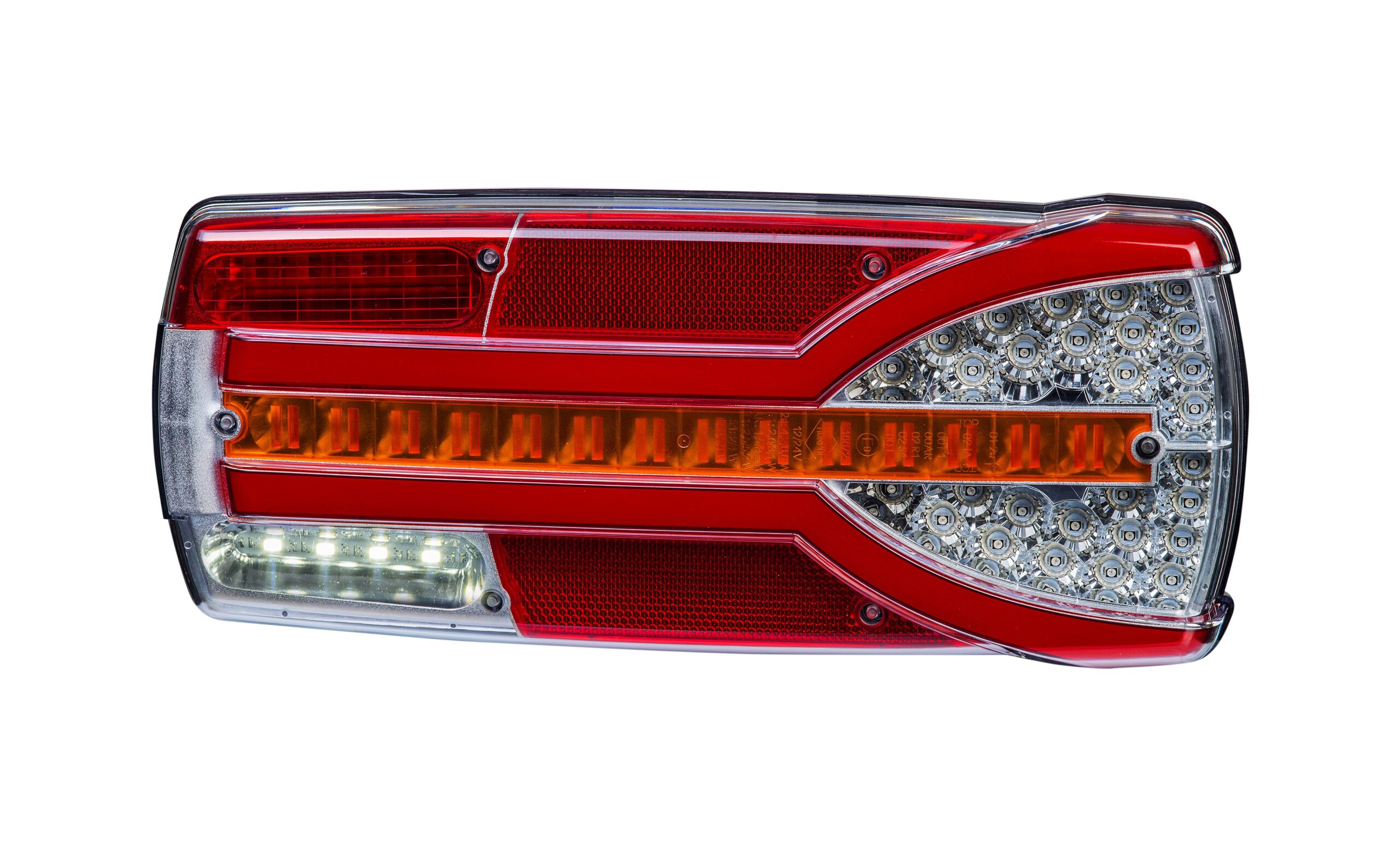

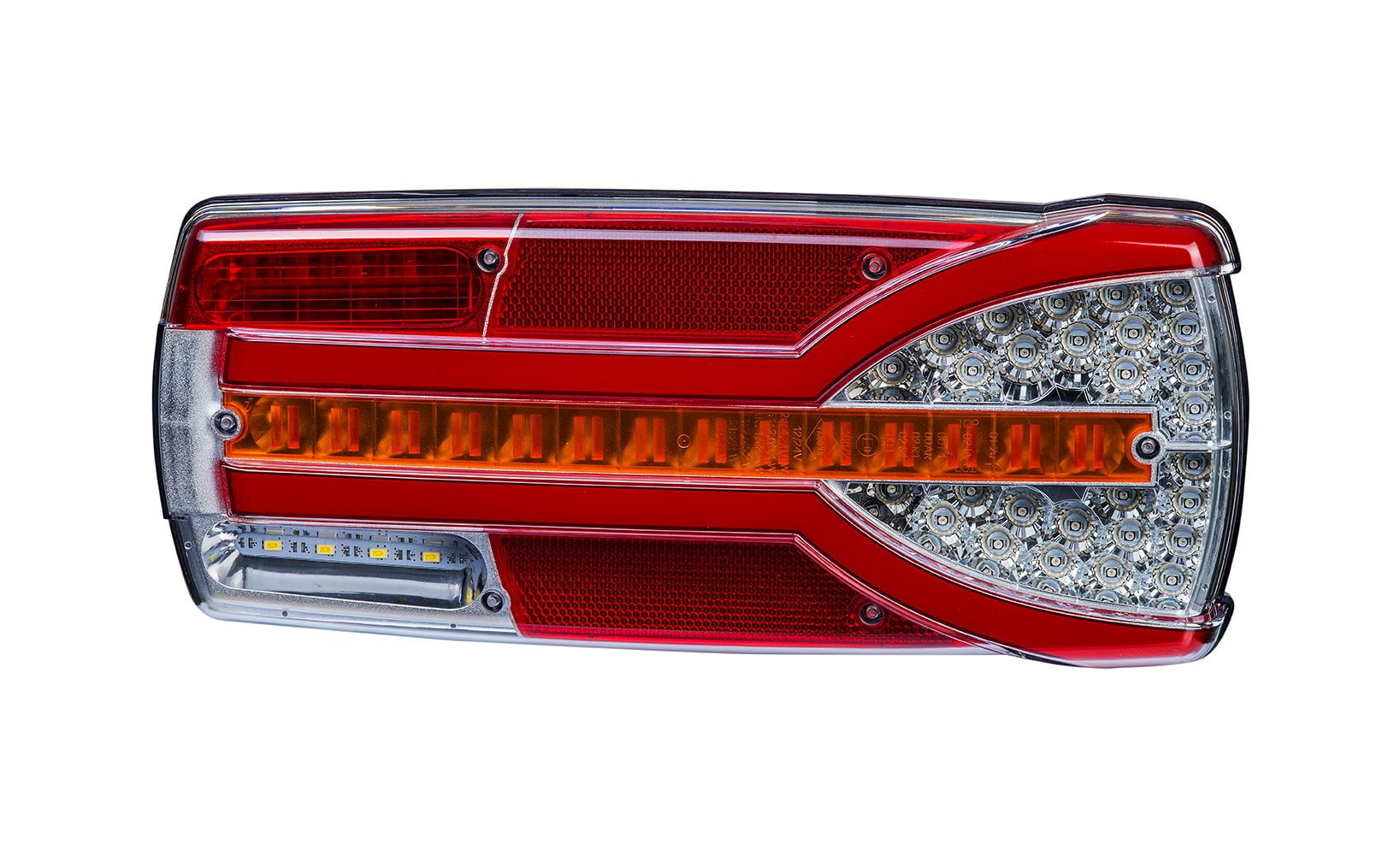

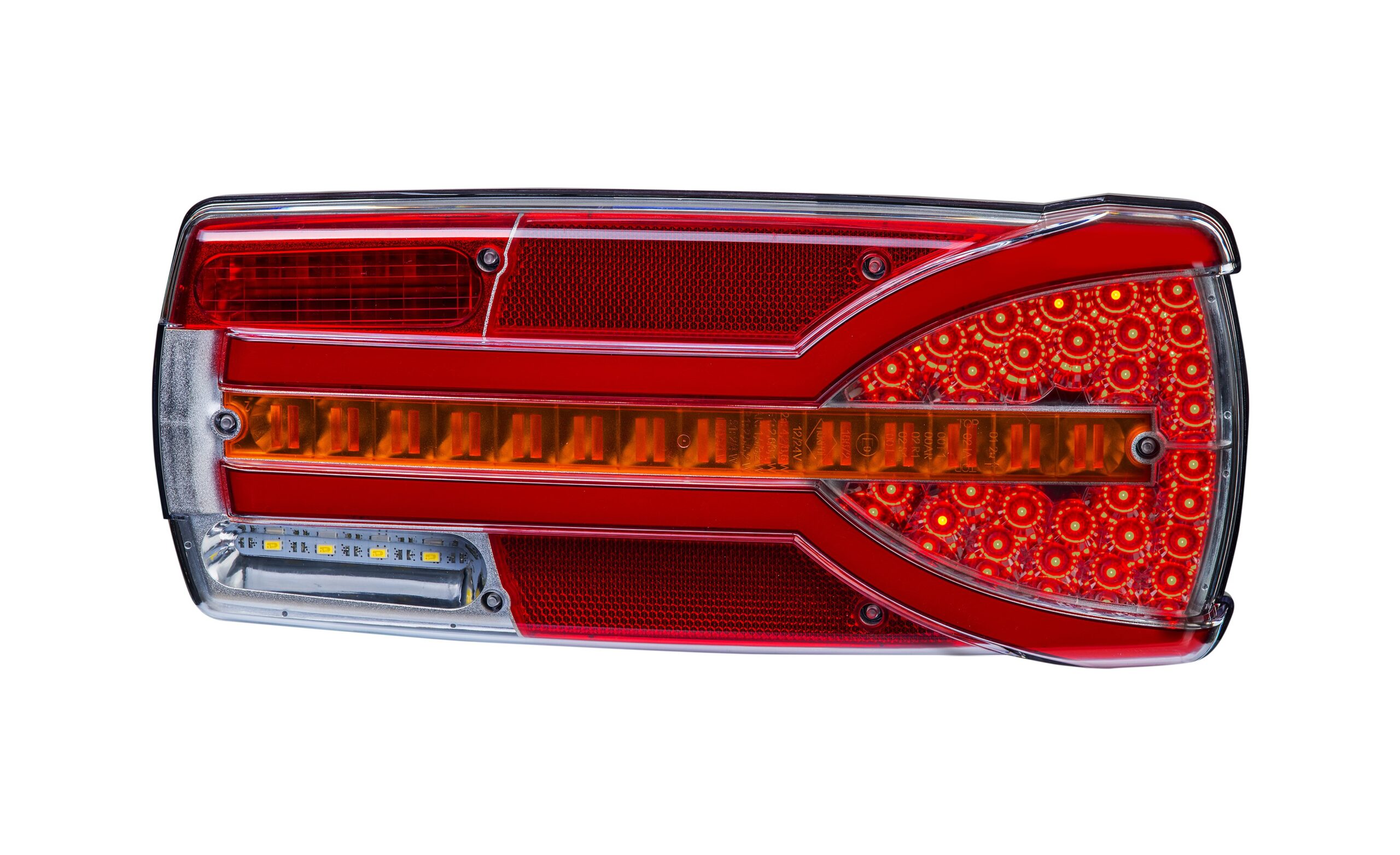

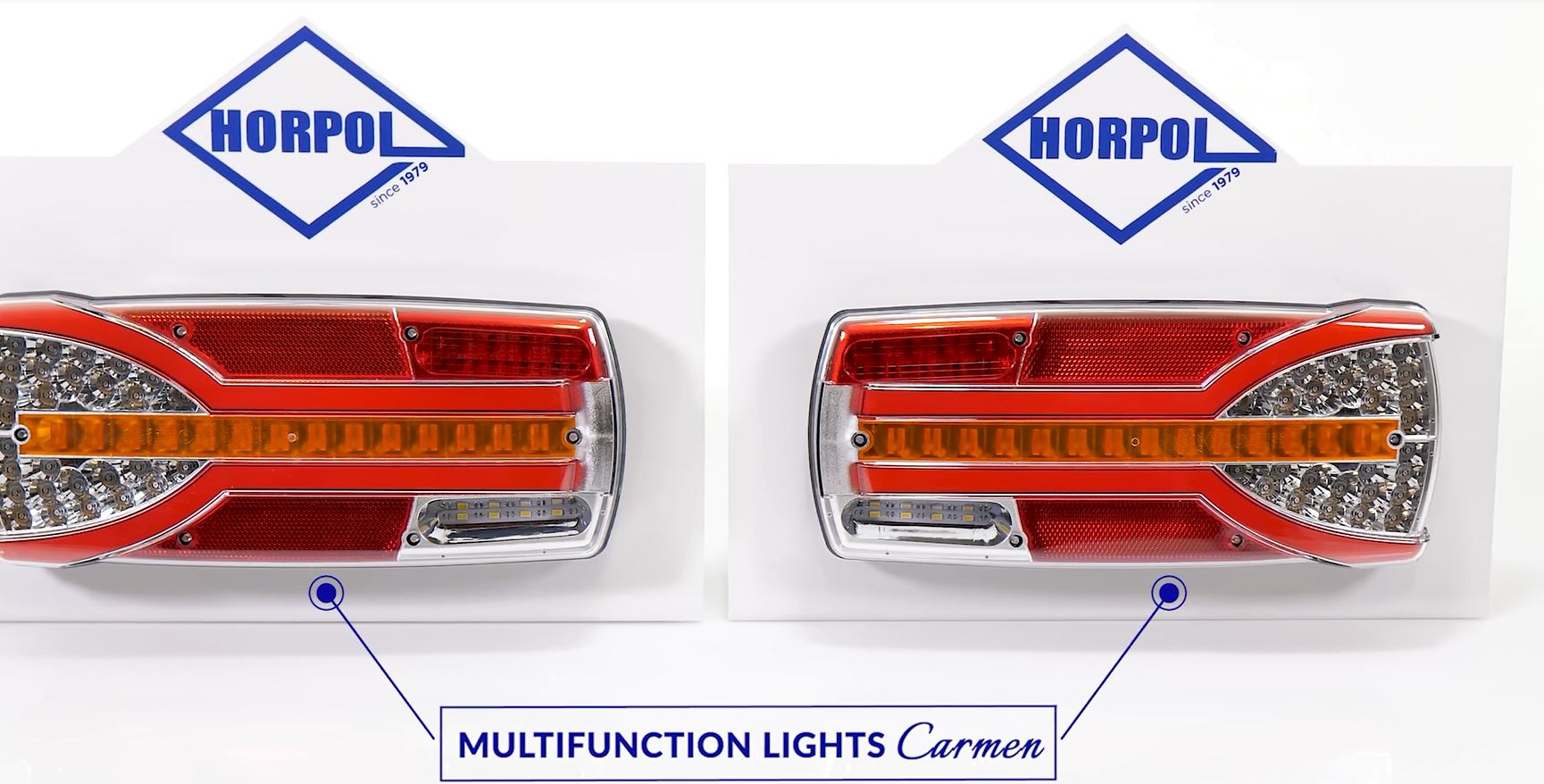

Carmen (LZD 230
1/ right) is a 7-function rear lamp. Its unique shape and innovative design gives the vehicles a unique character and style. Carmen lamp is equipped with a dynamic direction indicator and NEON position light.
Number plate light is powered by a separate cable, which allows you to connect this light regardless of the position light.
Dane techniczne
Light group
HOR 87
Light category
multifunction rear
LED light
yes
Rear position light
yes
Dynamic rear indicator
yes
Number plate light on side
yes
Brake light
yes
Fog light
yes
Reversing light
yes
Reflecting device
yes
Side
right
Supply voltage
12/24 V
Cable
7×0,5 mm2; cable length 1,5 m
Operating temperature range
from -30°C to +50°C
Ingress protection rating
IP 68
