Home Oferta Trailers and tow trucks Marker light with reflective device LD 097

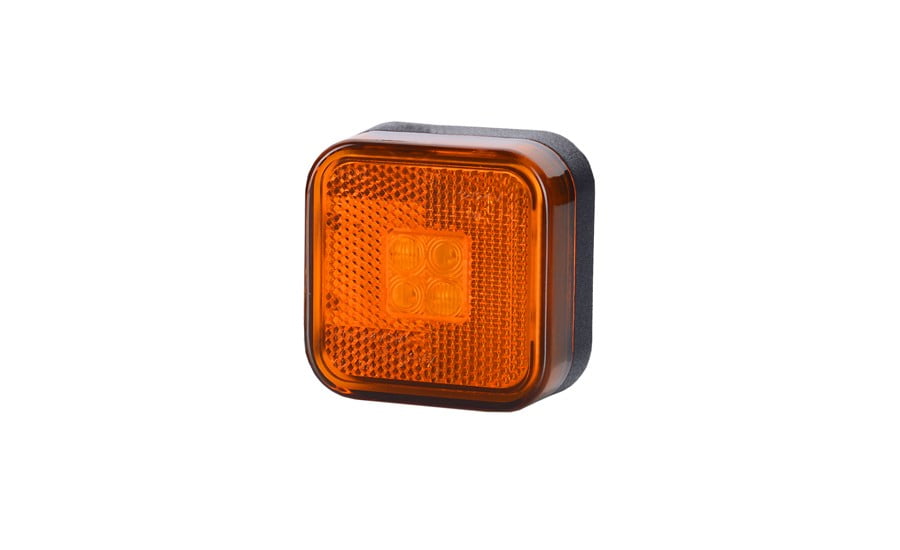

MARKER LIGHT Marker light with reflective device, square (orange).

Available colors:

  • red
  • orange
  • white

Lamp type: LED

Dane techniczne

Light group
HOR 24
Light category
marker
LED light
yes
LED quantity
4
Supply voltage
12/24 V
Reflecting device
yes
Side
universal
Side marker light
yes
Operating temperature range
from -30°C to +50°C

LD 97

Marker light with reflective device

Pliki do pobrania

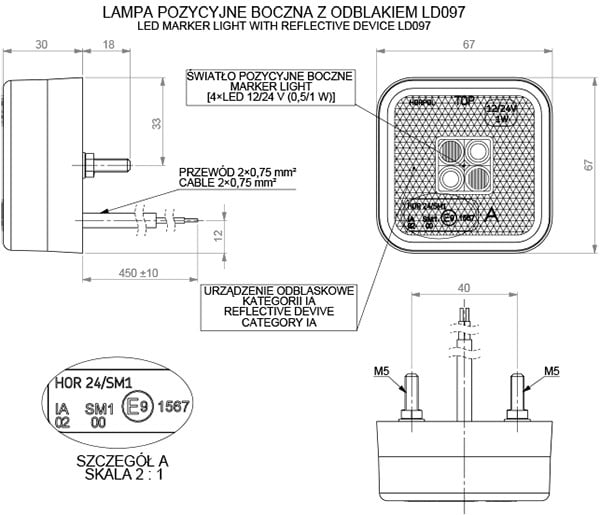

Cała zawartość strony (LD 97.zip) marker-light-with-reflective-device-ld-097-technical-drawing (marker-light-with-reflective-device-ld-097-technical-drawing.pdf) marker-light-with-reflective-device-ld-097-homologation (marker-light-with-reflective-device-ld-097-homologation.pdf) marker-light-with-reflective-device-ld-097-homologation-1 (marker-light-with-reflective-device-ld-097-homologation-1.pdf) marker-light-with-reflective-device-ld-097-homologation-2 (marker-light-with-reflective-device-ld-097-homologation-2.pdf)
