Home Offer Lamp types LED lights Direction indicators Marker light slim XS LKD 2436

Dane techniczne

Light group

HOR 93

Light category

marker

LED light

yes

Side marker light

yes

Side direction indicator

yes

Side

universal

Supply voltage

12/24 V

Power rating

0,9/1,9 W and 1,6/3,3 W

Cable

3×0,5 mm²; cable length 0,5 m

Operating temperature range

from -30°C to +50°C

Ingress protection rating

IP 68

LKD 2436

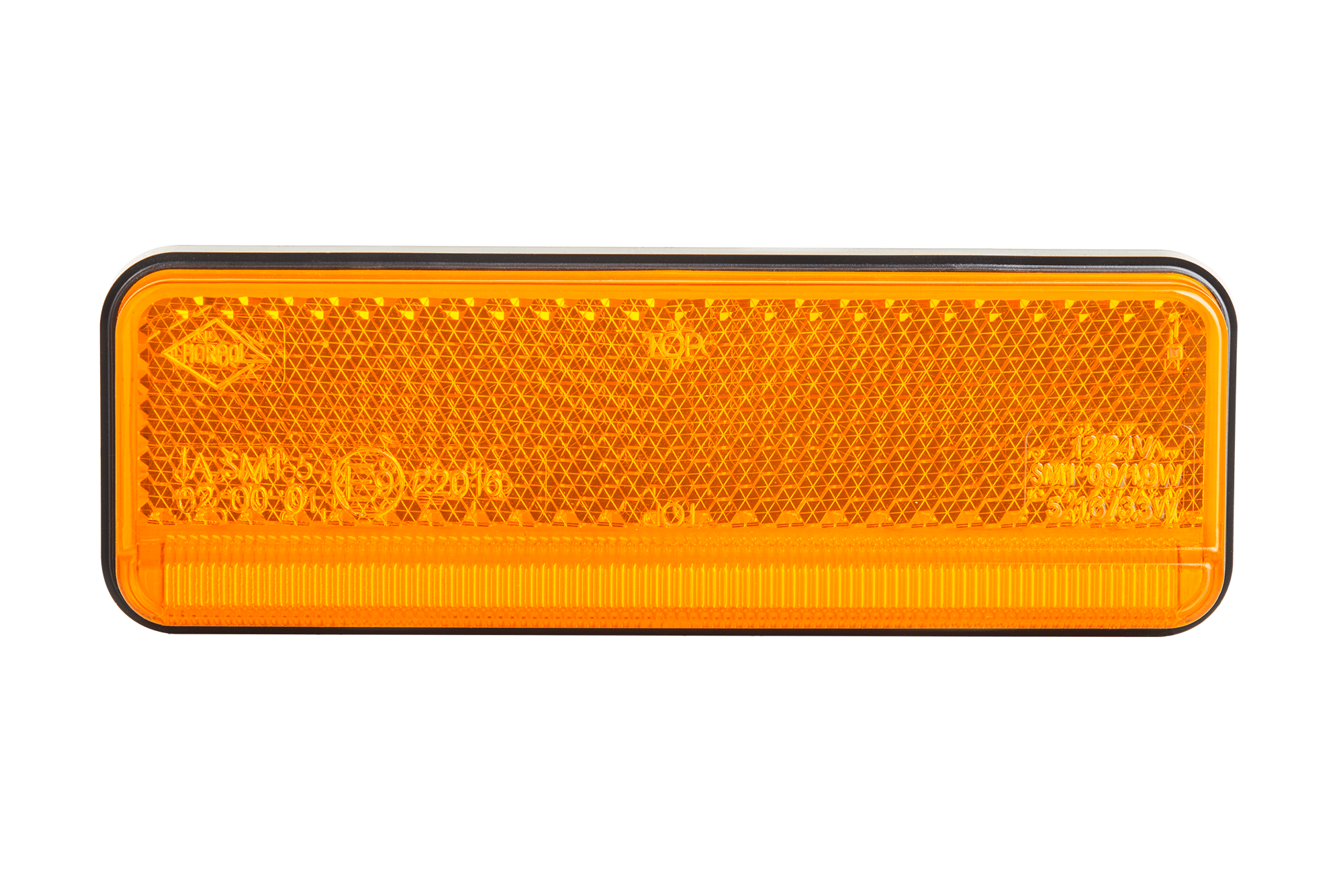

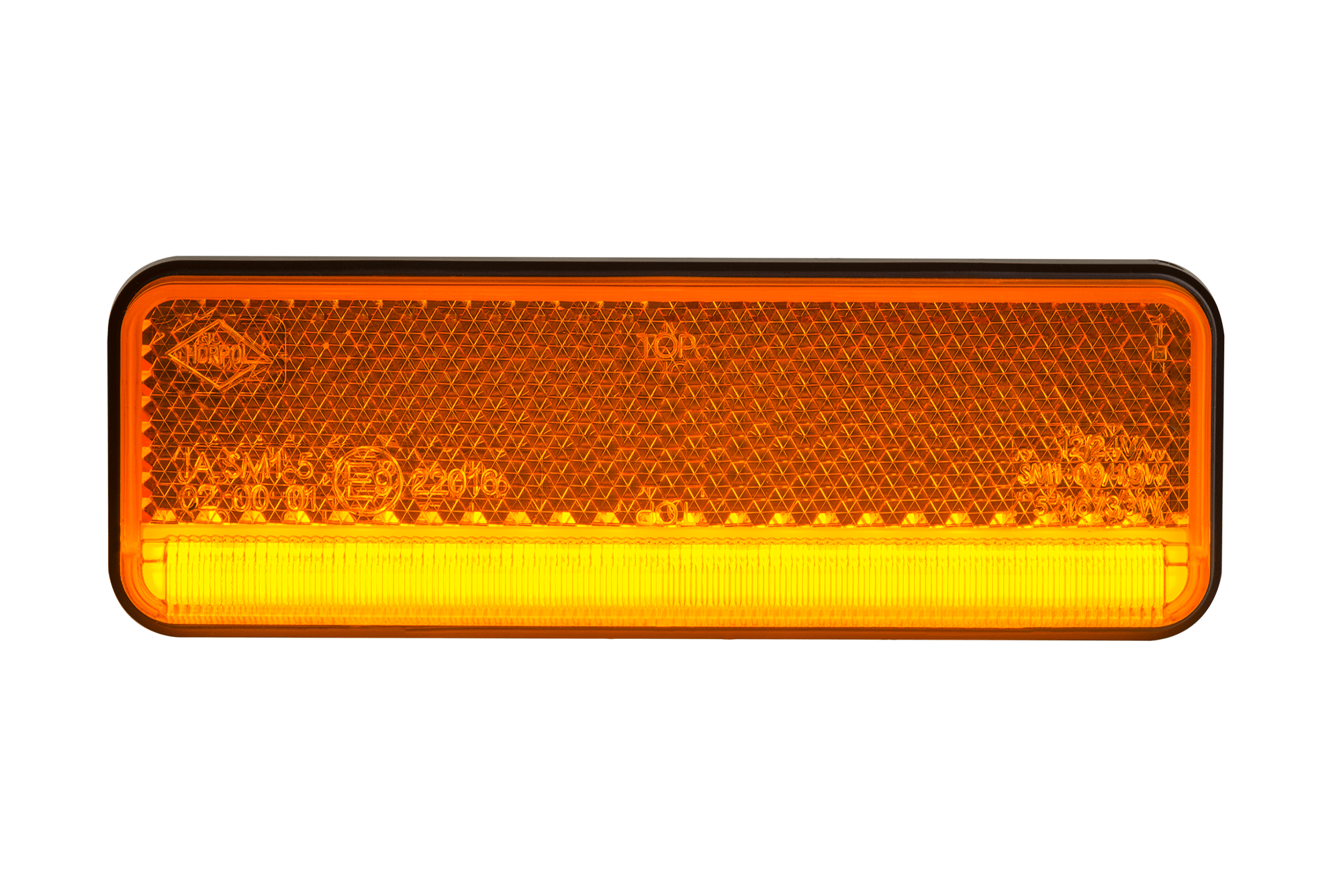

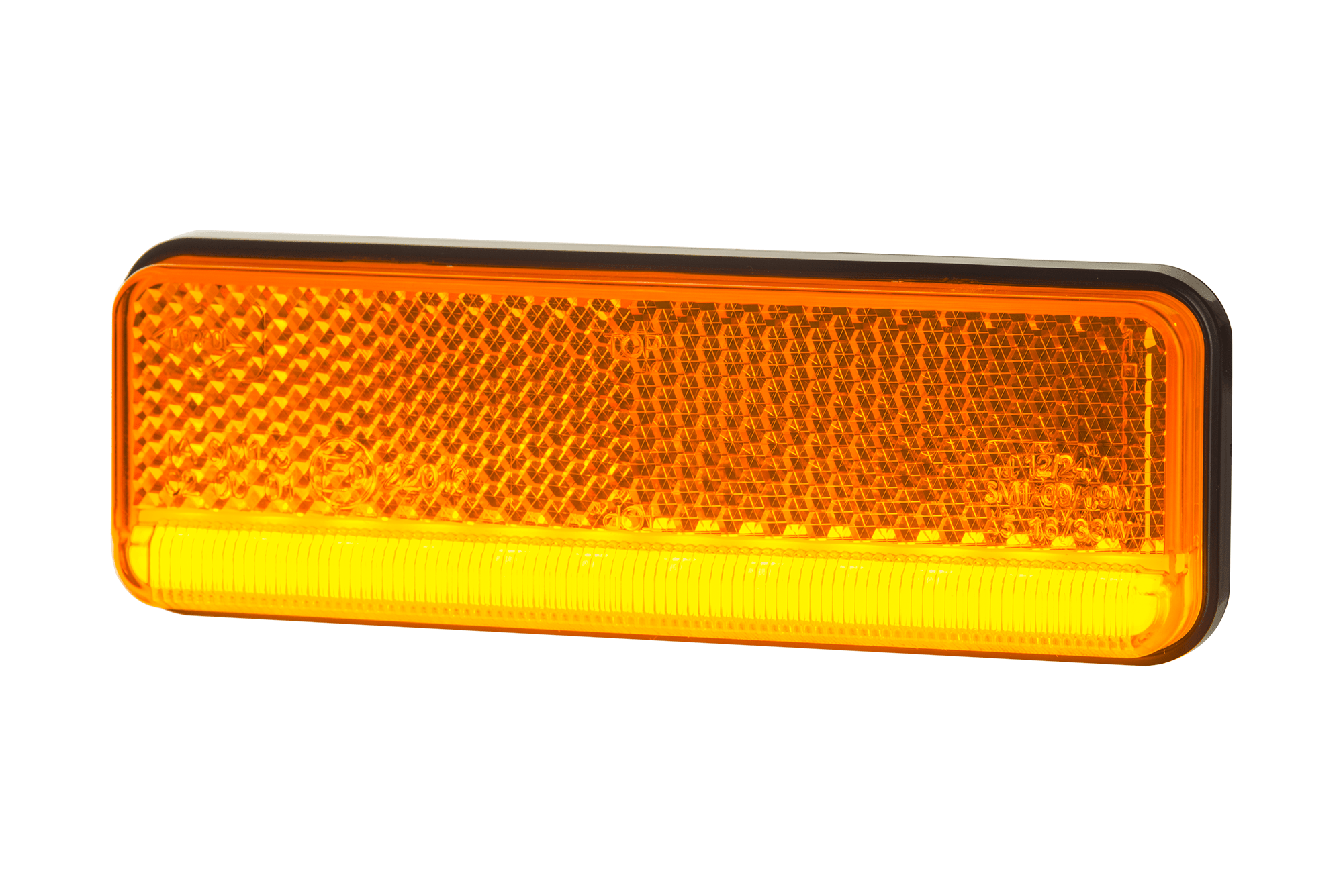

Marker light slim XS

Files to download

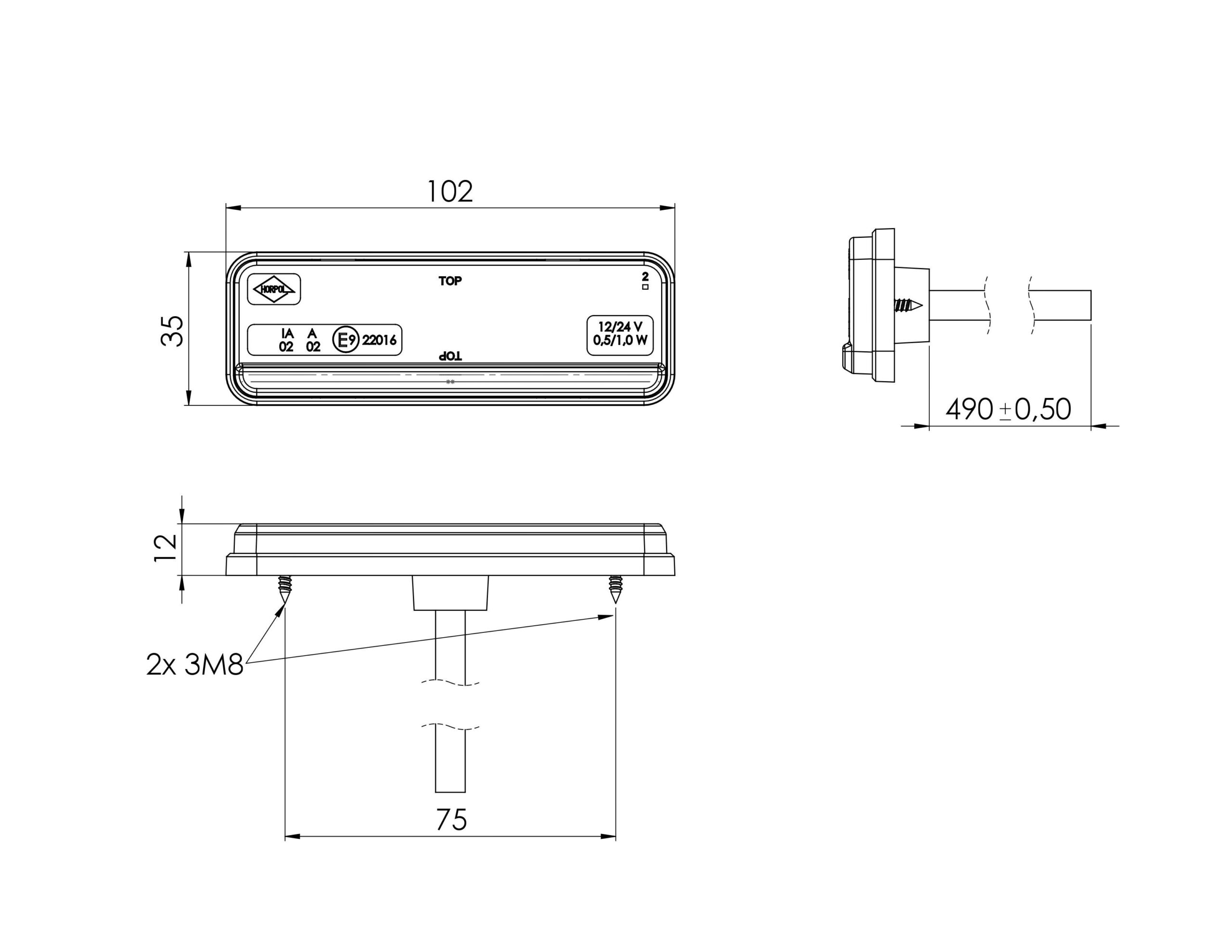

Page content (LKD 2436.zip) marker light slim xs lkd 2436 technical drawing lampa obrysowa slim xs ld 2435 attachment marker light slim xs lkd 2436 technical drawing 1 marker light slim xs lkd 2436 homologation marker light slim xs lkd 2436 technical drawing 2 marker light slim xs lkd 2436 technical drawing 3 marker light slim xs lkd 2436 homologation 1
