Home Oferta Trailers and tow trucks Marker light LD 518/P

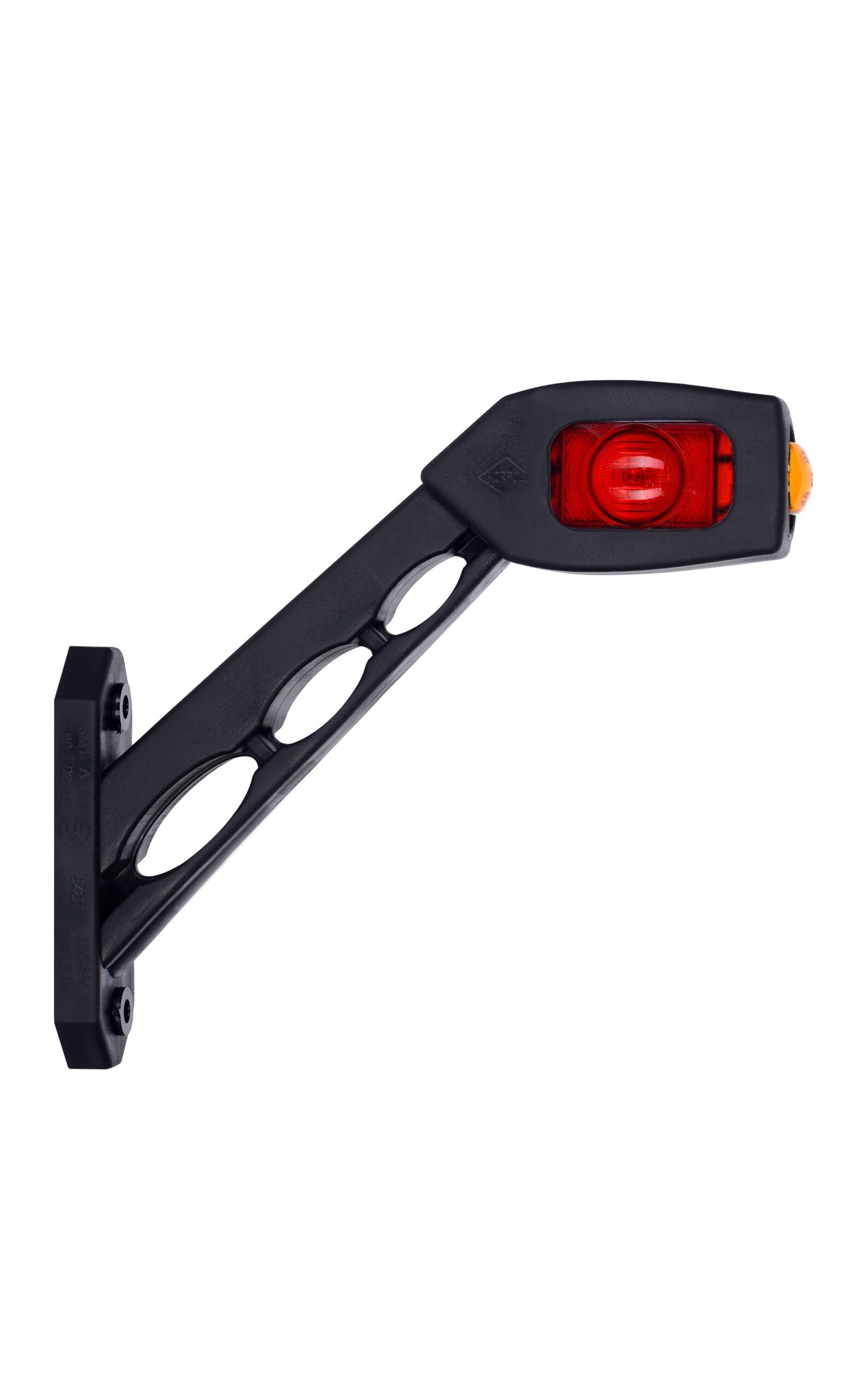

Outline marker light, with long oblique arm (white+red+orange).

Available colors:

  • red
  • orange
  • white

Lamp type: LED

Dane techniczne

Light group
HOR 53
Light category
marker
Ingress protection rating
IP 68
LED light
yes
LED quantity
3
Supply voltage
12/24 V
Cable
2×0,75 mm2; cable length 0,35 m
Side
right
Side marker light
yes
Front position light
yes
Rear position light
yes
Operating temperature range
from -30°C to +50°C

LD 518/P

Marker light

Pliki do pobrania

Cała zawartość strony (LD 518/P.zip) marker-light-ld-518-p-homologation (marker-light-ld-518-p-homologation.pdf) marker-light-ld-518-p-homologation-1 (marker-light-ld-518-p-homologation-1.pdf) marker-light-ld-518-p-homologation-2 (marker-light-ld-518-p-homologation-2.pdf) marker-light-ld-518-p-homologation-3 (marker-light-ld-518-p-homologation-3.pdf) marker-light-ld-518-p-technical-drawing (marker-light-ld-518-p-technical-drawing.pdf)
