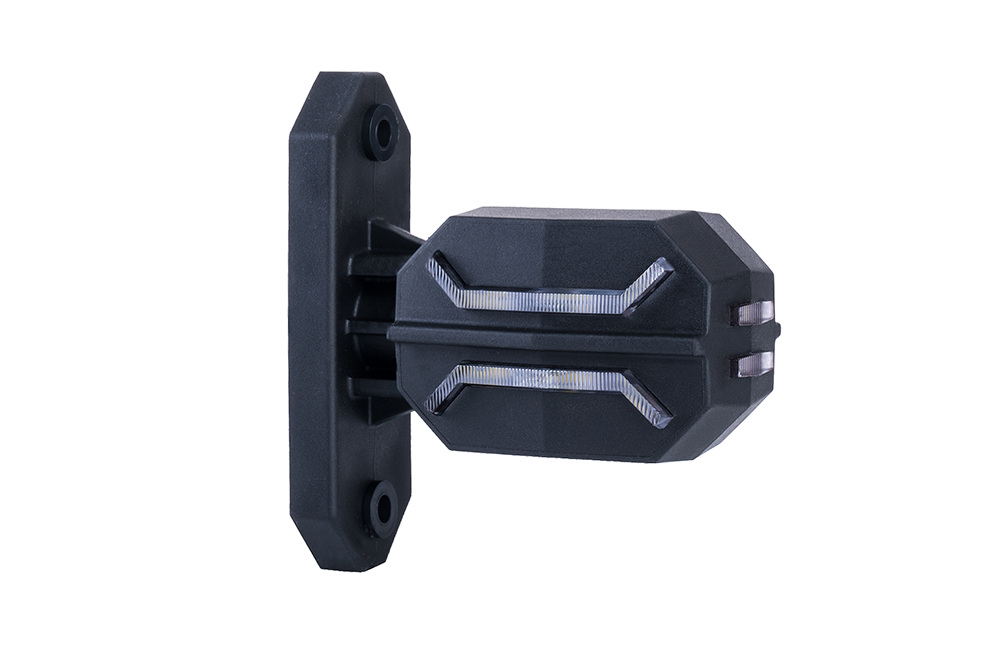

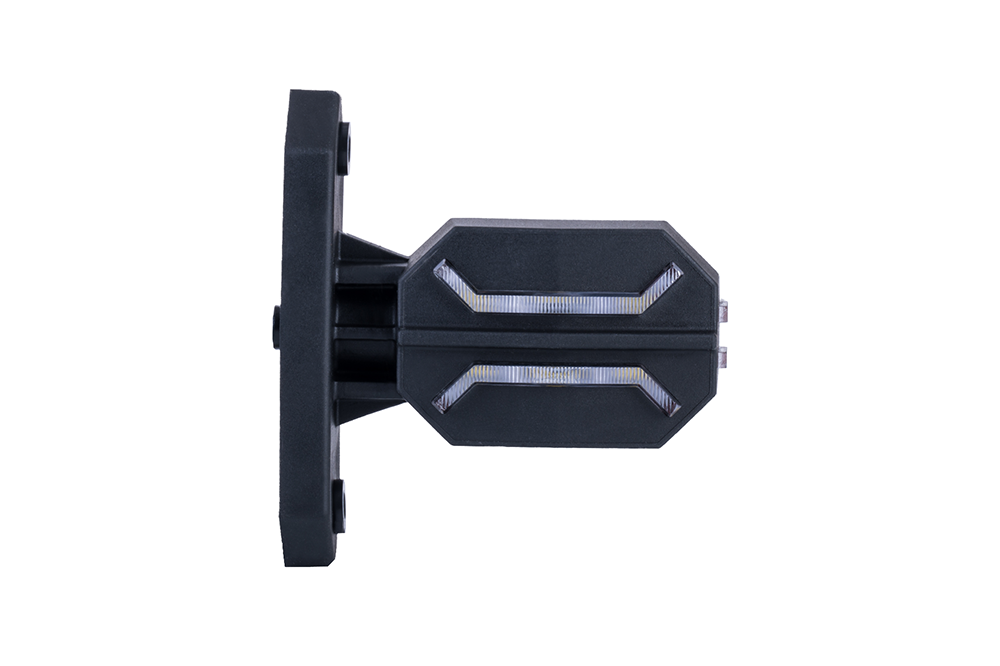

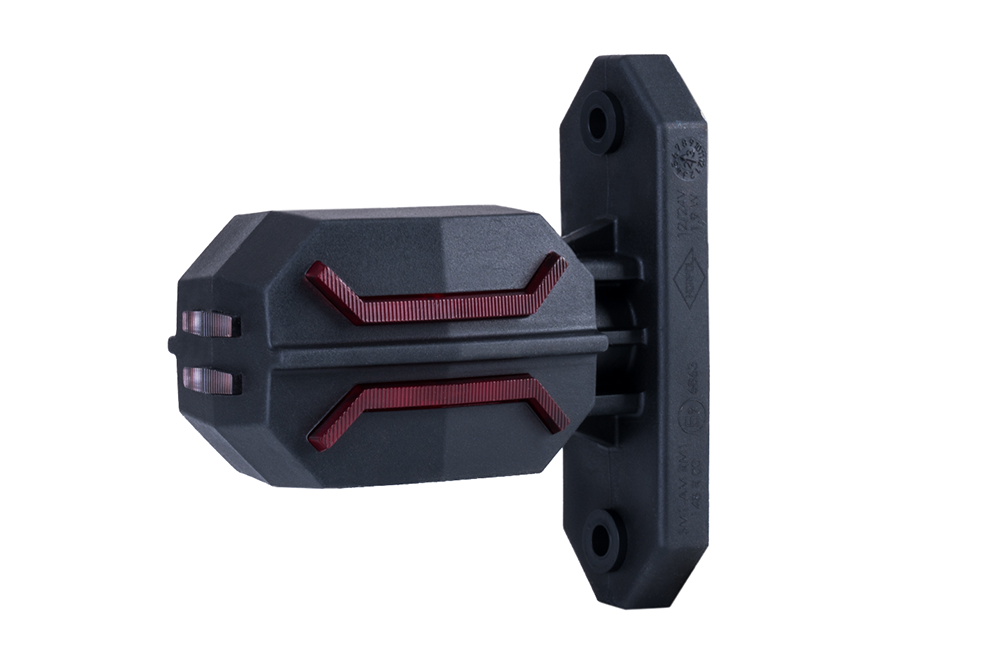

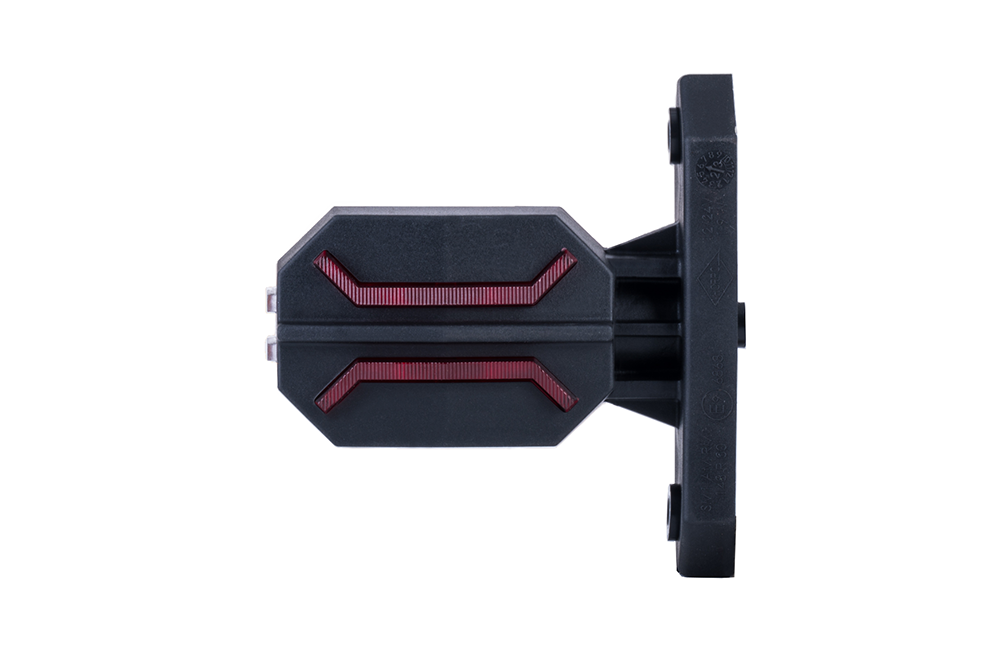

LD 3065 is a three-function marker lamp on a short straight arm. The lamp is universal in assembly, it can be installed both on the left and right side of the vehicle. LD 3065 operates on a voltage of 12/24 V and is characterized by low power consumption. Only branded diodes are used for production, which definitely distinguish the quality of lighting and attractively emphasize the outline of a moving vehicle. LD 3063 with an interesting design is intended for use in trucks and agricultural machines, trailers and semi-trailers.

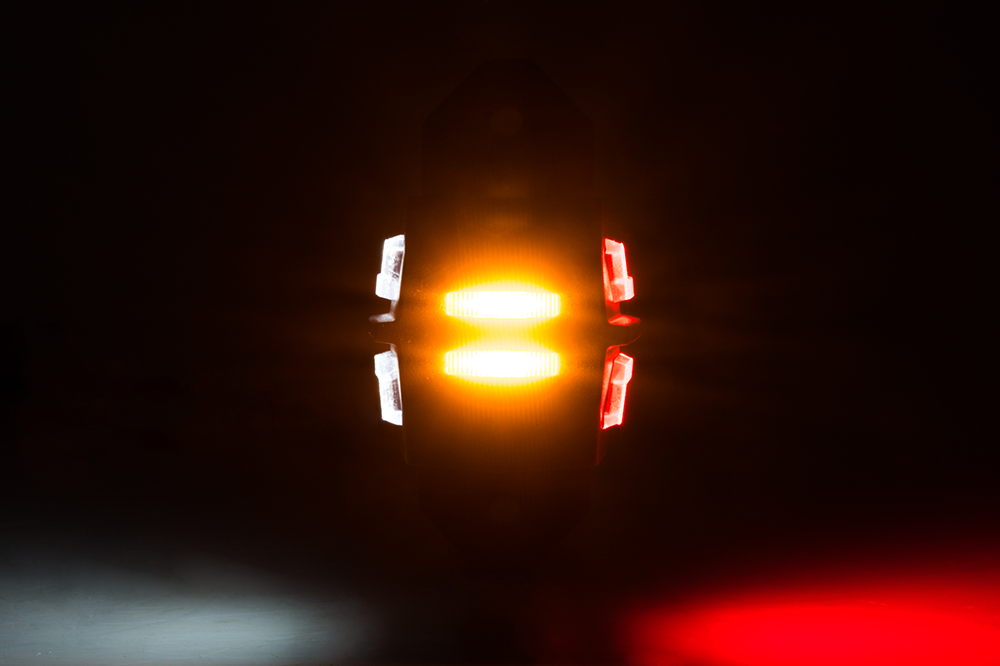

Lamp functions:

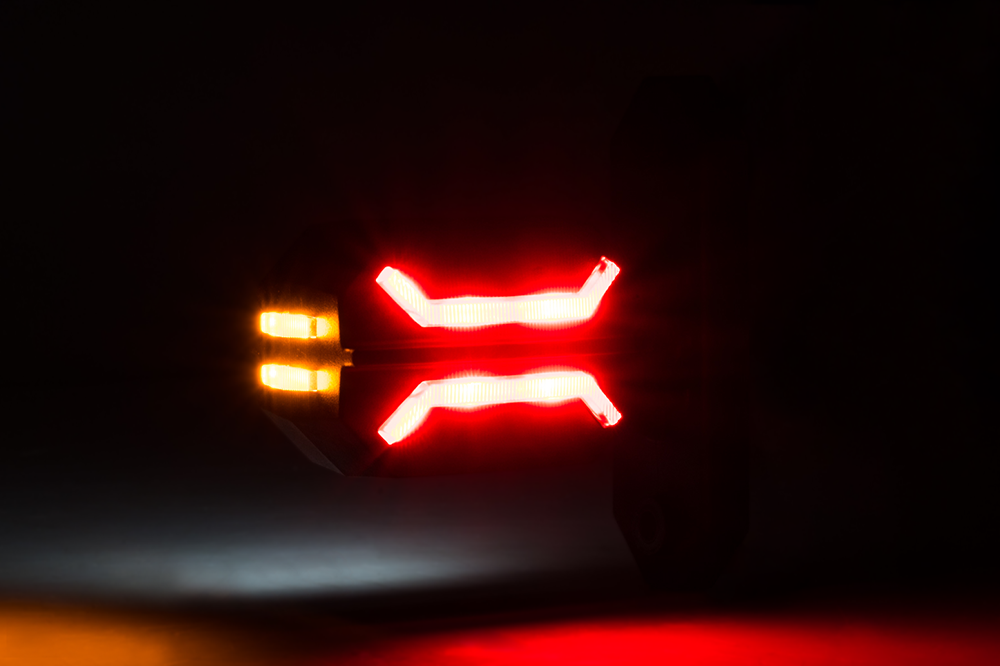

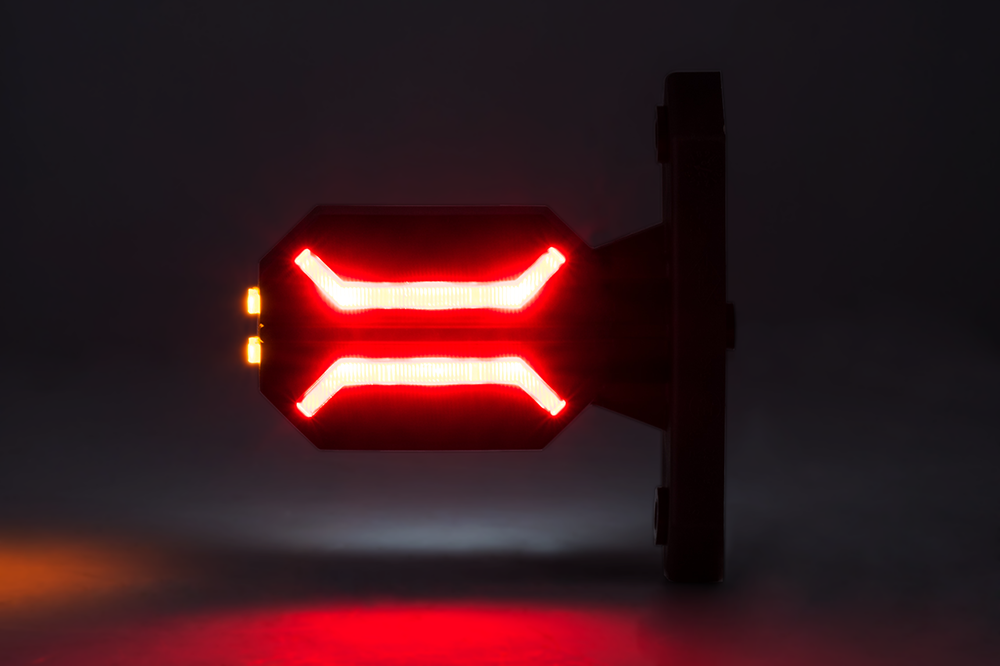

– rear position light (red light color) – 6 diodes

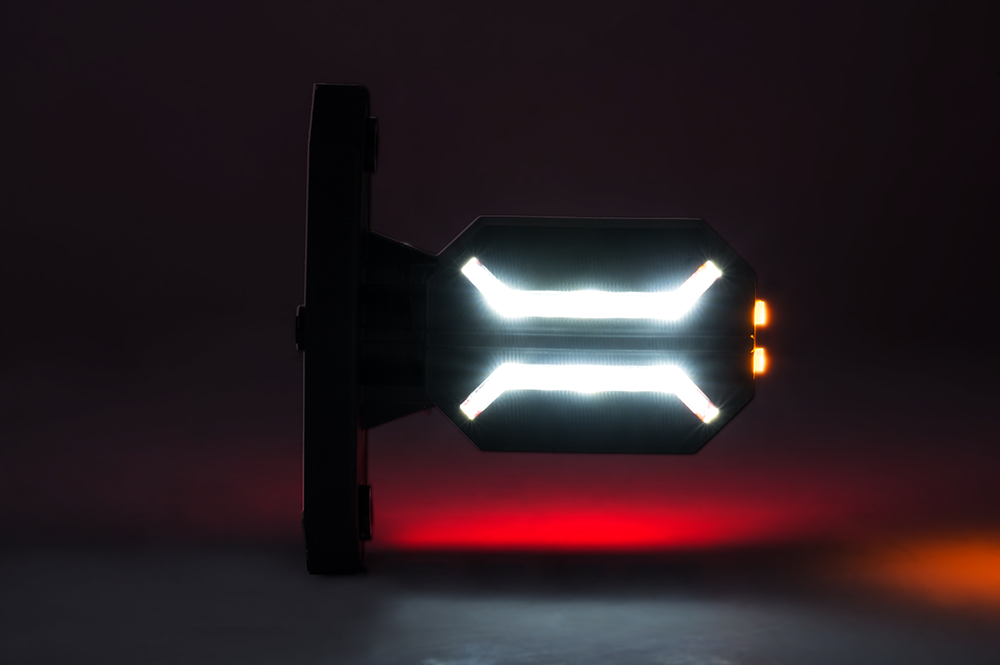

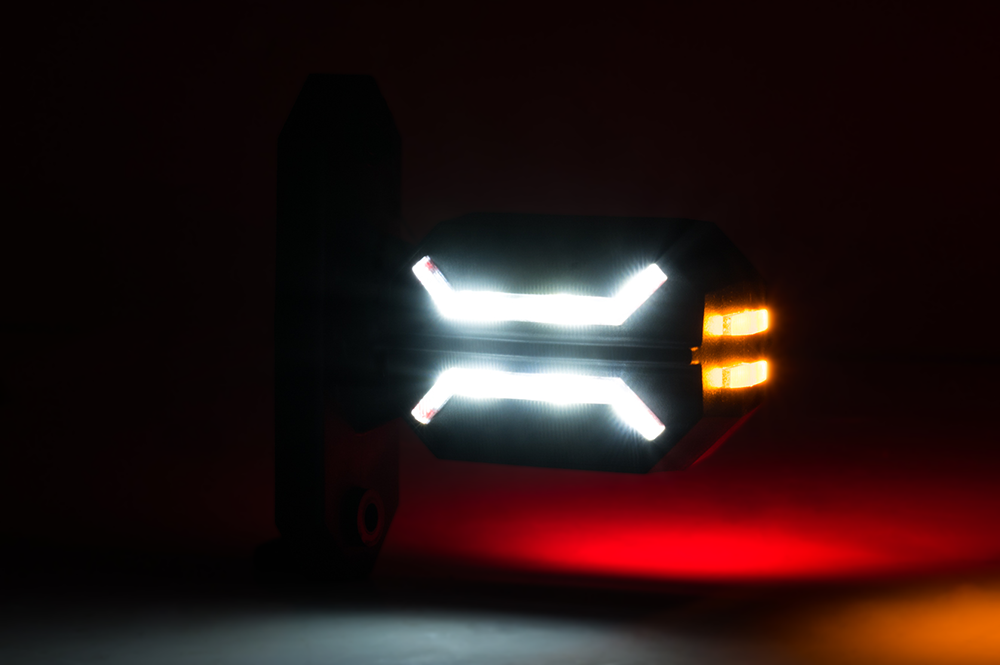

– front position light (white light color) – 6 diodes
– side marker light (orange light color) – 4 diodes

Product is fully hermetic (ingress protection rating IP 68), and the operating temperature range is from -30 degrees C to +50 degrees C.

Ensure your safety on the road! Identify your vehicle with LED new arrivals by #Horpol!

Dane techniczne

Light group

HOR 134

Light category

marker

Ingress protection rating

IP 68

LED light

yes

LED quantity

Power rating

1,9 W

Supply voltage

12/24 V

Cable

2×0,75 mm2; cable length 0,6 m

Side

universal

Side marker light

yes

Front position light

yes

Rear position light

yes

Arm

yes

Operating temperature range

from -30°C to +50°C

LD 3065

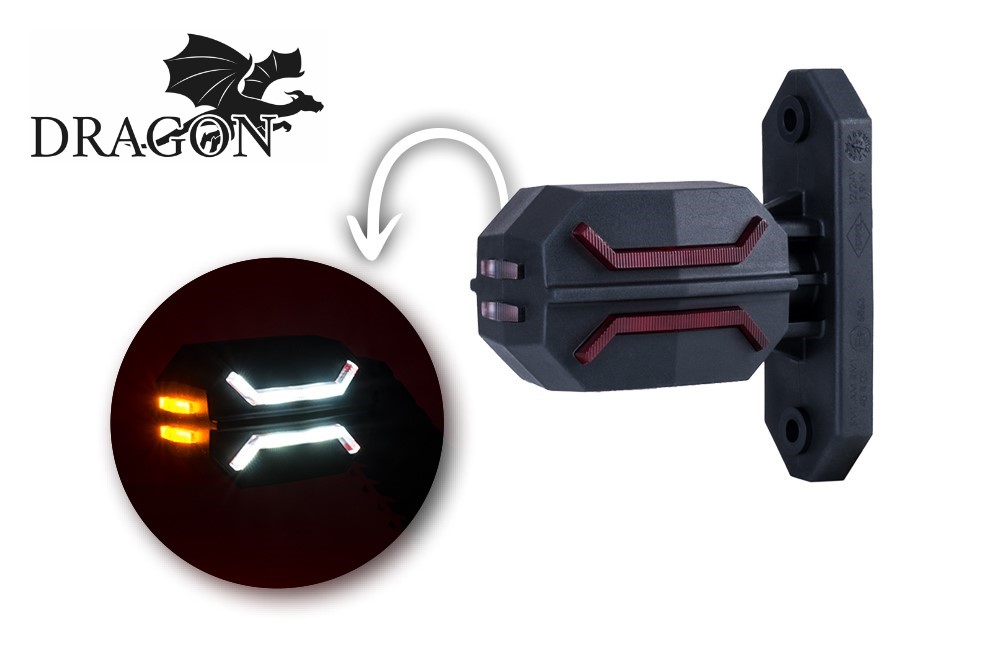

Marker light Dragon

Pliki do pobrania

Cała zawartość strony (LD 3065.zip) Marker-lights-HOR-134-technical-drawing (Marker-lights-HOR-134-technical-drawing.pdf) Marker-light-HOR-134-approval-R10 (Marker-light-HOR-134-approval-R10.pdf) Marker-light-HOR-134-drawings-ext.-01 (Marker-light-HOR-134-drawings-ext.-01.pdf) Marker-light-HOR-134-approval-ext.-01 (Marker-light-HOR-134-approval-ext.-01.pdf)
