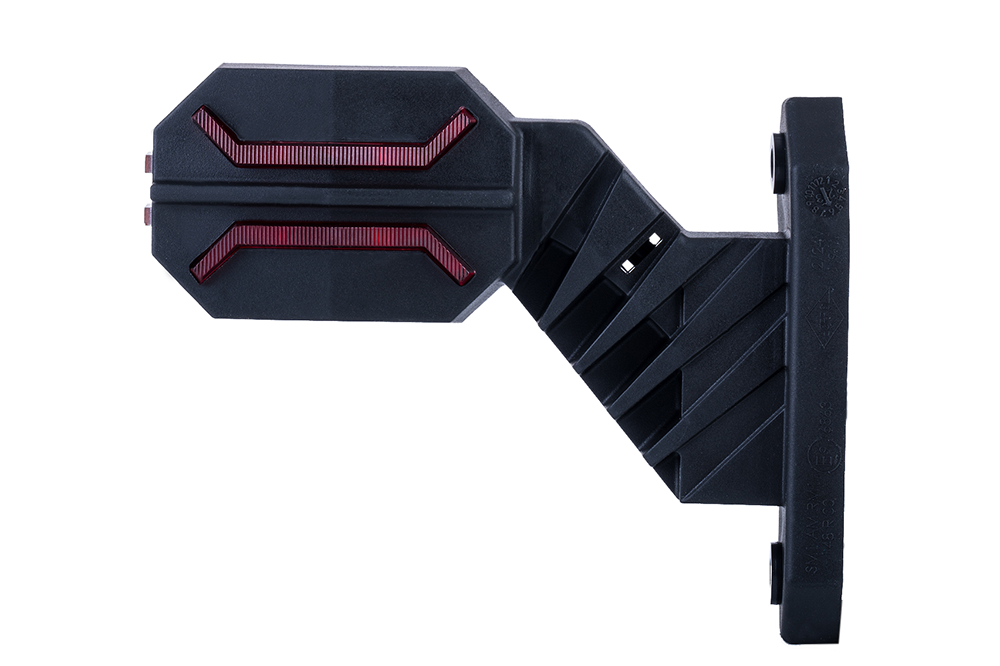

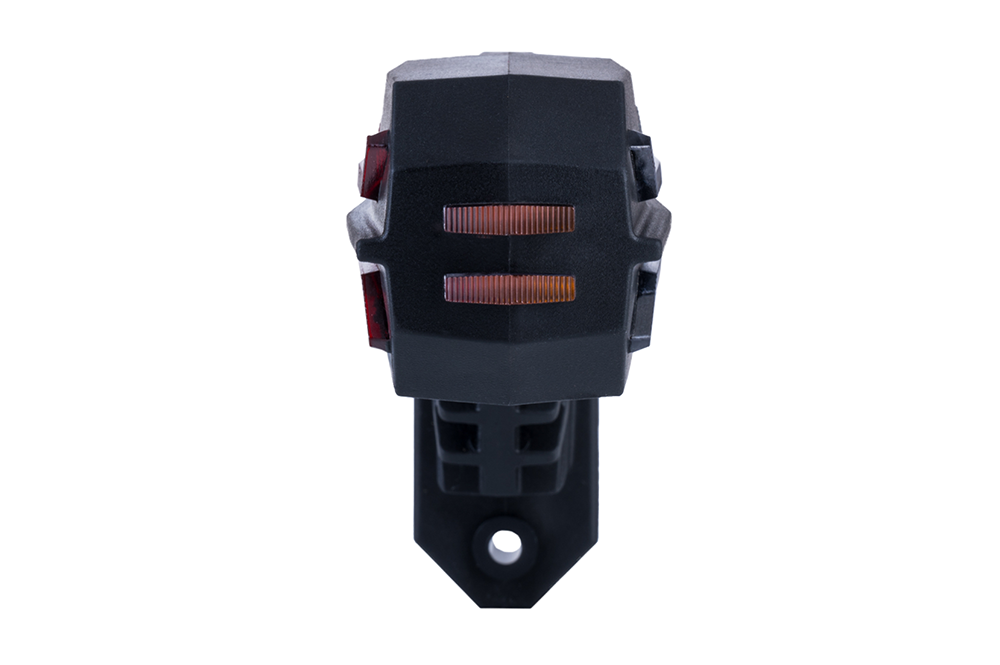

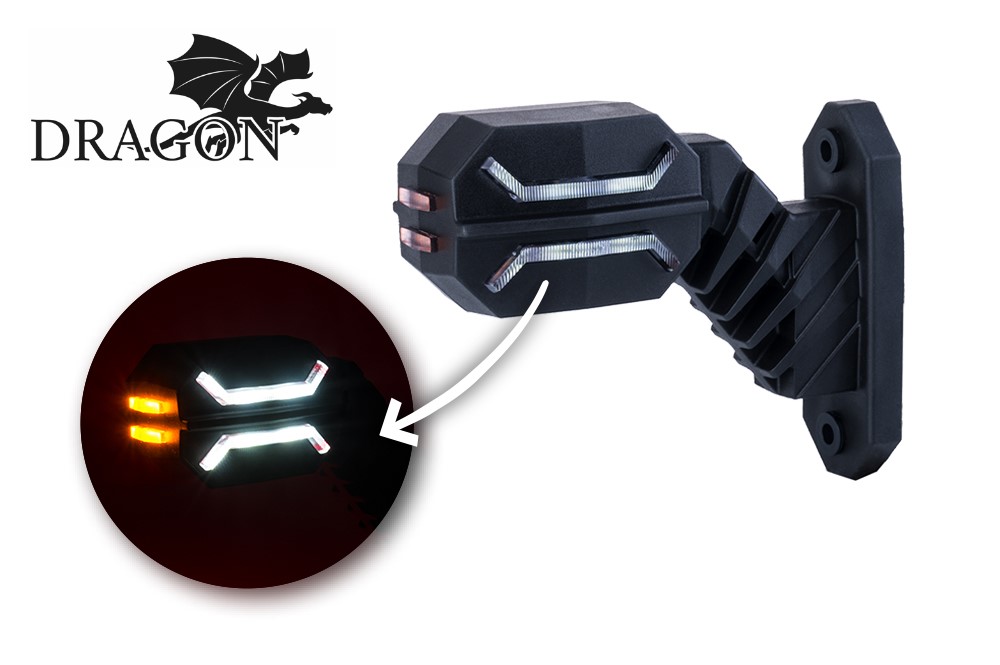

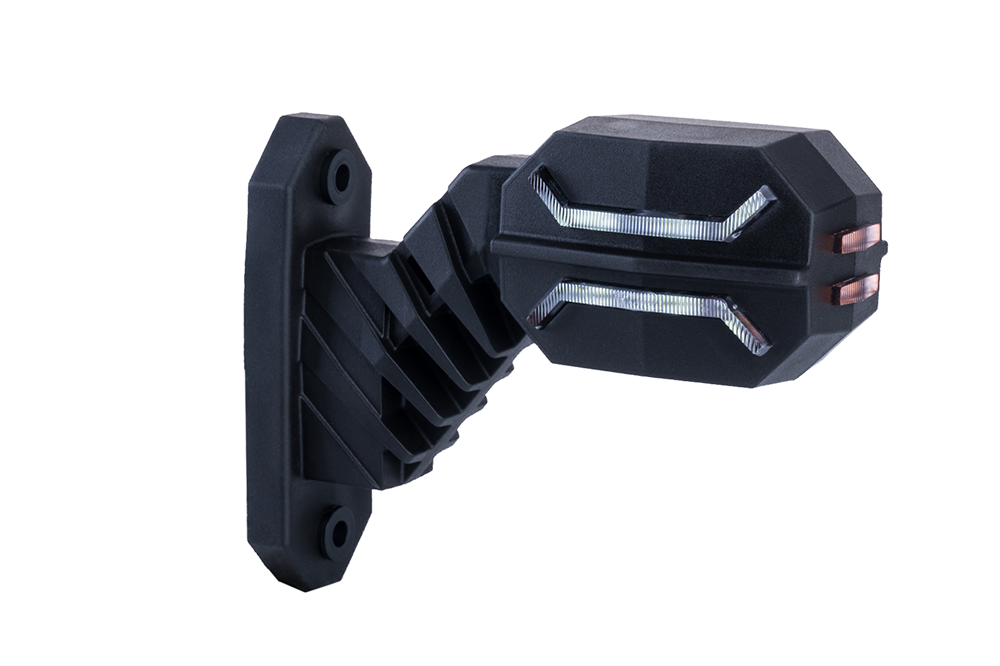

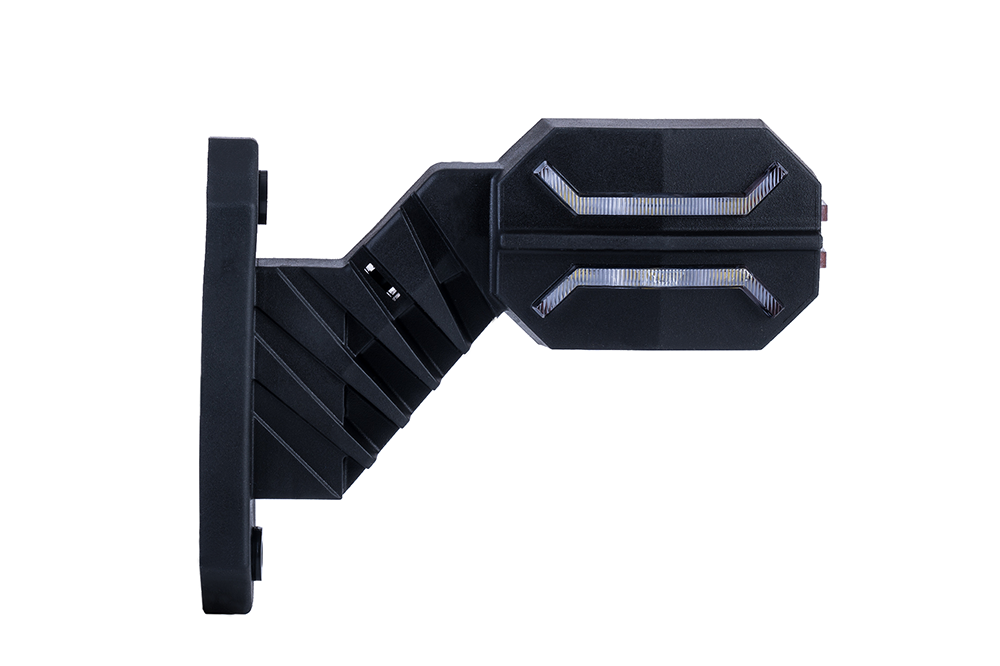

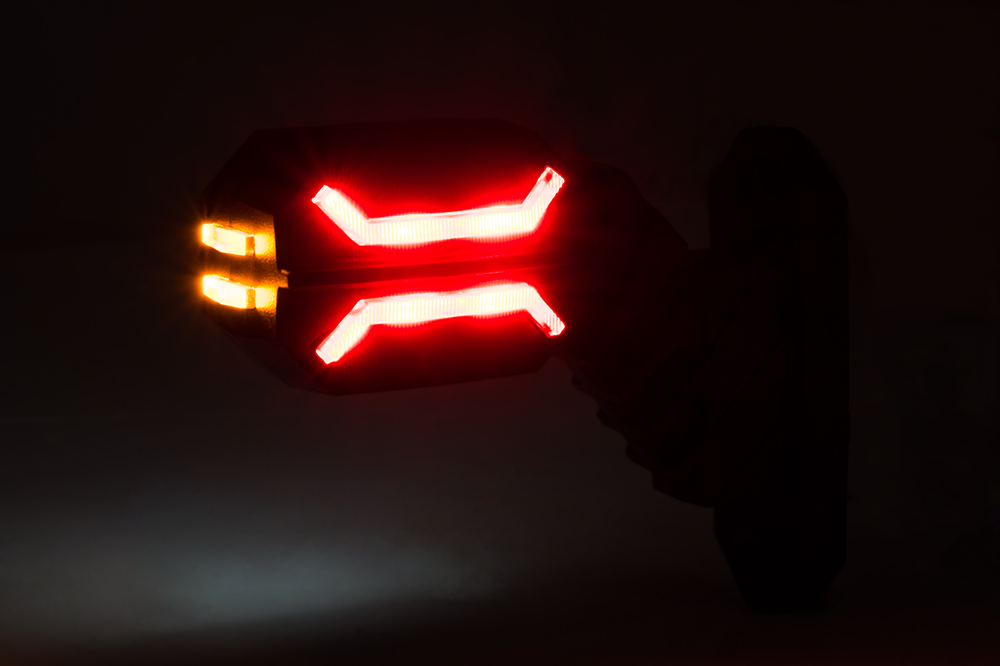

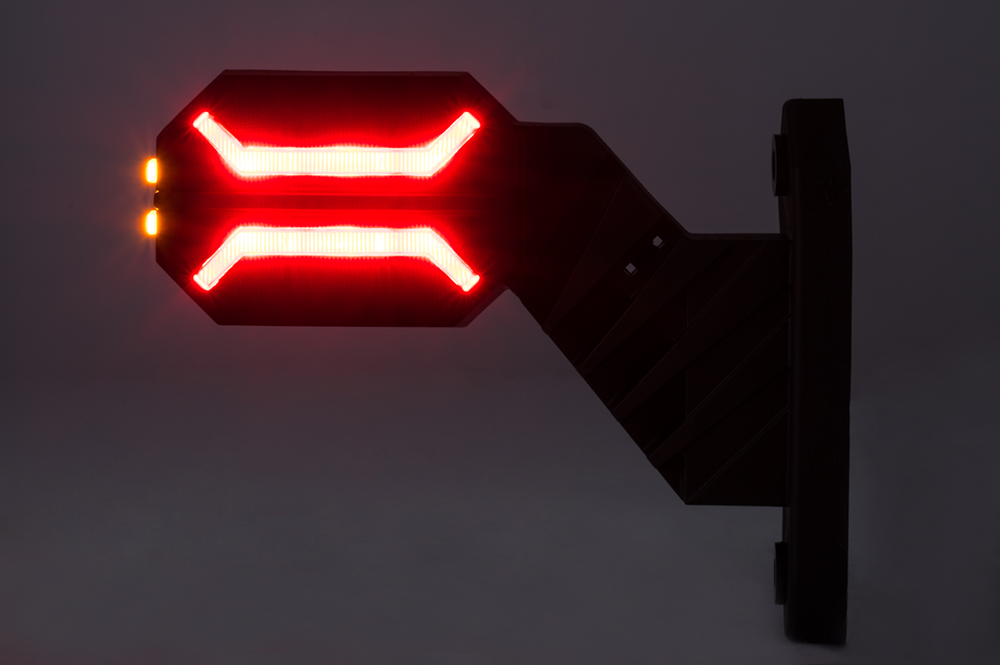

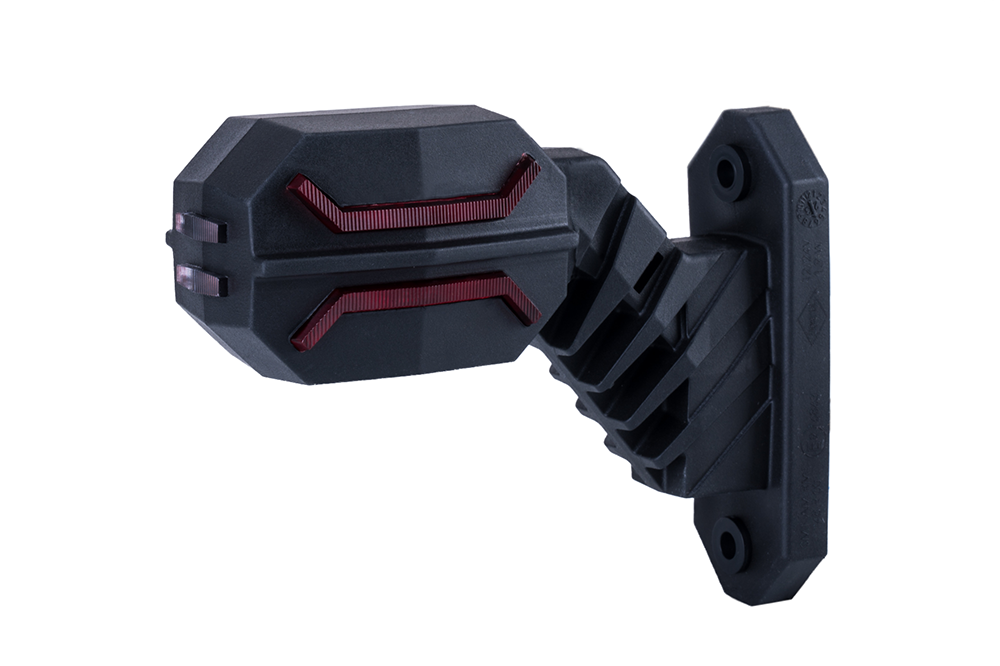

LD 3064 is a three-function marker lamp on a short diagonal arm, designed to be mounted on the right side of the vehicle. The lamp operates on a universal voltage of 12/24 V and is characterized by low power consumption. Only branded diodes are used for production, which definitely distinguish the quality of lighting and attractively emphasize the outline of a moving vehicle. LD 3064 with an interesting design is intended for use in trucks and agricultural machines, trailers and semi-trailers.

Lamp functions:

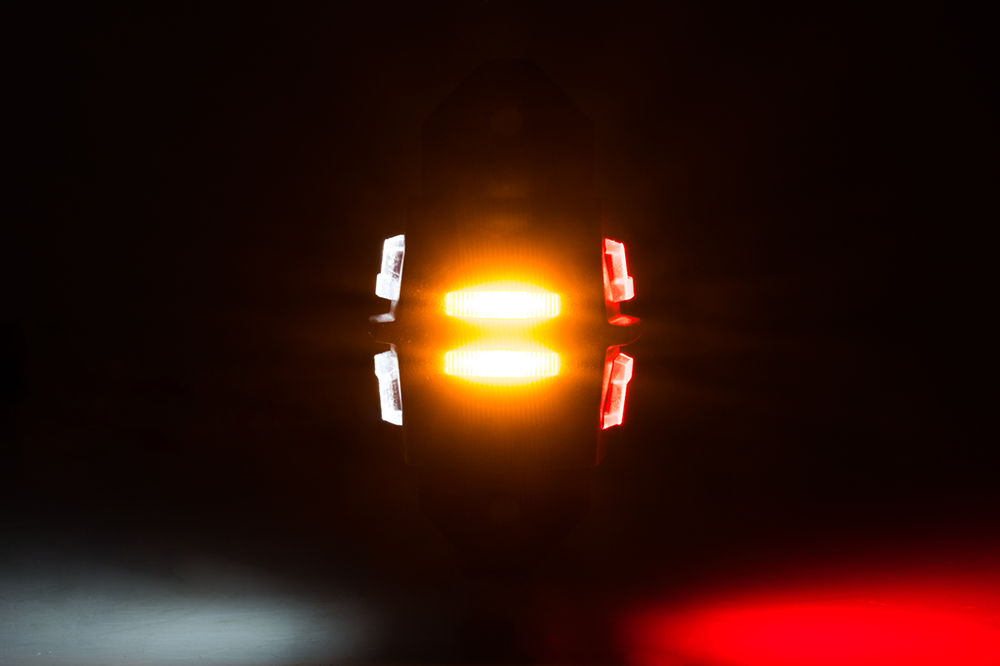

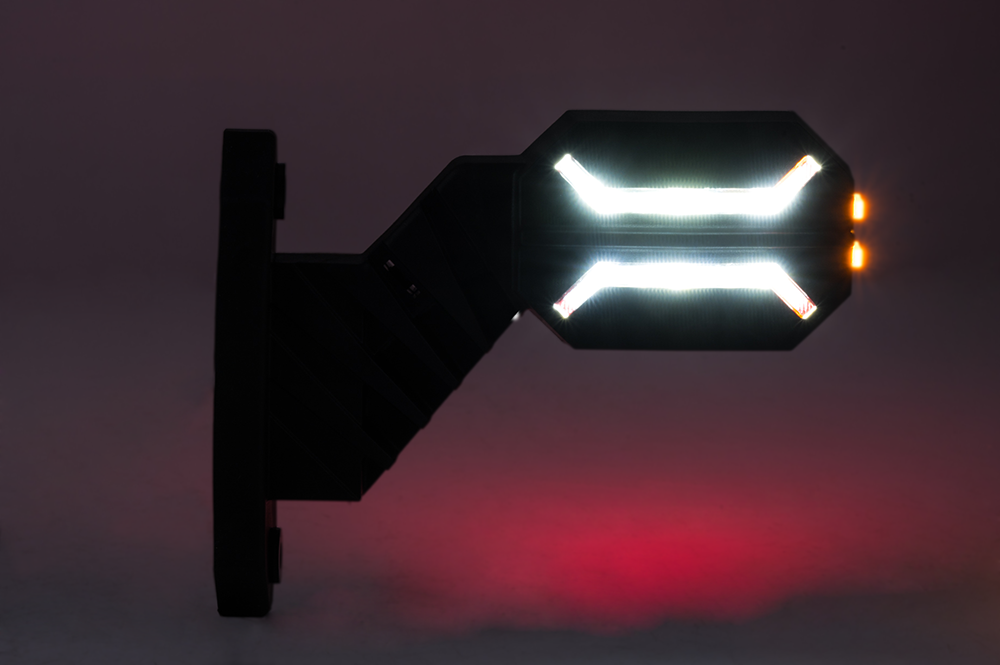

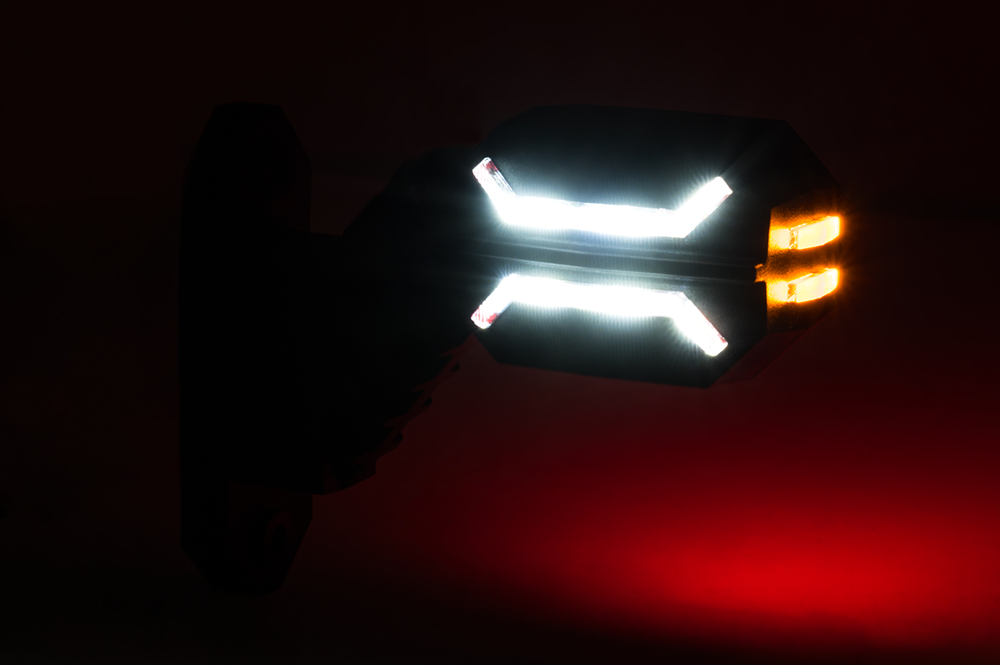

– rear position light (red light color) – 6 diodes
– front position light (white light color) – 6 diodes
– side marker light (orange light color) – 4 diodes

Product is fully hermetic (ingress protection rating IP 68), and the operating temperature range is from -30 degrees C to +50 degrees C.

Ensure your safety on the road! Identify your vehicle with LED new arrivals by #Horpol!

Dane techniczne

Light group
HOR 134
Light category
marker
LED light
yes
LED quantity
16
Rear position light
yes
Front position light
yes
Side marker light
yes
Arm
yes
Side
right
Supply voltage
12/24 V
Power rating
1,9 W
Cable
2×0,75 mm2; cable length 0,6 m
Operating temperature range
from -30°C to +50°C
Ingress protection rating
IP 68
