Home Oferta Trailers and tow trucks Marker light LD 162

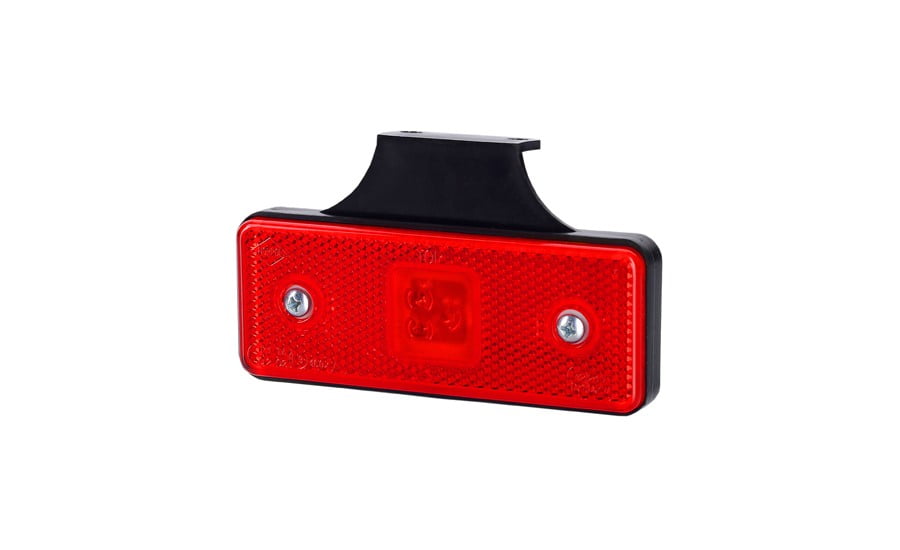

Marker light with reflective device, rectangular with a holder and fixing behind the lamp (red).

Available colors:

  • red
  • orange
  • white

Lamp type: LED

Dane techniczne

Light group
HOR 42
Light category
marker
LED light
yes
LED quantity
3
Supply voltage
12/24 V
Reflecting device
yes
Cable
2×0,75 mm2; cable length 0,3 m
Side
universal
Rear position light
yes
Operating temperature range
from -30°C to +50°C

LD 162

Marker light

Pliki do pobrania

Cała zawartość strony (LD 162.zip) marker-light-ld-162-homologation (marker-light-ld-162-homologation.pdf) marker-light-ld-162-homologation-1 (marker-light-ld-162-homologation-1.pdf) marker-light-ld-162-homologation-2 (marker-light-ld-162-homologation-2.pdf) marker-light-ld-162-technical-drawing (marker-light-ld-162-technical-drawing.pdf)
